Tractor · 2004Unverified

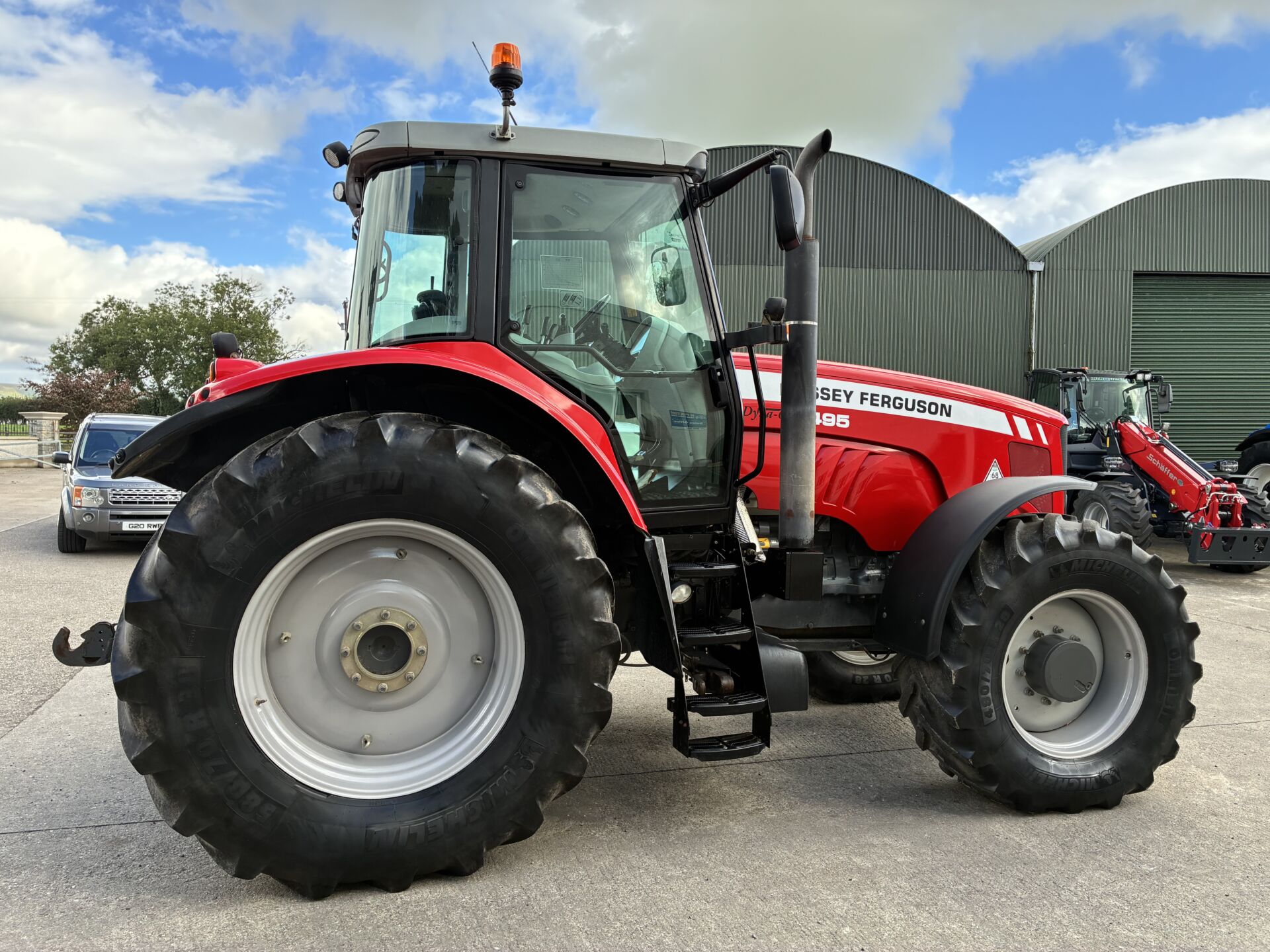

Massey Ferguson 6495

Name: Massey Ferguson 6495
Brand: Massey Ferguson

Massey Ferguson 6495 — Model year 2004-20072008-2012 · 156 hp. Reference specifications; pending source verification.

The Massey Ferguson 6495 is a tractor model with a rating of 156 hp, positioning it among the higher-powered machines in its class. Manufactured from 2004 to 2012, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. The listed operating weight is 14275 to 15465 pounds. It is suitable for tasks covering around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

156 hp

Max power

123.8 kW

Weight

14275 to 15465 pounds

Catalogue coverage

Variants represented

Richest spec table

119 rows

Recorded power

156 hp

Transmissions

24-speed six-speed power shift

Production years

2004-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

6495Dyna-6Reference

7495Dyna-VTReference

Engine

Sisu 6.6L 6-cyl dieselReference

Fuel tank355.0 LReference

Engine136.5 kWReference

Drawbar (tested)101.2 kWReference

SisuReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IIReference

Power136.5 kWReference

Air cleanerdual paper elementsReference

Compression18.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power123.8 kWReference

Power at rated engine speed116.4 kWReference

Max power101.2 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.25x4.70 inchesReference

Compression ratio18.5:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed six-speed power shiftReference

32-speed creeperReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Clutchwet discReference

Six power shift gears in four ranges.Reference

TypecreeperReference

Gears32 forward and reverseReference

Transmission TypePowershiftReference

forward and reverse optionsDyna-6 - 24F and 24RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)115.6 kWReference

PTO (tested)123.8 kWReference

Typeclosed center PFCReference

Pressure200.0 barReference

Valves3 to 5Reference

Total flow109.8 lpmReference

Rear TypeII/IIINReference

Rear lift (at 24"/610mm)6912 kgReference

Front HitchoptionalReference

Front lift3175 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Power at rated PTO speed123.2 kWReference

Dimensions

Wheelbase305 cmReference

Wheelbase301 cmReference

Weight14275 to 15465 poundsReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length502 cmReference

Length500 cmReference

Width304 cmReference

Height249 cmReference

Ground clearance45 cmReference

Shipping6475 kgReference

Shipping6769 kgReference

Operating7014 kgReference

Massey Ferguson 6495 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging amps120Reference

Battery volts12Reference

Battery options2Reference

Total cold cranking amps600 CCAReference

Test results

Diesel 32-speed 4WDJanuary 2204 - June 2004, Link: OCED Tractor Test 2202 fileReference

PTO performanceReference

Fuel use34.4 l/hourReference

Fuel use36.3 l/hourReference

Fuel use34.8 l/hourReference

Drawbar performanceReference

Fuel use37.5 l/hourReference

Gear 2LA used for power test.Reference

Max pull6912 kgReference

Gear 2TB used for pull test.Reference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

Differential lockelectro-hydraulic front and rearReference

SCV controlJoystickReference

Rear Axle TypeBarReference

Capacities

Capacity402 ciReference

PTO

PTO Power155 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)39 gpmReference

Hydraulics Typeclosed center pressure flow compensating (PFC)Reference

Maximum operating pressure2,900 psiReference

Remote Valves3 to 5 ValvesReference

Rear Hitch category (SAE designation)Category II/IIINReference

Rear Hitch Sensing Typelower-link draft sensingReference

Front Hitch category (SAE designation)Category optionalReference

Dimensions & weight

Height Over Cab304.8 cmReference

Overall Length543.6 cmReference

Overall Width233.4 cmReference

Overall weight6,486.4 kgReference

Rear Axle Length297.2 cmReference

Wheels & tyres

Rear Wheel Type18.4R42Reference

Rear wheel tread range60 to 119 inchesReference

Front Wheel Type11.00x16Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
