Tractor · 2008Unverified

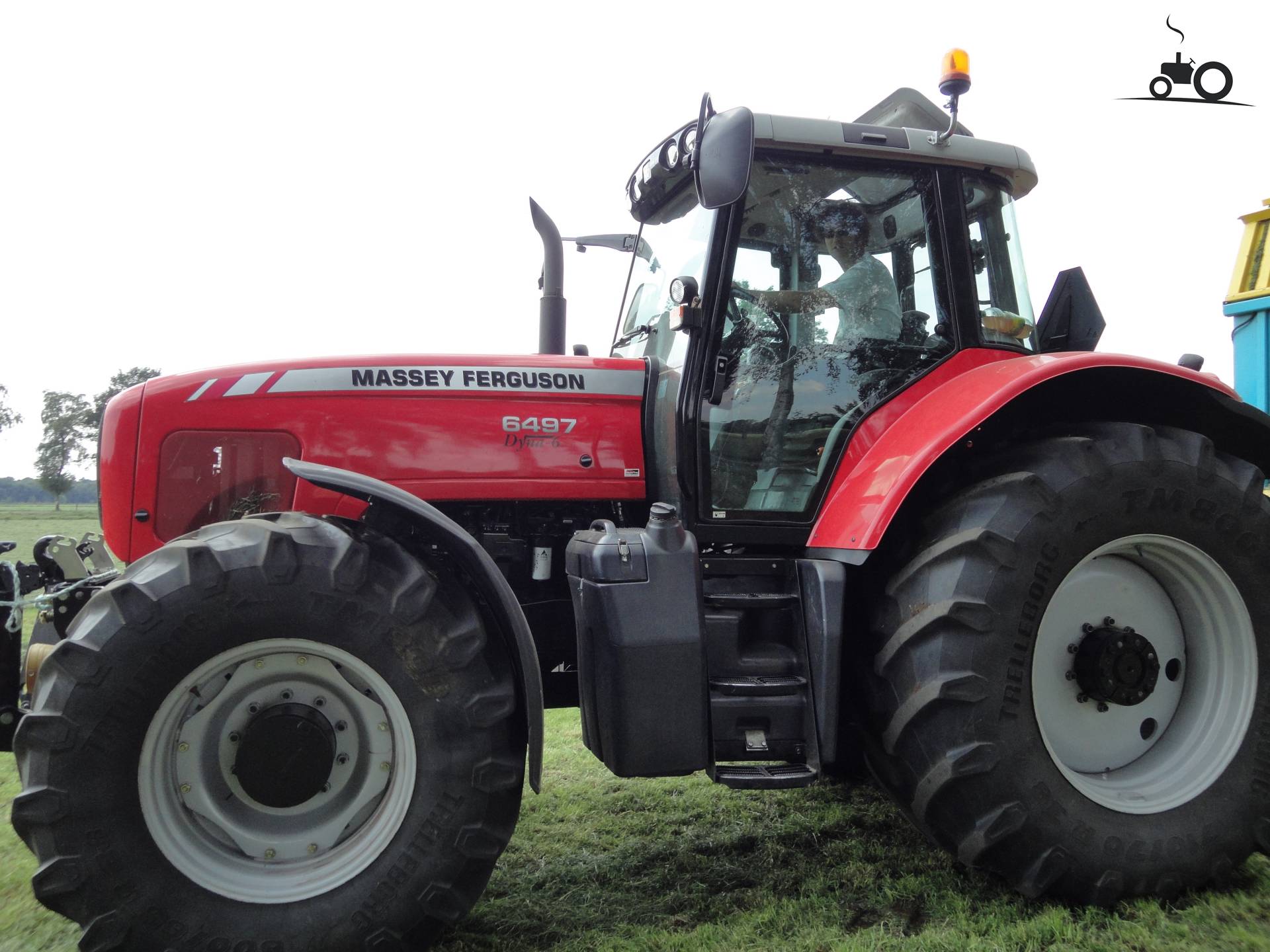

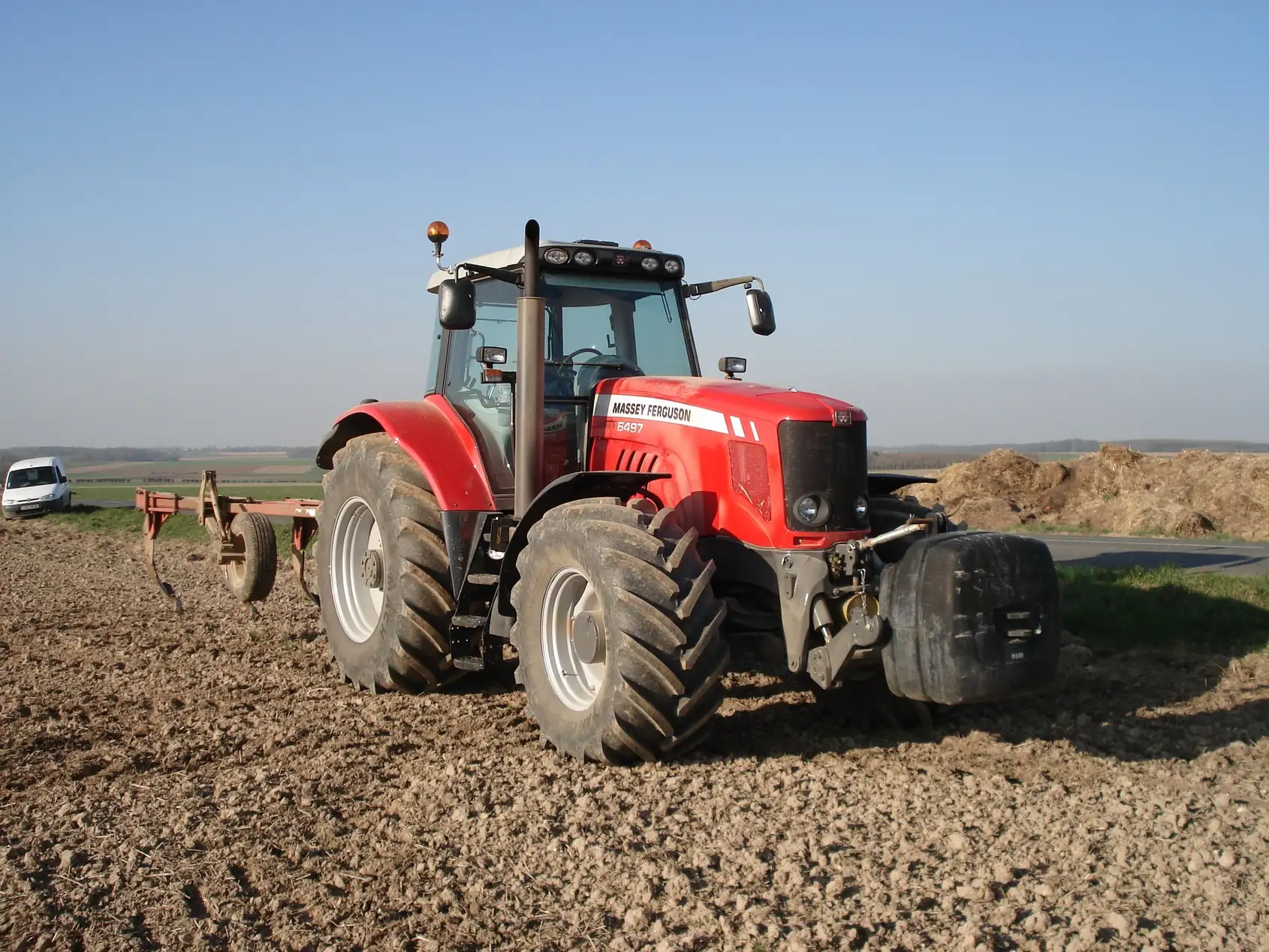

Massey Ferguson 6497

Name: Massey Ferguson 6497
Brand: Massey Ferguson

Massey Ferguson 6497 — Row-Crop tractor · 200 hp. Reference specifications; pending source verification.

The Massey Ferguson 6497 is a tractor rated at 200 hp, positioning it within the higher-powered category of its class. Manufactured between 2008 and 2012, this model is powered by a 6-cylinder turbocharged diesel liquid-cooled engine, which drives through four-wheel drive via a powershift transmission. The 6497 has a listed weight of 17200 to 17460 pounds. It is designed to handle land areas of approximately 600 to 1500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

200 hp

Max power

111.7 kW

Weight

17200 to 17460 pounds

Catalogue coverage

Variants represented

Richest spec table

127 rows

Recorded power

200 hp

Transmissions

24-speed partial power shift

Production years

2008-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $110 in 750 with 2009Reference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Variants

6497Dyna-6Reference

7497Dyna-VTReference

Engine

SisuDiesel 7.4L 6-cyl dieselReference

Fuel tank355.0 LReference

Engine (gross)149.1 kWReference

Drawbar (tested)111.7 kWReference

SisuDiesel 74 CTAReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsTier IIIReference

Power (gross)149.1 kWReference

Air cleanerdryReference

Compression17.5:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Power at rated engine speed136.0 kWReference

Max power111.7 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.252x5.276 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed partial power shiftReference

TransmissionDyna-6Reference

Typepartial power shiftReference

Gears24 forward and reverseReference

Clutchhydraulic wet discReference

Six power shift gears in four ranges.Reference

Transmission TypeSemi-PowershiftReference

forward and reverse optionsDyna-6 - 24-F and 24-RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)123.0 kWReference

PTO (tested)136.0 kWReference

Typeclosed center pressure flow compensating (PFC)Reference

Pressure200.0 barReference

Valves3 to 5Reference

Total flow109.8 lpmReference

Total flow147.6 lpmReference

Rear TypeIII/IIINReference

Controllower-link draft sensingReference

Rear lift (at 24"/610mm)7121 kgReference

Front HitchoptionalReference

Front lift3991 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed155.8 kWReference

Dimensions

Wheelbase299 cmReference

Weight17200 to 17460 poundsReference

Front tire14.9R30Reference

Rear tire18.4R42Reference

Standard tires (ag)Front: 14.9R30. Rear: 18.4R42Reference

Length543 cmReference

Width249 cmReference

Height (cab)304 cmReference

Clearance (drawbar)45 cmReference

Bar rear axle2489 mmReference

Bar rear axle2997 mmReference

Front tread152 to 223 cmReference

Rear tread152 to 302 cmReference

Shipping7801 kgReference

Operating7919 kgReference

Ballasted10850 kgReference

Massey Ferguson 6497 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Batteries2Reference

Battery CCA600Reference

Battery volts12Reference

Battery options2Reference

Total cold cranking amps600 CCAReference

Test results

Diesel 24-speed 4WDApril 2007 - May 2007, Link: OCED Tractor Test 2389 fileReference

PTO performanceReference

Fuel use42.8 l/hourReference

Fuel use45.8 l/hourReference

Drawbar performanceReference

Fuel use42.0 l/hourReference

Gear 3C used for power test.Reference

Max pull8935 kgReference

Gear 1E used for pull test.Reference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rear Axle Type299.7 cmReference

Capacities

Capacity449 ciReference

PTO

PTO Power165 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)39 gpmReference

Hydraulics Typeclosed center pressure flow compensating (PFC)Reference

Maximum operating pressure2,900 psiReference

Remote Valves3 to 5 ValvesReference

Rear Hitch category (SAE designation)Category III/IIINReference

Rear Hitch Sensing Typelower-link draft sensingReference

Front Hitch category (SAE designation)optionalReference

Dimensions & weight

Height Over Cab304.8 cmReference

Overall Length543.6 cmReference

Overall Width249.4 cmReference

Drawbar clearance45.2 cmReference

Overall weight7,801.8 kgReference

Wheels & tyres

Rear Wheel Type18.4R42Reference

Rear wheel tread range60 to 119 inchesReference

Front Wheel Type14.9R30Reference

Front Wheel tread range60 to 88 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
