Tractor · 2003Unverified

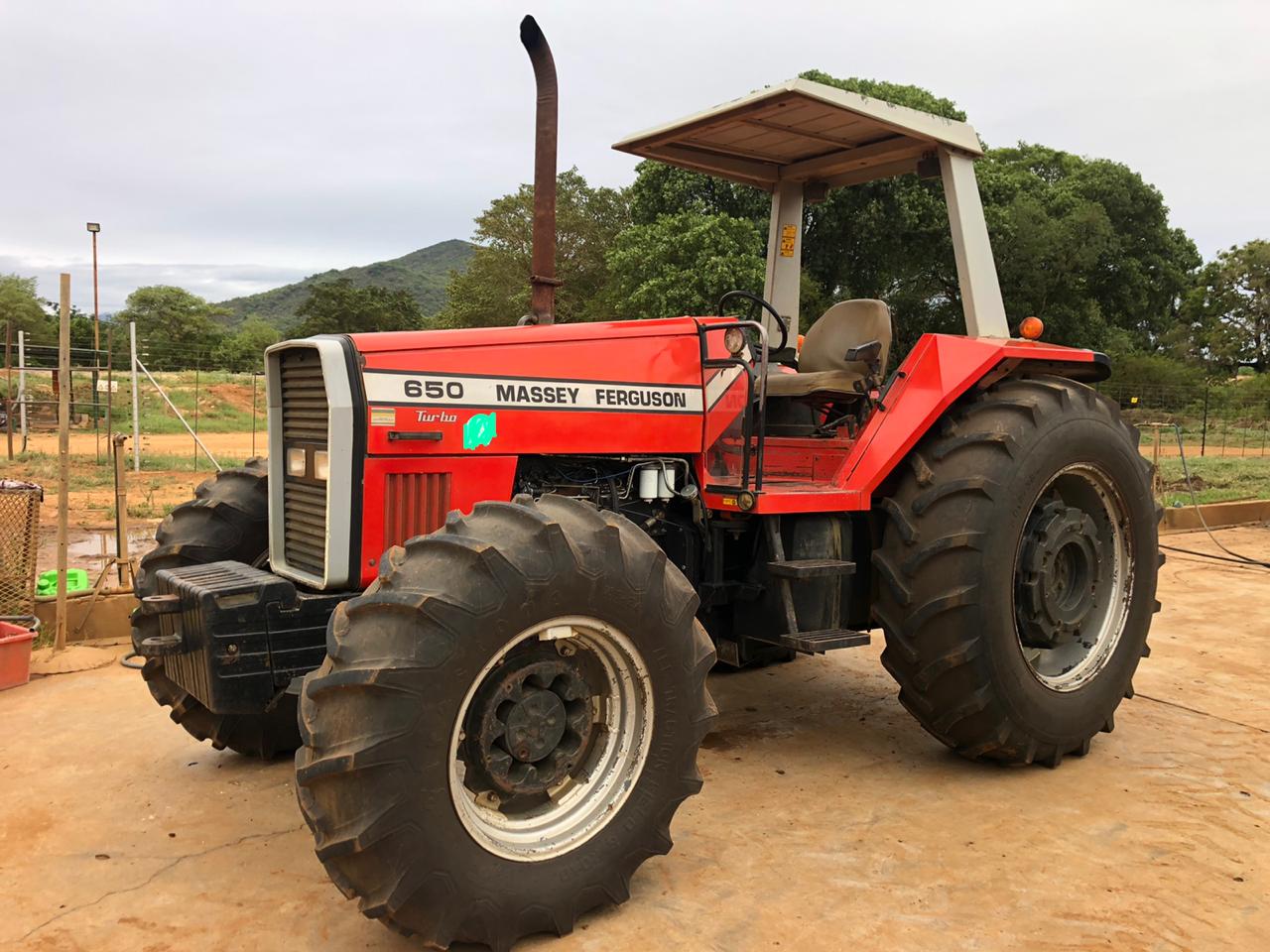

Massey Ferguson 650
Massey Ferguson 650 — 600 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
5426 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Two-post ROPS.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank325.9 LReference
Engine102.9 kWReference
Perkins 1006.6TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsTier 0Reference
Power102.9 kWReference
Rated RPM2200Reference
Torque509.9 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronizedReference
TypesynchronizedReference
Gears12 forward and 4 reverseReference
Clutch345mm cerametallic discReference
PTO & Hydraulics
PTO (claimed)48.3 kWReference
Pressure210.0 barReference
Pump flow50.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3999 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1900Reference
Dimensions
Wheelbase292 cmReference
Weight5426 kgReference
Front tire14.9-28Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 14.9-28. Rear: 18.4-38Reference
Length462 cmReference
Height (ROPS)367 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
