Tractor · 2014Unverified

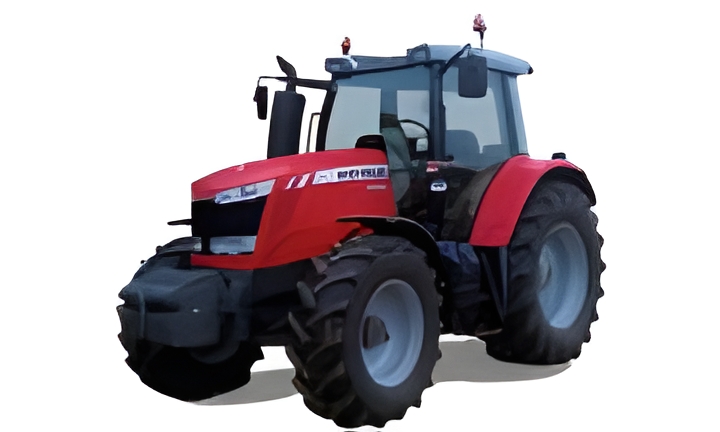

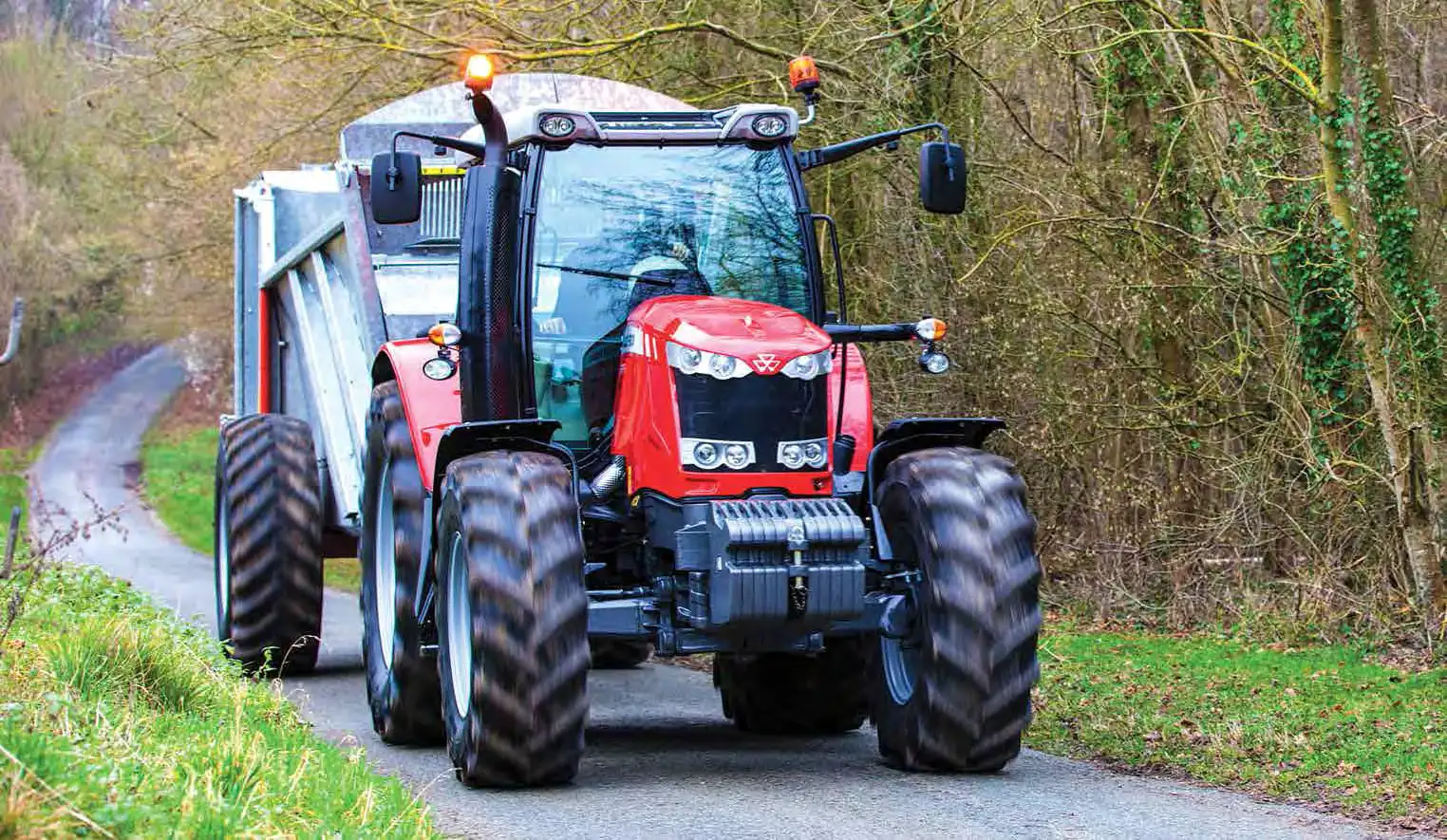

Massey Ferguson 6614

Name: Massey Ferguson 6614
Brand: Massey Ferguson

Massey Ferguson 6614 — Utility tractor · 140 hp. Reference specifications; pending source verification.

The Massey Ferguson 6614 is a tractor with a rated power of 140 hp, positioning it at the higher end of its class. It was produced between 2014 and 2016. The 6614 is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its operating weight is listed as 5670 kg, making it suitable for operations covering 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Max power

140 hp

Weight

5670 kg

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

140 hp

Recorded weight

5670 kg

Transmissions

continuously variable transmission (CVT)

Production years

2014-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Original price was $141,550 in 2014 with Dyna-VT, DeluxeReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic front and rearReference

Steeringhydraulic powerReference

Hydraulic wet disc brakesReference

Cab standard with air conditioning. Optional deluxe cab with mechanical suspension. Optional premium cab with active hydraulic suspension.Reference

Variants

MT475Dsimilar Challenger modelReference

Engine

AGCO Power 4.9L 4-cyl dieselReference

Fuel tank230.9 LReference

Exhaust fluid (DEF)34.8 LReference

Engine96.9 kWReference

Engine (max)104.4 kWReference

AGCO PowerReference

wastegate turbocharger and intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.9 LReference

Bore/Stroke108 x 134 mmReference

EmissionsInterim Tier IVReference

Emission controlslective catalytic reduction with diesel oxidation catalyst (DOC) (SCR)Reference

Power96.9 kWReference

Maximum Power104.4 kWReference

Fuel systemhigh pressure common railReference

Cooling systemelectronically controlled viscous fanReference

Air cleanerdual dry elementReference

Pre-heatingblock heaterReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.252x5.276 inchesReference

Transmission

continuously variable transmission (CVT)Reference

TransmissionDyna-VTReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

forward and reverse optionsDyna-VT - infinite forward and infinte reverseReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)74.6 kWReference

Typeopen centerReference

TypeTwin Flow open center (optional)Reference

Typeclosed center (optional)Reference

Valvesup to 4Reference

SCV flow56.8 lpmReference

SCV flow98.4 lpmReference

SCV flow109.8 lpmReference

Rear TypeIIIReference

Controlelectronic draft controlReference

Rear lift (at 24"/610mm)5171 kgReference

Front lift3197 kgReference

DrawbarCat. 2Reference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/540/1000/1000EReference

Dimensions

Wheelbase266 cmReference

Weight5670 kgReference

Front tire380/85R28Reference

Rear tire460/85R38Reference

Ag front380/85R28Reference

Ag rear460/85R38Reference

Length469 cmReference

Height (cab)293 cmReference

Front axle4WDReference

Front axleSuspended 4WDReference

Bar rear axle94 by 2286 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Batteries2Reference

Battery CCA600Reference

Battery volts12Reference

Battery options2Reference

Total cold cranking amps600 CCAReference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCat. 2Reference

Rear Axle TypeBar : 3.74 by 90 inchesReference

Front Axle Type4WD | Suspended 4WDReference

Capacities

Capacity299 ciReference

Diesel exhaust fluid (DEF) tank34.8 LReference

Power

Max Power140 hpReference

Rated Power130 hpReference

PTO

PTO Power100 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet disc brakesReference

Steering typehydraulic powerReference

Hydraulics

Remote Valvesup to 4 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch Sensing Typeelectronic draft controlReference

Dimensions & weight

Height Over Cab293.4 cmReference

Overall Length469.1 cmReference

Overall weight5,669.9 kgReference

Wheels & tyres

Rear Wheel Type460/85R38Reference

Front Wheel Type380/85R28Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
