Tractor · 2014Unverified

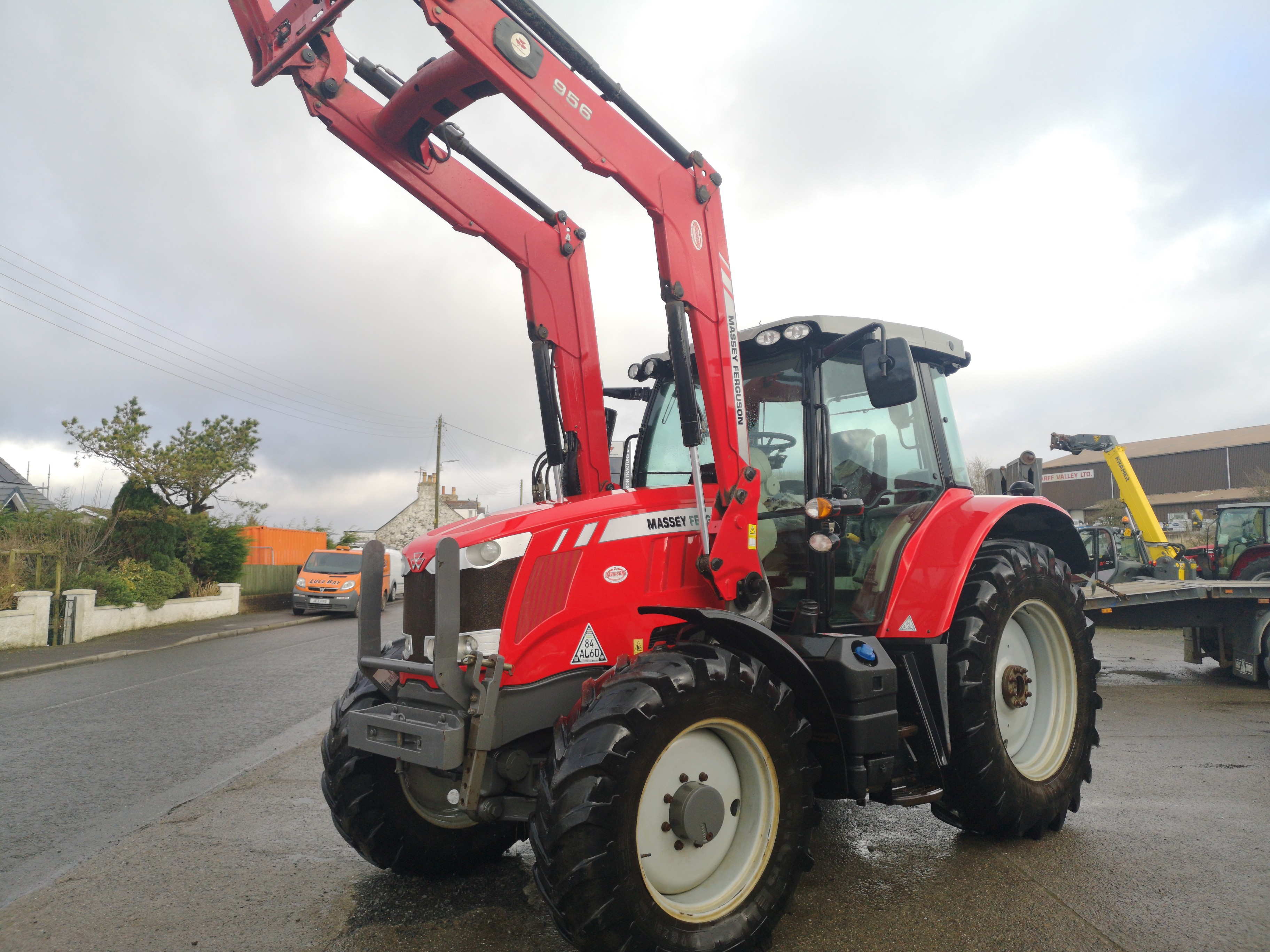

Massey Ferguson 6615
Massey Ferguson 6615 — Utility tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
5670 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Original price was $147,215 in 2014 with Dyna-VT, DeluxeReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic front and rearReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Cab standard with air conditioning. Optional deluxe cab with mechanical suspension. Optional premium cab with active hydraulic suspension.Reference
Variants
MT485Dsimilar Challenger modelReference
Engine
AGCO Power 4.9L 4-cyl dieselReference
Fuel tank230.9 LReference
Exhaust fluid (DEF)34.8 LReference
Engine100.7 kWReference
AGCO PowerReference
wastegate turbocharger and intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsInterim Tier IVReference
Emission controlslective catalytic reduction with diesel oxidation catalyst (DOC) (SCR)Reference
Power100.7 kWReference
Power104.4 kWReference
Maximum Power108.1 kWReference
Maximum Power111.9 kWReference
Fuel systemhigh pressure common railReference
Cooling systemelectronically controlled viscous fanReference
Air cleanerdual dry elementReference
Pre-heatingblock heaterReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
24-speed six-speed power shiftReference
continuously variable transmission (CVT)Reference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionDyna-VTReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (claimed)85.8 kWReference
Typeopen centerReference
TypeTwin Flow open center (optional)Reference
Typeclosed center (optional)Reference
Valvesup to 4Reference
SCV flow56.8 lpmReference
SCV flow98.4 lpmReference
SCV flow109.8 lpmReference
Rear TypeIIIReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)5171 kgReference
Front lift3197 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540E/540/1000/1000EReference
Dimensions
Wheelbase266 cmReference
Weight5670 kgReference
Front tire380/85R28Reference
Rear tire460/85R38Reference
Ag front380/85R28Reference
Ag rear460/85R38Reference
Length469 cmReference
Height (cab)293 cmReference
Front axle4WDReference
Front axleSuspended 4WDReference
Flange rear axleReference
Bar rear axle82 by 2032 mmReference
Bar rear axle94 by 2286 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240 (twin 120A)Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
