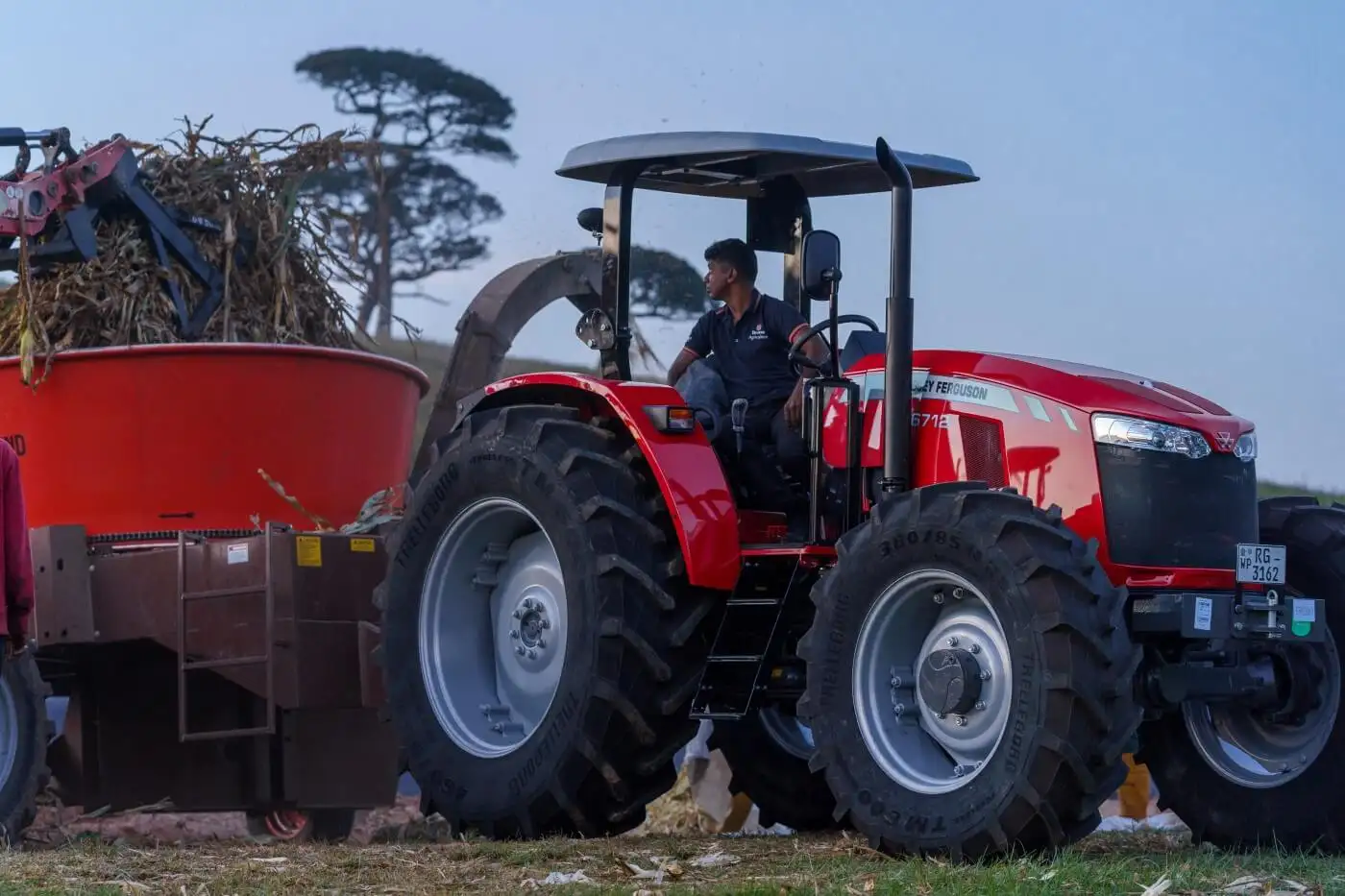

Massey Ferguson 6712

Name: Massey Ferguson 6712
Brand: Massey Ferguson

Massey Ferguson 6712 — Utility tractor · 100 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Weight

8840 to 9017 pounds

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Final drivesinternal planetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional.Reference

Engine

AGCO Power 4.4L 4-cyl dieselReference

Fuel tank145.0 LReference

Engine85.8 kWReference

AGCO PowerReference

intercooled turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power85.8 kWReference

Maximum Power89.5 kWReference

Fuel systemhigh-pressure common rail direct injectionReference

Rated RPM2200Reference

Torque691.6 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed power shuttleReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)74.6 kWReference

Typeopen centerReference

Valves2 or 3Reference

Pump flow57.2 lpmReference

Pump flow98.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Dimensions

Wheelbase249 cmReference

Weight8840 to 9017 poundsReference

Width179 cmReference

ROPS Weight4009 kgReference

Cab Weight4090 kgReference

Flange rear axleReference
