Tractor · 2017Unverified

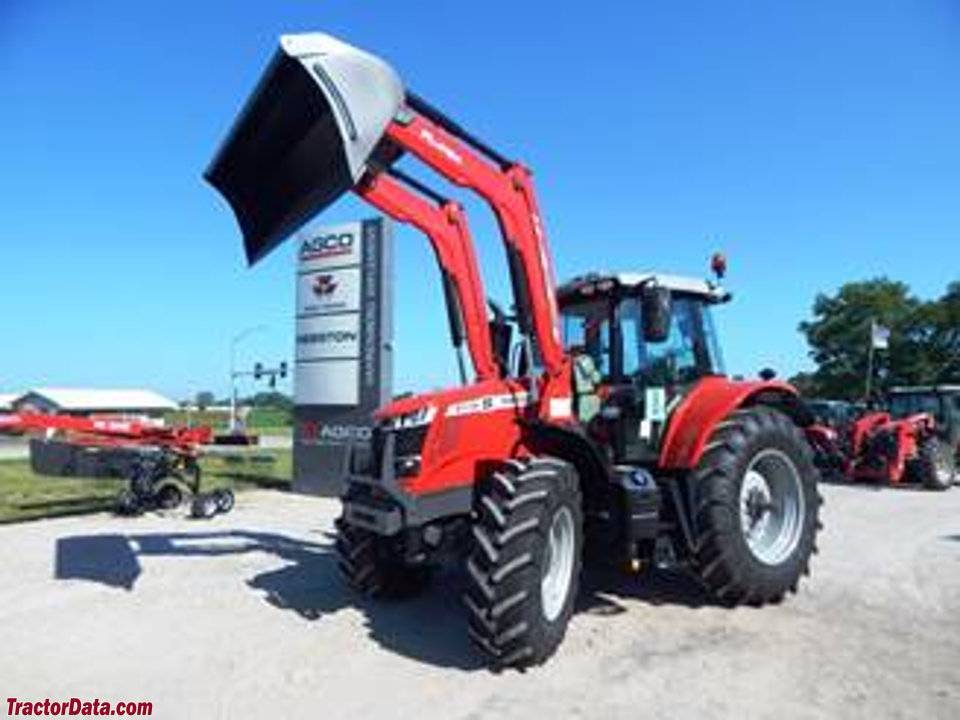

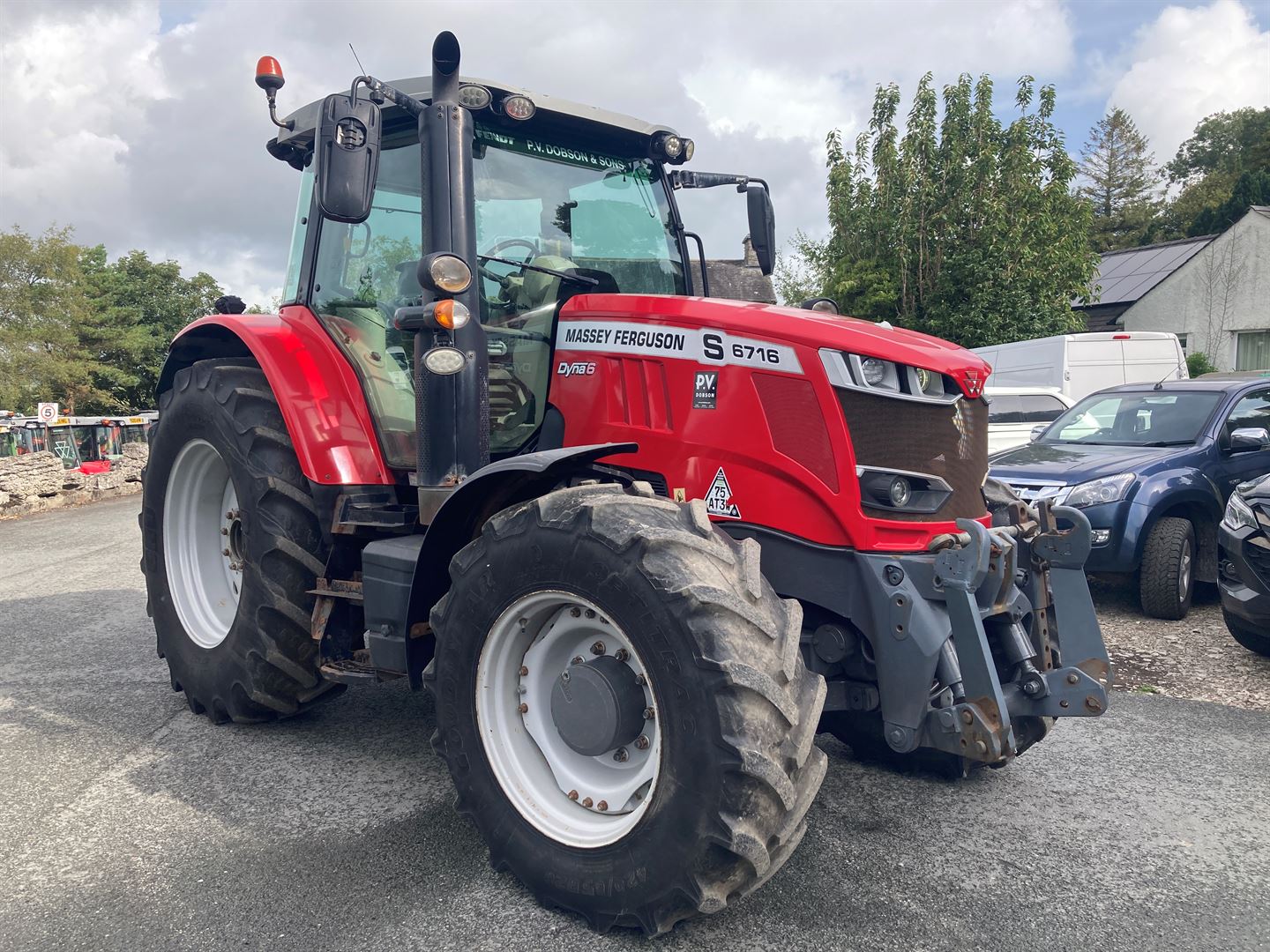

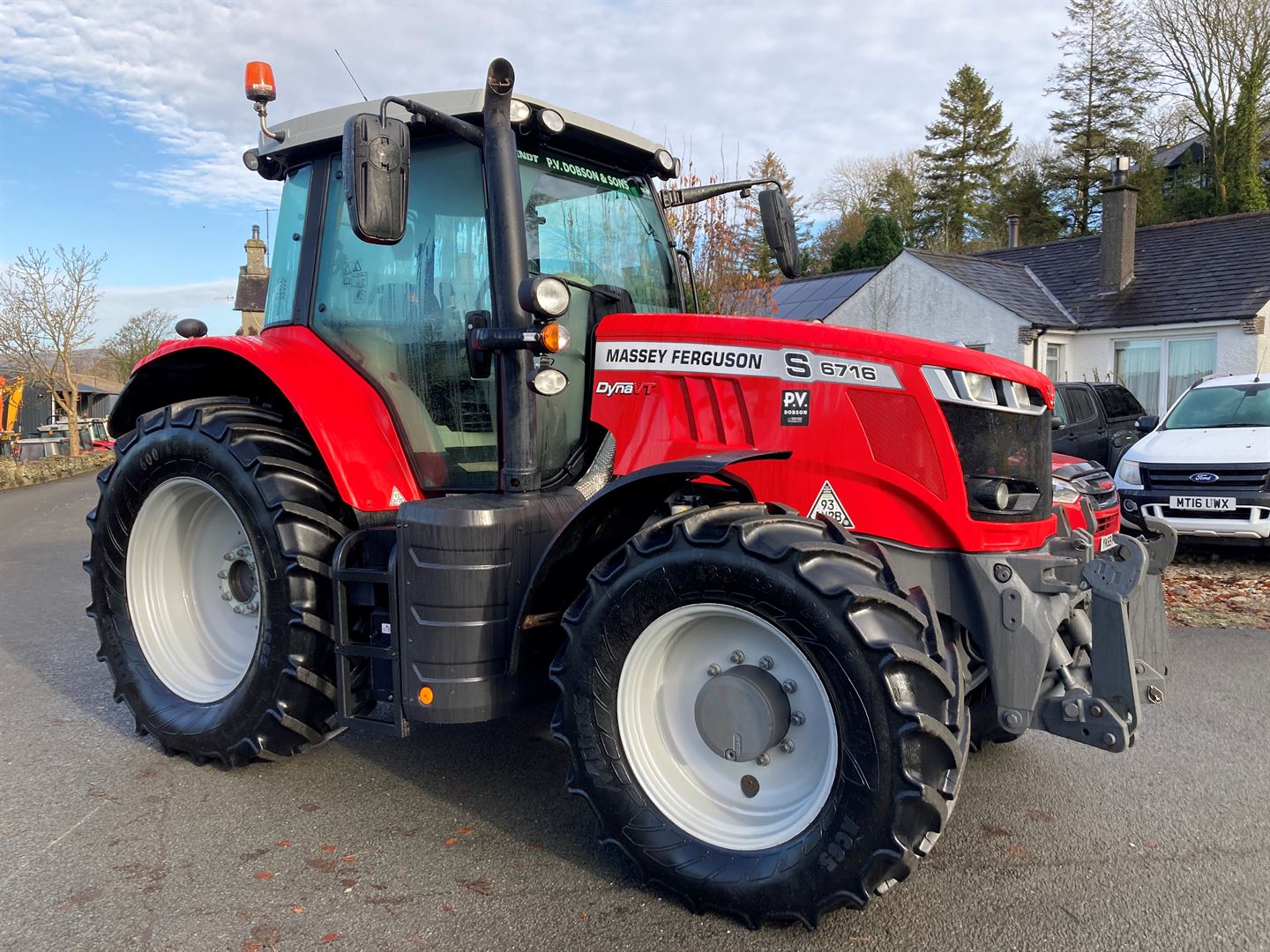

Massey Ferguson 6716S

Name: Massey Ferguson 6716S
Brand: Massey Ferguson

Massey Ferguson 6716S — Utility tractor · 138 hp. Reference specifications; pending source verification.

The Massey Ferguson 6716S is a tractor model with a power rating of approximately 138 hp, positioning it at the upper end of its class. Produced between 2017 and 2021, this model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. The tractor's operating weight is listed as 6999 kg, with an operating capacity of 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

138 hp

Max power

95.5 kW

Weight

6999 kg

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

138 hp

Recorded weight

6999 kg

Transmissions

16-speed four-speed power shift

Production years

2017-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning. Available cab suspension.Reference

Variants

MT495Esimilar Challenger modelReference

Engine

AGCO Power 4.9L 4-cyl dieselReference

Fuel tank253.6 LReference

Exhaust fluid (DEF)29.9 LReference

Engine111.9 kWReference

Drawbar (tested)95.5 kWReference

AGCO Power 49 AWFReference

intercooled turbocharged dieselReference

4-cylinder 16-valveReference

liquid-cooled inlineReference

Displacement4.9 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage VReference

Emission controlSCR/DEF/DOCReference

Power111.9 kWReference

Maximum Power119.3 kWReference

Fuel systemhigh-pressure common rail direct injectionReference

Rated RPM2100Reference

Torque790.5 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Power at rated engine speed103.2 kWReference

Max power95.5 kWReference

Transmission

16-speed four-speed power shiftReference

24-speed six-speed power shiftReference

continuously variable transmission (CVT)Reference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Clutchwet discReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

TransmissionDyna-VTReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)104.4 kWReference

PTO (tested)103.2 kWReference

Typeopen centerReference

Typeclosed centerReference

Pressure200.0 barReference

Rear valves5Reference

Front valves2Reference

Pump flow99.9 lpmReference

Pump flow110.1 lpmReference

Pump flow189.2 lpmReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)5100 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540E@1530Reference

Engine RPM540@1980Reference

Engine RPM1000E@1570Reference

Engine RPM1000@2030Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1920Reference

Power at rated PTO speed114.5 kWReference

Dimensions

Wheelbase266 cmReference

Weight6999 kgReference

Length492 cmReference

Width182 cmReference

Height (cab)302 cmReference

Flange rear axleReference

Bar rear axleReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Charging amps240Reference

Battery volts12Reference

Test results

Diesel Dyna-VT 4WDOctober 2016 - November 2016, Link: OCED Tractor Test 3035 fileReference

PTO performanceReference

Fuel use32.2 l/hourReference

Fuel use33.7 l/hourReference

Drawbar performanceReference

Fuel use34.4 l/hourReference

Pull at 7.69KPHReference

Max pull6924 kgReference

Pull at 3.57KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
