Tractor · 2017Unverified

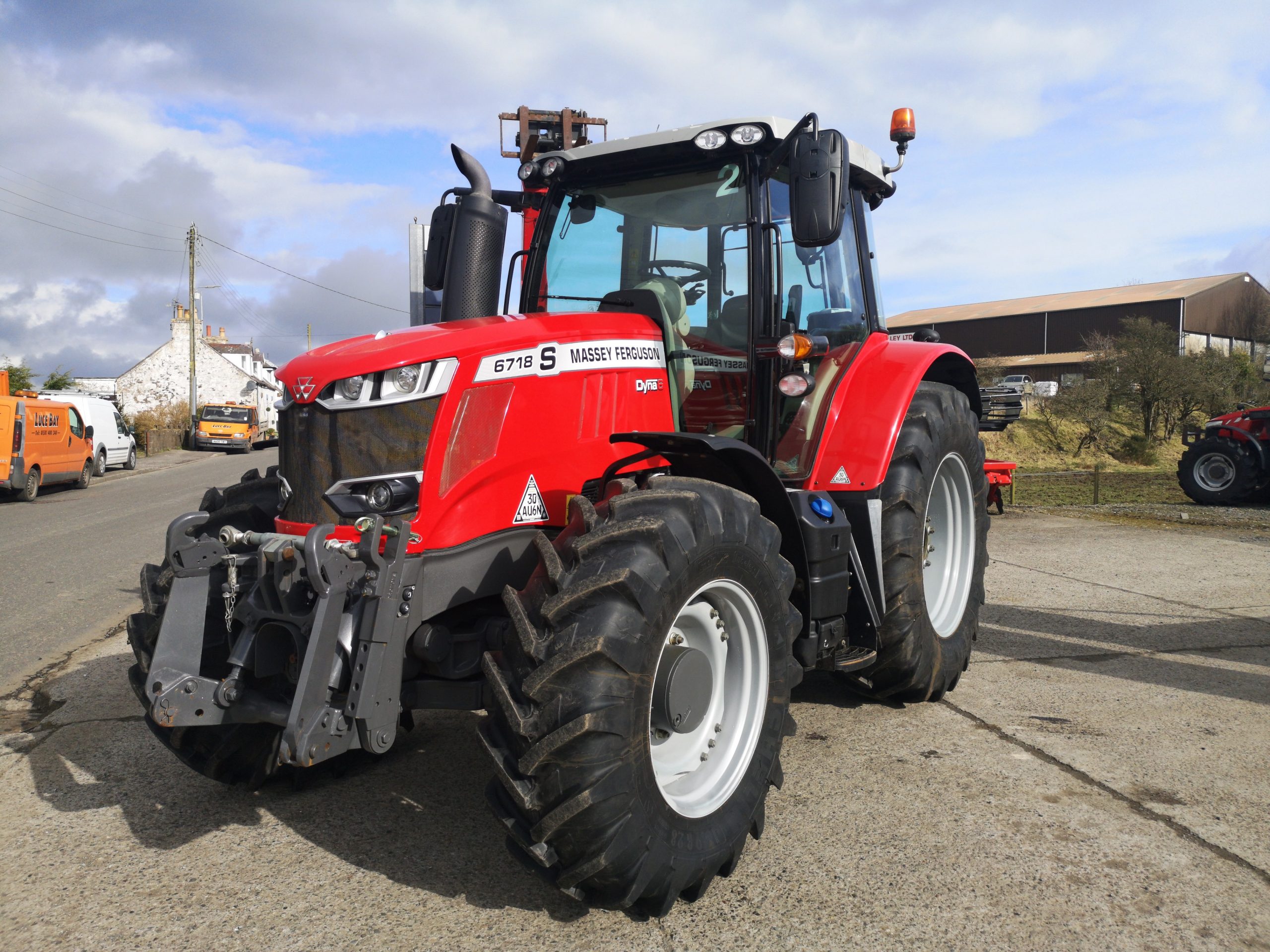

Massey Ferguson 6718S
Massey Ferguson 6718S — Utility tractor · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Weight
6999 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning. Available cab suspension.Reference
Engine
AGCO Power 4.9L 4-cyl dieselReference
Fuel tank253.6 LReference
Exhaust fluid (DEF)29.9 LReference
Engine124.5 kWReference
AGCO Power 49 AWFReference
intercooled turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooled inlineReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsStage VReference
Emission controlSCR/DEF/DOCReference
Power124.5 kWReference
Maximum Power130.5 kWReference
Fuel systemhigh-pressure common rail direct injectionReference
Rated RPM2100Reference
Torque840.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed six-speed power shiftReference
continuously variable transmission (CVT)Reference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Clutchwet discReference
TransmissionDyna-VTReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)115.6 kWReference
Typeopen centerReference
Typeclosed centerReference
Pressure200.0 barReference
Rear valves5Reference
Front valves2Reference
Pump flow99.9 lpmReference
Pump flow110.1 lpmReference
Pump flow189.2 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540E@1530Reference
Engine RPM540@1980Reference
Engine RPM1000E@1570Reference
Engine RPM1000@2030Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1920Reference
Dimensions
Wheelbase266 cmReference
Weight6999 kgReference
Length492 cmReference
Width182 cmReference
Height (cab)302 cmReference
Max weight12500 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
