Tractor · 2003Unverified

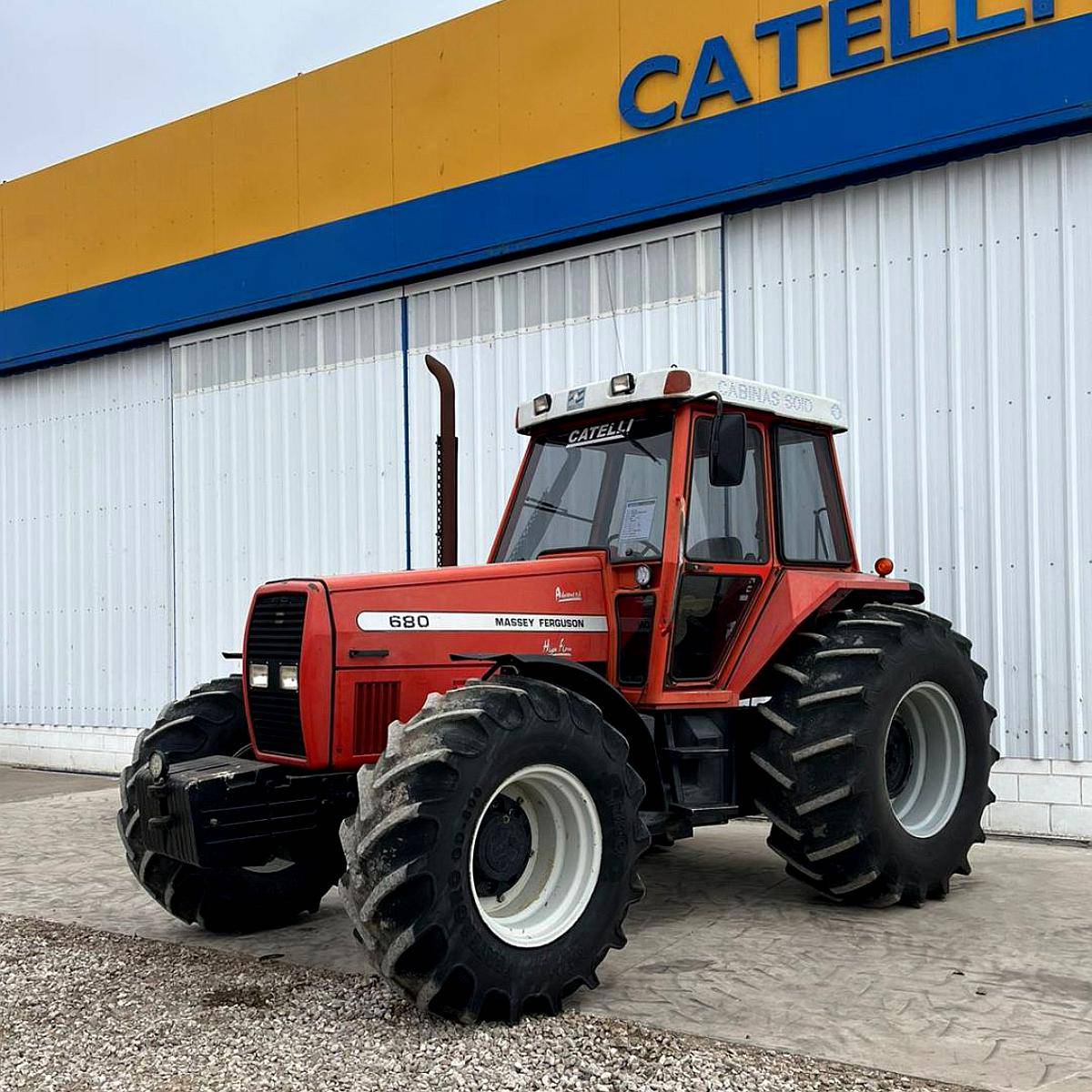

Massey Ferguson 680
Massey Ferguson 680 — 600 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
13228 to 14054 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Two-post ROPS. Cab optional.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank445.1 LReference
Engine123.0 kWReference
Perkins 1006.6TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsTier 0Reference
Power123.0 kWReference
Rated RPM2200Reference
Torque649.5 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronizedReference
TypesynchronizedReference
Gears12 forward and 5 reverseReference
Clutch330mm cerametallic discsReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Pressure210.0 barReference
Pump flow60.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4500 kgReference
Rear lift5499 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2160Reference
Engine RPM1000@2160Reference
Dimensions
Wheelbase294 cmReference
Weight13228 to 14054 poundsReference
Front tire14.9-28Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 14.9-28. Rear: 18.4-38Reference
Length485 cmReference
Height (ROPS)294 cmReference
Height (cab)297 cmReference
ROPS Weight6000 kgReference
Cab Weight6374 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
