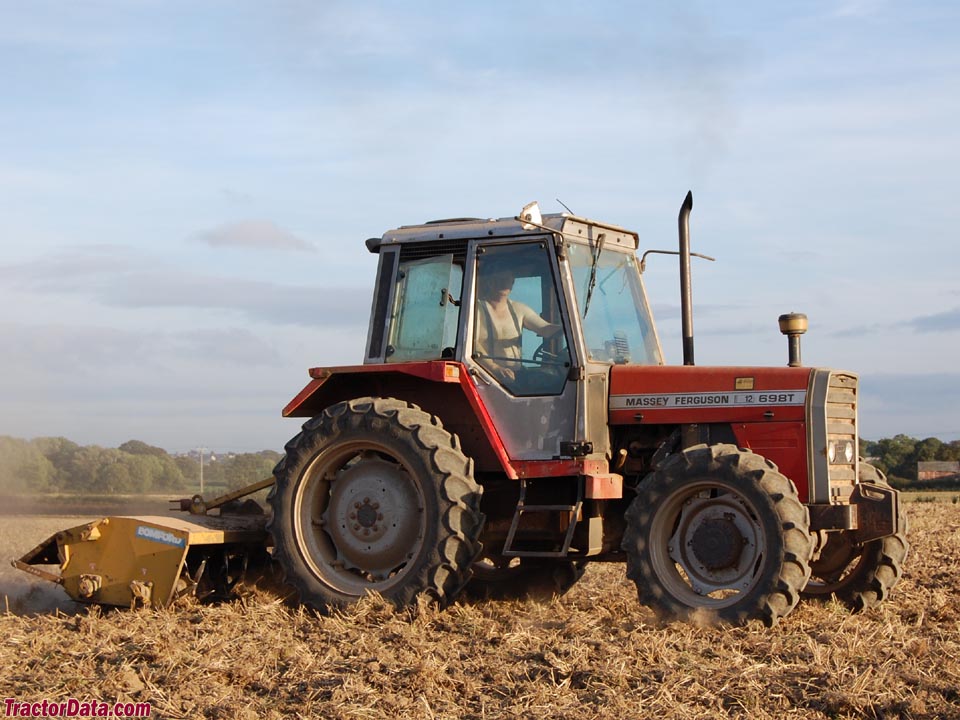

The Massey Ferguson 698T is a tractor, manufactured from 1985 to 1987. It is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which is paired with a four-wheel drive system and a hydrostatic transmission. The tractor is suitable for various operations. The UK and US specifications are detailed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Catalogue coverage
Variants represented
2
Richest spec table
20 rows
Transmissions
12-speed
Production years
1985-1987
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Perkins A4.236Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
12-speedReference
TransmissionMulti-PowerReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Rear PTO Type1000Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
