Tractor · 2009Unverified

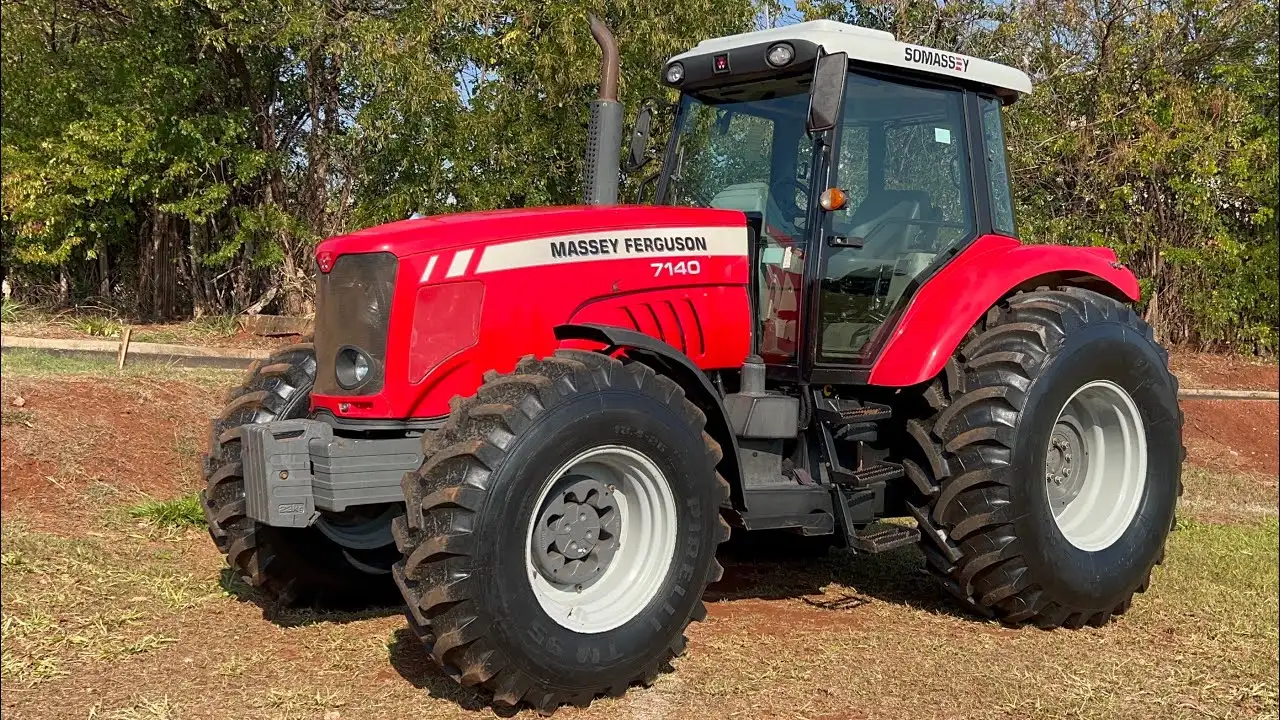

Massey Ferguson 7140

Name: Massey Ferguson 7140
Brand: Massey Ferguson

Massey Ferguson 7140 — Row-Crop tractor · 140 hp. Reference specifications; pending source verification.

The Massey Ferguson 7140 is a tractor with a rated power output of 140 hp, placing it at the powerful end of its class. Introduced in 2009, this model features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its operating weight is listed as 7702 kg, and it is suitable for operations ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Max power

140 hp

Weight

16,980 Ibs (Maximum ballast level)

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

140 hp

Recorded weight

7702 kg

Transmissions

12-speed synchromesh

Production years

2009-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Canoas, BrazilReference

Four-wheel driveReference

Final drivesplanetaryReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS with canopy. Cab available with air-conditioning.Reference

Engine

AGCO SISU Power 6.6L 6-cyl dieselReference

Fuel tank420.1 LReference

Engine104.4 kWReference

AGCO SISU Power 620 DSReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Power104.4 kWReference

Rated RPM2200Reference

Torque540.1 NmReference

Torque RPM1400Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed180.7 kgReference

Cooling systemliquid-cooledReference

Transmission

12-speed synchromeshReference

TypesynchromeshReference

Gears12 forward and 5 reverseReference

Transmission TypeSync ShuttleReference

forward and reverse options12 F and 5 RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

Typeload sensingReference

Pressure195.0 barReference

Valves3Reference

Pump flow88.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift4699 kgReference

Rear PTO Type540/1000Reference

Engine RPM540@2143Reference

Engine RPM1000@2160Reference

Dimensions

Wheelbase307 cmReference

Front tire18.4-26Reference

Rear tire20.8-38Reference

Standard tires (ag)Front: 18.4-26. Rear: 20.8-38Reference

Optional tires (ag)Front: 14.9-24. Rear: 23.1-26Reference

Optional tires (ag)Front: 14.9-26. Rear: 23.1-30Reference

Optional tires (ag)Front: 14.9-28. Rear: 23.1-30Reference

Optional tires (ag)Front: 14.9-26. Rear: 18.4-34Reference

Optional tires (ag)Front: 14.9-28. Rear: 18.4-38Reference

Optional tires (ag)Front: 18.4-26. Rear: 18.4-38Reference

Optional tires (ag)Front: 16.9-28. Rear: 24.5-32Reference

Optional tires (ag)Front: 540/65-R28. Rear: 680/75-R32Reference

Length508 cmReference

Height313 cmReference

Cab Ballasted weight7702 kgReference

ROPS Ballasted weight7479 kgReference

Electrical

Charging amps120Reference

Charging volts12Reference

Battery volts12Reference

Battery AH170Reference

Battery size170 AHReference

Speeds

With 23.1-30R1 rear tires.Reference

General

Make & ModelMassey FergusonReference

Country of manufacturerBrazilReference

Capacities

Capacity402.8 ciReference

Power

Max Power140 hpReference

PTO

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540@2,143 | 1,000@2,160 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeload sensingReference

Maximum operating pressure2,828 psiReference

Remote Valves3 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity4,699.2 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Height313.9 cmReference

Overall Length508 cmReference

Weight16,980 Ibs (Maximum ballast level)Reference

Wheels & tyres

Rear Wheel Type20.8-38Reference

Front Wheel Type18.4-26Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
