Tractor · 2009Unverified

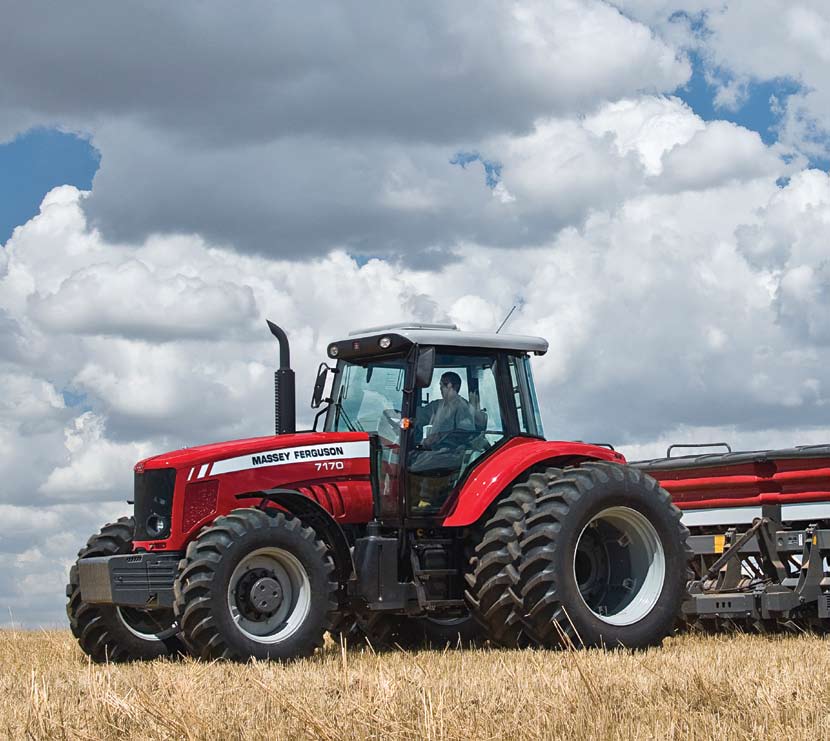

Massey Ferguson 7170

Name: Massey Ferguson 7170
Brand: Massey Ferguson

Massey Ferguson 7170 — Row-Crop tractor · 170 hp. Reference specifications; pending source verification.

The Massey Ferguson 7170 is a tractor rated at approximately 170 horsepower, placing it at the higher end of its class. It was produced in 2009. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. It has an operating weight of 9348 kg, making it suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

170 hp

Max power

170 hp

Weight

20,610 Ibs (Maximum ballast level)

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

170 hp

Recorded weight

9348 kg

Transmissions

12-speed synchromesh

Production years

2009-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Canoas, BrazilReference

Four-wheel driveReference

Final drivesplanetaryReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS with canopy. Cab available with air-conditioning. Auto Guide 3000 (optional); AGCOCOMMAND (optional)Reference

Engine

AGCO SISU Power 6.6L 6-cyl dieselReference

Fuel tank420.1 LReference

Engine126.8 kWReference

AGCO SISU Power 620 DSReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Power126.8 kWReference

Rated RPM2200Reference

Torque680.0 NmReference

Torque RPM1400Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed227.5 kgReference

Cooling systemliquid-cooledReference

Transmission

12-speed synchromeshReference

TypesynchromeshReference

Gears12 forward and 5 reverseReference

Transmission TypeSync ShuttleReference

forward and reverse options12 F and 5 RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Valves4Reference

Pump flow138.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift4699 kgReference

Rear lift5502 kgReference

Rear PTO Type540/1000Reference

Engine RPM540@2143Reference

Engine RPM1000@2160Reference

Dimensions

Wheelbase307 cmReference

Front tire16.9-28Reference

Rear tire20.8-38Reference

Standard tires (ag)Front: 16.9-28. Rear: 20.8-38Reference

Optional tires (ag)Front: 14.9-28. Rear: 23.1-30Reference

Optional tires (ag)Front: 18.4-26. Rear: 24.5-32Reference

Optional tires (ag)Front: 14.9-28. Rear: 18.4-38Reference

Optional tires (ag)Front: 18.4-26. Rear: 18.4-38Reference

Optional tires (ag)Front: 18.4-26. Rear: 20.8-38Reference

Optional tires (ag)Front: 540/65R28. Rear: 650/75R32Reference

Optional tires (ag)Front: 600/60-30.5. Rear: 710/65-38Reference

Length508 cmReference

Height313 cmReference

Cab Ballasted weight9348 kgReference

ROPS Ballasted weight9130 kgReference

Electrical

Charging amps120Reference

Charging volts12Reference

Battery volts12Reference

Battery AH170Reference

Battery size170 AHReference

Speeds

With 20.8-38R1 rear tires.Reference

General

Make & ModelMassey FergusonReference

Country of manufacturerBrazilReference

Capacities

Capacity402.8 ciReference

Power

Max Power170 hpReference

PTO

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540@2,143 | 1,000@2,160 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeload sensingReference

Maximum operating pressure2,900 psiReference

Remote Valves4 ValvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity5,502.1 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Height313.9 cmReference

Overall Length508 cmReference

Weight20,610 Ibs (Maximum ballast level)Reference

Wheels & tyres

Rear Wheel Type20.8-38Reference

Front Wheel Type16.9-28Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
