Tractor · 2009Unverified

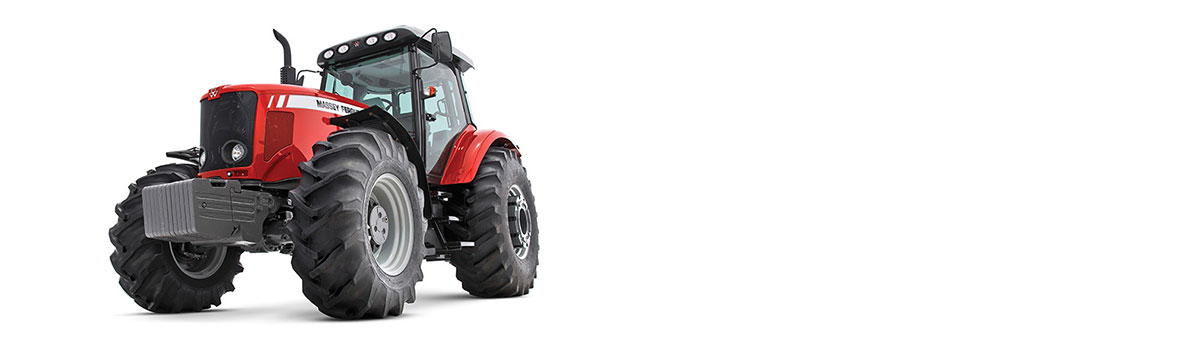

Massey Ferguson 7180
Massey Ferguson 7180 — Row-Crop tractor · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Canoas, BrazilReference
Four-wheel driveReference
Final drivesplanetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post ROPS with canopy. Cab available with air-conditioning. Auto Guide 3000 (optional); AGCOCOMMAND (optional)Reference
Engine
AGCO SISU Power 6.6L 6-cyl dieselReference
Fuel tank420.1 LReference
Engine134.2 kWReference
AGCO SISU Power 620 DSReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Power134.2 kWReference
Rated RPM2200Reference
Torque720.0 NmReference
Torque RPM1400Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 5 reverseReference
PTO & Hydraulics
Typeload sensingReference
Pressure200.0 barReference
Valves4Reference
Pump flow138.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4699 kgReference
Rear lift5502 kgReference
Rear PTO Type540/1000Reference
Engine RPM540@2143Reference
Engine RPM1000@2160Reference
Dimensions
Wheelbase307 cmReference
Front tire600/60-30.5Reference
Rear tire710/65-38Reference
Standard tires (ag)Front: 600/60-30.5. Rear: 710/65-38Reference
Optional tires (ag)Front: 14.9-28. Rear: 23.1-30Reference
Optional tires (ag)Front: 14.9-28. Rear: 18.4-38Reference
Optional tires (ag)Front: 18.4-26. Rear: 18.4-38Reference
Optional tires (ag)Front: 18.4-26. Rear: 24.5-32Reference
Optional tires (ag)Front: 16.9-28. Rear: 20.8-38Reference
Optional tires (ag)Front: 18.4-26. Rear: 20.8-38Reference
Optional tires (ag)Front: 540/65R28. Rear: 650/75R32Reference
Length508 cmReference
Height313 cmReference
Cab Ballasted weight9938 kgReference
ROPS Ballasted weight9720 kgReference
Electrical
Charging amps120Reference
Charging volts12Reference
Battery volts12Reference
Battery AH170Reference
Speeds
With 24.5-32R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
