Tractor · 2004Unverified

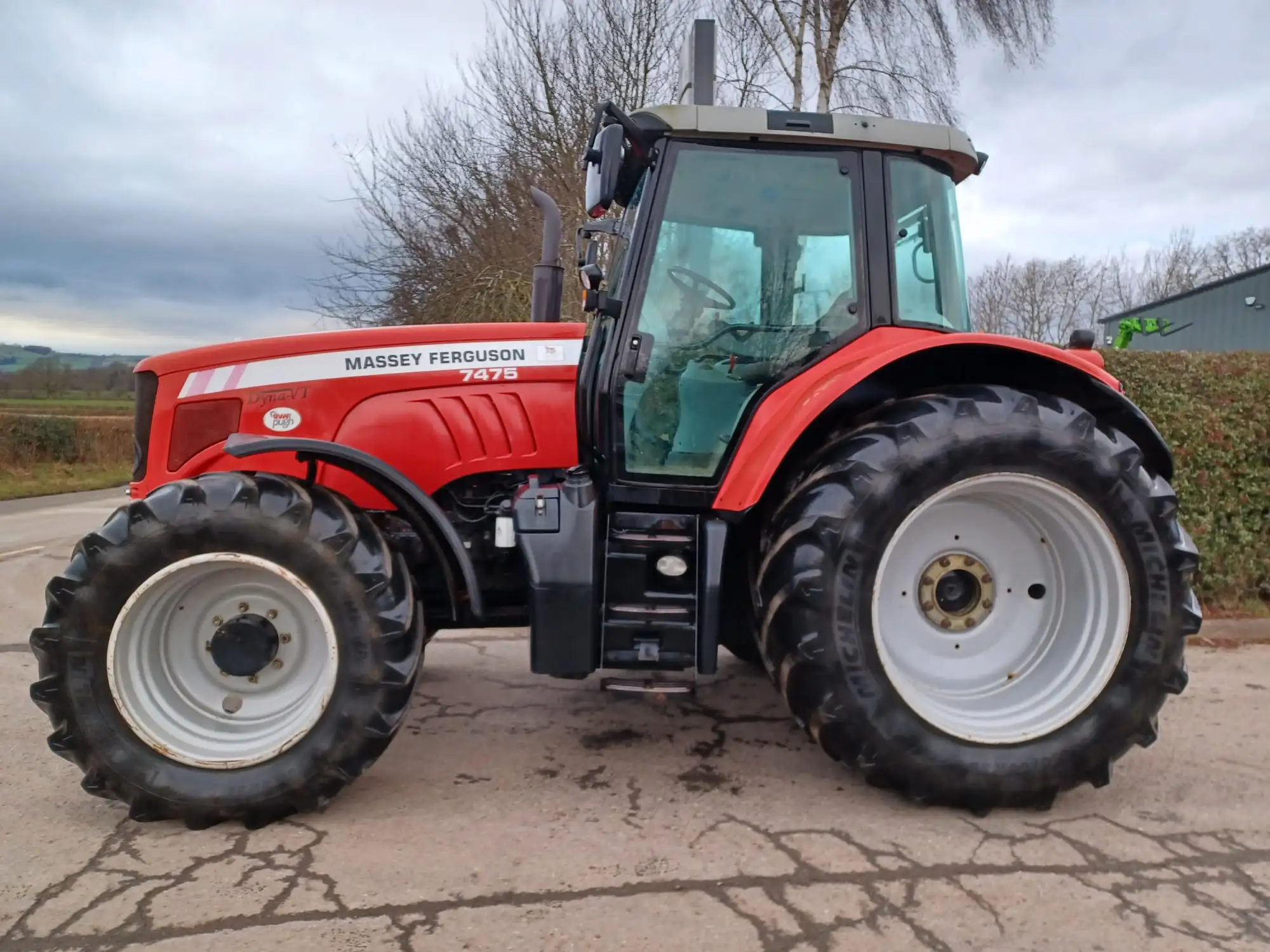

Massey Ferguson 7475

Name: Massey Ferguson 7475
Brand: Massey Ferguson

Massey Ferguson 7475 — Model year 2004-20072008-2012 · 107 hp. Reference specifications; pending source verification.

The Massey Ferguson 7475 is a tractor rated at 107 hp, situated in the middle of its class for power output. This model was produced from 2004 to 2012. It is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system with a 21-speed gearbox. The listed weight of the tractor is 6729 kg, making it suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

107 hp

Max power

88.1 kW

Weight

6729 kg

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

107 hp

Recorded weight

6729 kg

Transmissions

21-speed

Production years

2004-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Cab standard.Reference

Variants

6475Dyna-6Reference

7475Dyna-VTReference

Engine

Perkins 6.0L 6-cyl dieselReference

Fuel tank264.9 LReference

Engine99.2 kWReference

Drawbar (tested)65.8 kWReference

Perkins 1106Reference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Power99.2 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power88.1 kWReference

Power at rated engine speed79.6 kWReference

Max power65.8 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke3.937x5.00 inchesReference

Compression ratio17.5:1Reference

Cooling systemliquid-cooledReference

Transmission

21-speedReference

TransmissionDynaStepReference

Gears21 forward and 18 reverseReference

Oil capacity12.5 LReference

TransmissionDyna-VTReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeCVTReference

forward and reverse optionsDyna-VT - infinite F and infinite RReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)78.3 kWReference

PTO (tested)88.1 kWReference

Typeclosed centerReference

Pressure200.0 barReference

Valves3 or 4Reference

Total flow109.8 lpmReference

Rear TypeII/IIINReference

Rear lift (at 24"/610mm)4762 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Power at rated PTO speed85.4 kWReference

Dimensions

Wheelbase278 cmReference

Weight6729 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length449 cmReference

Width203 cmReference

Height281 cmReference

Operating weight6729 kgReference

Ground clearance35 cmReference

Massey Ferguson 7475 attachments

front-end loaderReference

Electrical

Charging amps120Reference

Batteries2Reference

Battery CCA505Reference

Total cold cranking amps505 CCAReference

Test results

Diesel Dyna Step 4WDFebruary 1 - March 1, 2004Reference

PTO performanceReference

Fuel use27.3 l/hourReference

Fuel use28.0 l/hourReference

Fuel use28.8 l/hourReference

Drawbar performanceReference

Fuel use28.4 l/hourReference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

Differential lockelectro-hydraulic front and rearReference

SCV controlJoystickReference

Rear Axle TypebarReference

Country of manufacturerfranceReference

Capacities

Capacity365.2 ciReference

PTO

PTO Power105 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)29 gpmReference

Hydraulics Typeclosed centerReference

Maximum operating pressure2,900 psiReference

Remote Valves3 to 4 ValvesReference

Rear Hitch category (SAE designation)Category III/IIINReference

Dimensions & weight

Height Over Cab287 cmReference

Overall Height281.9 cmReference

Overall Length449.6 cmReference

Overall Width203.2 cmReference

Drawbar clearance35.6 cmReference

Overall weight6,849.2 kgReference

Rear Axle Length300 cmReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Front Wheel Type14.9R28Reference

Front Wheel tread range56 to 84 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
