Tractor · 2004Unverified

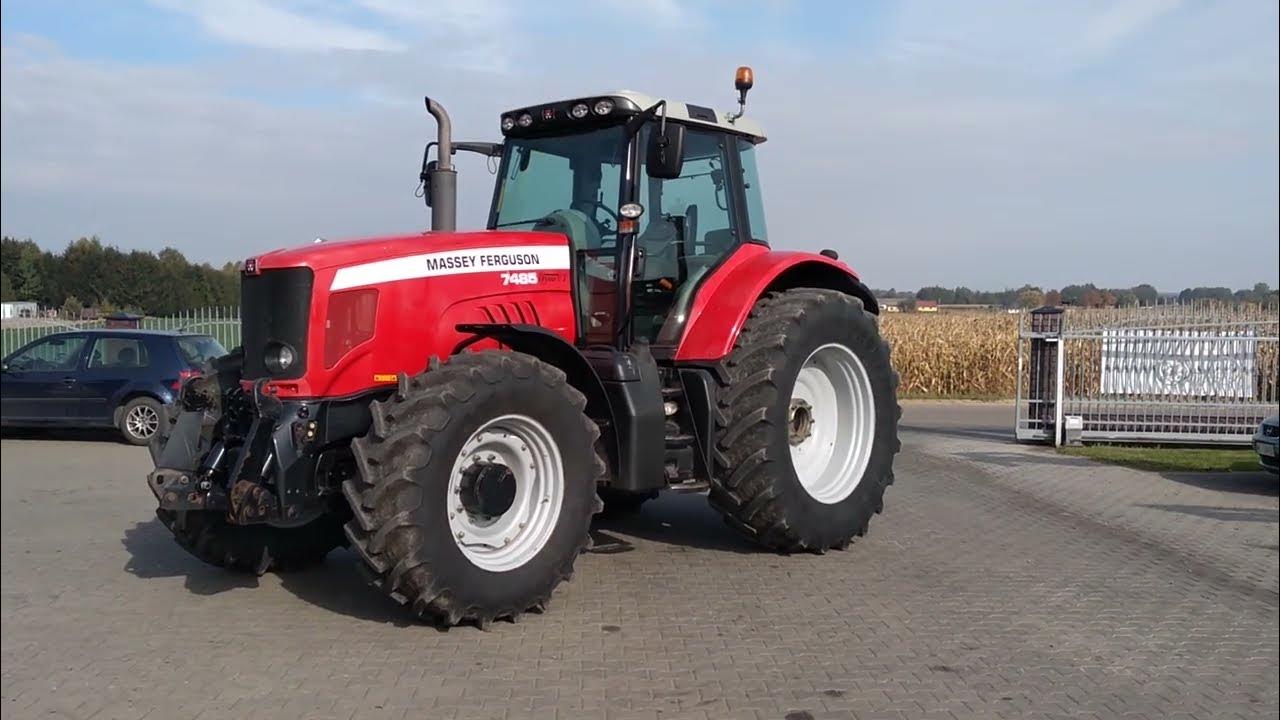

Massey Ferguson 7485

Name: Massey Ferguson 7485
Brand: Massey Ferguson

Massey Ferguson 7485 — Model year 2004-20072008-2012 · 128 hp. Reference specifications; pending source verification.

The Massey Ferguson 7485 tractor has a rated power output of 128 hp, positioning it at the higher end of its class. This model was manufactured from 2004 to 2012. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a 21-speed gearbox. The tractor has an operating weight of 6869 kg and is suited to managing areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

128 hp

Max power

103.0 kW

Weight

6869 kg

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

128 hp

Recorded weight

6869 kg

Transmissions

21-speed

Production years

2004-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Cab standard.Reference

Variants

6485Dyna-6Reference

7485Dyna-VTReference

Engine

Sisu 6.6L 6-cyl dieselReference

Fuel tank355.0 LReference

Engine114.1 kWReference

Drawbar (tested)75.2 kWReference

Sisu 66CTAReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Power114.1 kWReference

Air cleanerdual paper elementsReference

Compression18.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power103.0 kWReference

Power at rated engine speed95.4 kWReference

Max power75.2 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Bore and stroke4.252x4.724 inchesReference

Compression ratio18.5:1Reference

Cooling systemliquid-cooledReference

Transmission

21-speedReference

TransmissionDynaStepReference

Gears21 forward and 18 reverseReference

Oil capacity12.5 LReference

TransmissionDyna-VTReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

Rear Axle Drive TypeplanetaryReference

PTO & Hydraulics

PTO (claimed)96.9 kWReference

PTO (tested)103.0 kWReference

Typeclosed centerReference

Pressure200.0 barReference

Valves3 or 4Reference

Total flow109.8 lpmReference

Rear TypeII/IIINReference

Rear lift (at 24"/610mm)6478 kgReference

Front HitchoptionalReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Power at rated PTO speed101.8 kWReference

Dimensions

Wheelbase300 cmReference

Weight6869 kgReference

Front tire14.9R28Reference

Rear tire18.4R38Reference

Ag front14.9R28Reference

Ag rear18.4R38Reference

Length522 cmReference

Width203 cmReference

Height309 cmReference

Operating weight6869 kgReference

Ballasted weight7649 kgReference

Ground clearance35 cmReference

Massey Ferguson 7485 attachments

front-end loaderReference

Electrical

Charging amps120Reference

Charging amps150 (optional)Reference

Batteries2Reference

Battery CCA505Reference

Total cold cranking amps505 CCAReference

Test results

Diesel Dyna Step 4WDDecember 1 - May 1, 2003Reference

PTO performanceReference

Fuel use29.5 l/hourReference

Fuel use31.8 l/hourReference

Fuel use31.0 l/hourReference

Drawbar performanceReference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

Differential lockelectro-hydraulic front and rearReference

SCV controlJoystickReference

Rear Axle TypebarReference

Country of manufacturerfranceReference

Capacities

Capacity402.5 ciReference

PTO

PTO Power130 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)29 gpmReference

Hydraulics Typeclosed centerReference

Maximum operating pressure2,900 psiReference

Remote Valves3 to 4 ValvesReference

Rear Hitch category (SAE designation)Category III/IIINReference

Dimensions & weight

Height Over Cab304.8 cmReference

Overall Height309.9 cmReference

Overall Length523 cmReference

Overall Width203.2 cmReference

Drawbar clearance35.6 cmReference

Overall weight7,302.8 kgReference

Rear Axle Length300 cmReference

Wheels & tyres

Rear Wheel Type18.4R38Reference

Front Wheel Type14.9R28Reference

Front Wheel tread range60 to 88 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
