Tractor · 2004Unverified

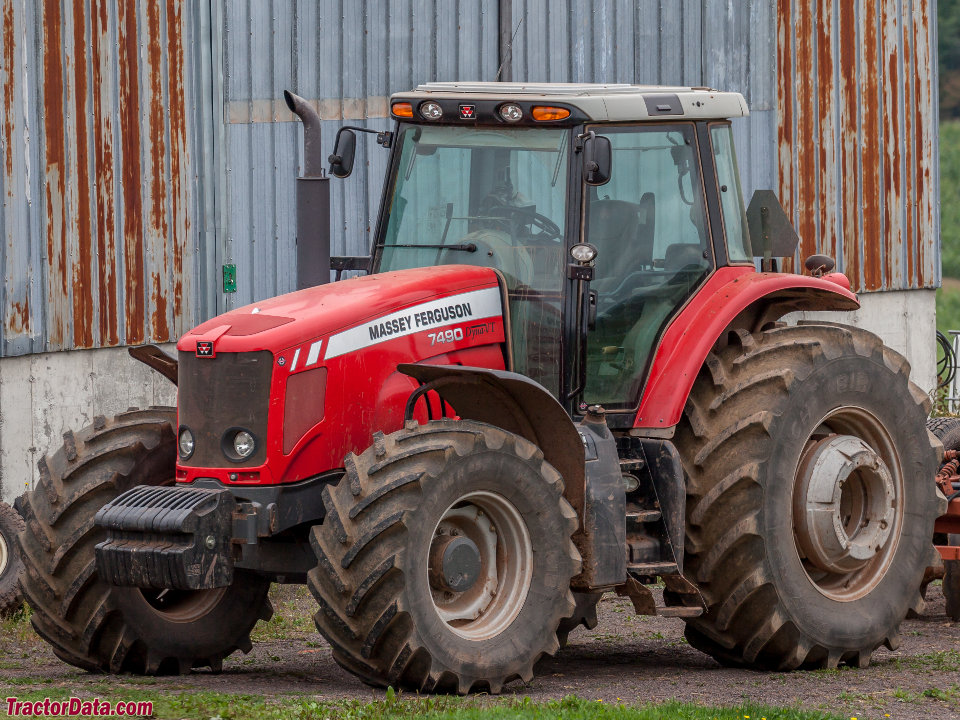

Massey Ferguson 7490
Massey Ferguson 7490 — Model year 2004-20072008-2012 · 143 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
143 hp
Max power
115.1 kW
Weight
6869 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard.Reference
Variants
6490Dyna-6Reference
7490Dyna-VTReference
Engine
Sisu 6.6L 6-cyl dieselReference
Fuel tank355.0 LReference
Engine125.3 kWReference
Drawbar (tested)85.8 kWReference
Sisu 66CTAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power125.3 kWReference
Air cleanerdual paper elementsReference
Compression18.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power115.1 kWReference
Power at rated engine speed106.8 kWReference
Max power85.8 kWReference
Transmission
21-speedReference
TransmissionDynaStepReference
Gears21 forward and 18 reverseReference
Oil capacity12.5 LReference
TransmissionDyna-VTReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)115.1 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves3 or 4Reference
Total flow109.8 lpmReference
Rear TypeII/IIINReference
Rear lift (at 24"/610mm)6478 kgReference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Power at rated PTO speed114.2 kWReference
Dimensions
Wheelbase301 cmReference
Weight6869 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length522 cmReference
Width203 cmReference
Height309 cmReference
Operating weight6869 kgReference
Ballasted weight7649 kgReference
Ground clearance35 cmReference
Massey Ferguson 7490 attachments
front-end loaderReference
Electrical
Charging amps120Reference
Charging amps150 (optional)Reference
Batteries2Reference
Battery CCA505Reference
Test results
Diesel Dyna Step 4WDDecember 1, 2003 - May 1, 2004Reference
PTO performanceReference
Fuel use33.3 l/hourReference
Fuel use35.6 l/hourReference
Fuel use34.4 l/hourReference
Drawbar performanceReference
Fuel use35.2 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
