Tractor · 2009Unverified

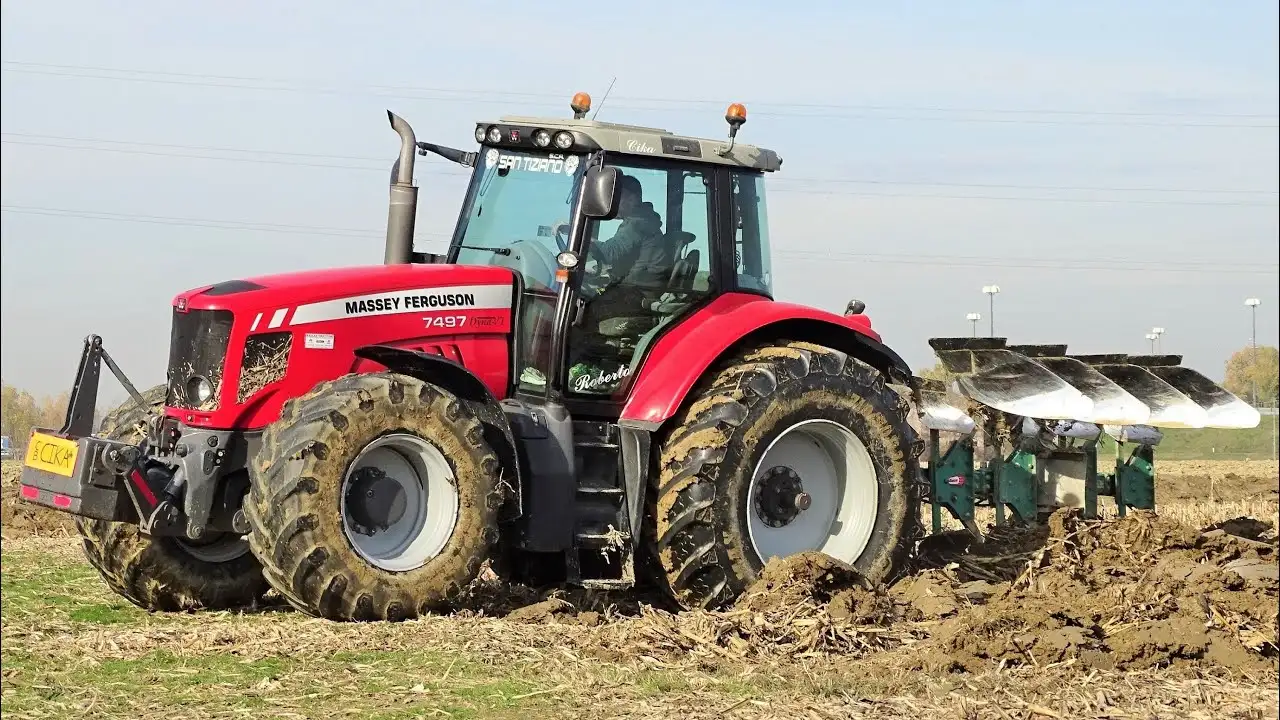

Massey Ferguson 7497

Name: Massey Ferguson 7497
Brand: Massey Ferguson

Massey Ferguson 7497 — Row-Crop tractor · 181 hp. Reference specifications; pending source verification.

The Massey Ferguson 7497 is a high-powered tractor with an engine rating of 181 hp. It was produced from 2009 to 2012. The tractor is equipped with a 6-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a continuously variable transmission. Its listed weight ranges from 16372 to 17685 pounds, suitable for tasks on areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

181 hp

Max power

155.0 kW

Weight

16372 to 17685 pounds

Catalogue coverage

Variants represented

Richest spec table

113 rows

Recorded power

181 hp

Recorded weight

7426 kg

Transmissions

continuously variable transmission (CVT)

Production years

2009-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning. Pneumatic cab suspension optional.Reference

Variants

6497Dyna-6Reference

7497Dyna-VTReference

MT585Bsimilar Challenger modelReference

Engine

AGCO Sisu Power 7.4L 6-cyl dieselReference

Engine152.9 kWReference

Drawbar (tested)111.3 kWReference

AGCO Sisu PowerReference

dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 121 mmReference

EmissionsTier IIIReference

Power152.9 kWReference

Maximum Power167.8 kWReference

Starter typeelectricReference

Max power155.0 kWReference

Power at rated engine speed134.9 kWReference

Max power111.3 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Emissions complianceTier IIIReference

Bore and stroke4.25x4.78 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously variable transmission (CVT)Reference

TransmissionDyna-VTReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverse (two-range)Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)123.0 kWReference

PTO (tested)155.0 kWReference

Hydraulic system57.9 LReference

Typeclosed centerReference

Capacity57.9 LReference

Pressure200.0 barReference

Valves3 or 4Reference

Total flow110.1 lpmReference

Total flow149.9 lpmReference

Rear TypeIIIReference

Controllower-link draft sensingReference

Rear lift (at 24"/610mm)7321 kgReference

Front HitchoptionalReference

Front lift3991 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E/1000Reference

Power at rated PTO speed152.0 kWReference

Capacities

Fuel355.8 LReference

Fuel tank355.8 LReference

Dimensions

Wheelbase299 cmReference

Weight16372 to 17685 poundsReference

Length533 cmReference

Width246 cmReference

Width299 cmReference

Height (cab)304 cmReference

Shipping weight7426 kgReference

Operating weight8021 kgReference

Clearance (drawbar)40 cmReference

Bar rear axleReference

Front tread152 to 223 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Batteries2Reference

Battery CCA600Reference

Battery volts12Reference

Total cold cranking amps600 CCAReference

Test results

Diesel Dyna-VT 4WDJune 12 - 18, 2012Link: OCED Tractor Test 2031 fileReference

PTO performanceReference

Fuel use43.5 l/hourReference

Fuel use42.0 l/hourReference

Fuel use44.7 l/hourReference

Drawbar performanceReference

Fuel use42.4 l/hourReference

Pull at 9 kphReference

Max pull7876 kgReference

Pull at 5 kphReference

General

Make & ModelMassey FergusonReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rear Axle TypeBarReference

Country of manufacturerFranceReference

Hydraulics

Capacity Valves24 ValvesReference

Pump Rated Output (total)39.6 gpmReference

Hydraulics TypeClosed CenterReference

Maximum operating pressure2,900 psiReference

Remote Valves3 or 4 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch Sensing Typelower-link draft sensingReference

PTO

PTO Power165 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic Wet discReference

Steering typePowerReference

Dimensions & weight

Height Over Cab304.8 cmReference

Overall Length533.4 cmReference

Overall Width300 cmReference

Drawbar clearance40.6 cmReference

Overall weight7,426.2 kgReference

Wheels & tyres

Front Wheel tread range60 to 88 inchesReference

Operator station

Cab AvailabilityCab standard with air-conditioning.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
