Tractor · 2013Unverified

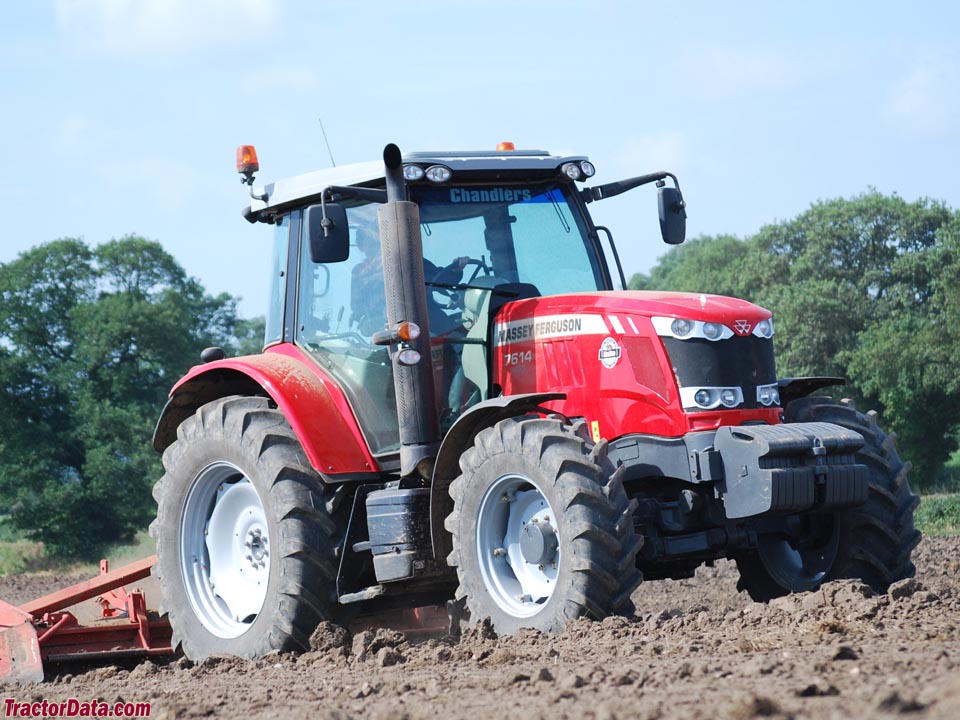

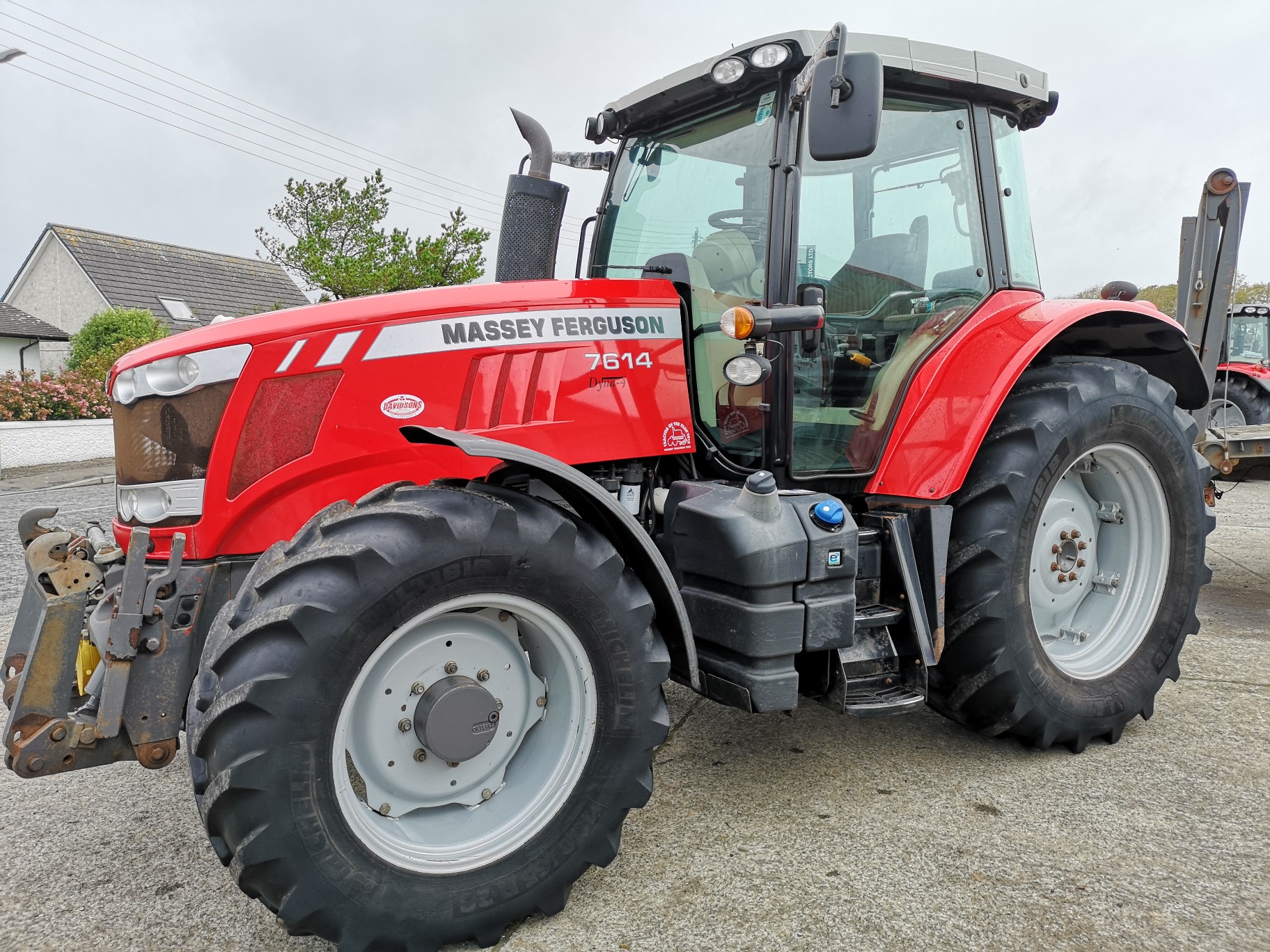

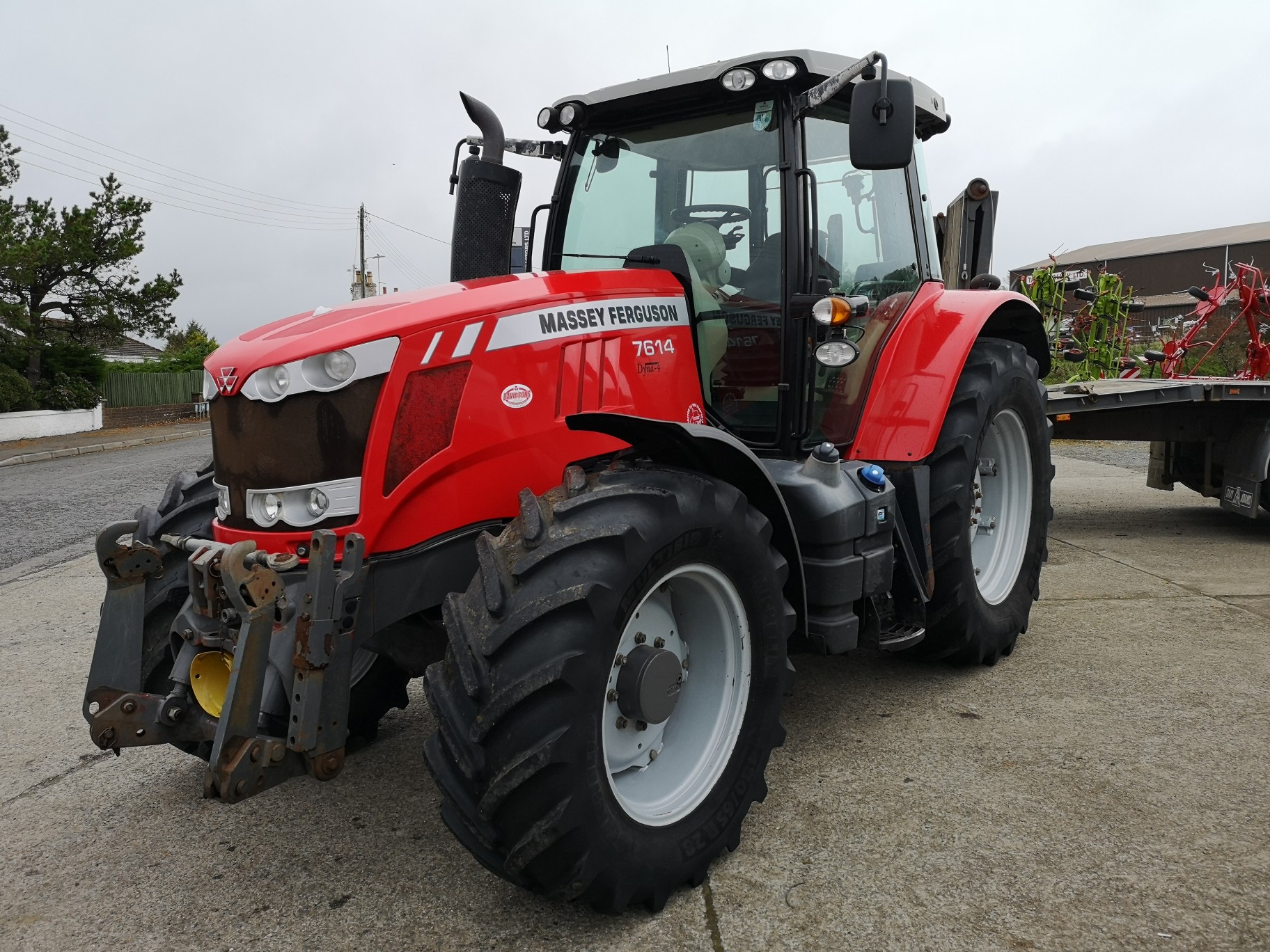

Massey Ferguson 7614
Massey Ferguson 7614 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
101.1 kW
Weight
6831 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic standardReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional)Reference
Engine
Sisu 6.6L 6-cyl dieselReference
Engine (net)96.9 kWReference
Drawbar (tested)75.0 kWReference
SisuReference
turbocharged air-to-air aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (net)96.9 kWReference
Fuel systemelectronic high-pressure common railReference
Pre-heatingthermostartReference
Compression17.4:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power101.1 kWReference
Power at rated engine speed90.4 kWReference
Max power75.0 kWReference
Transmission
16-speed four-speed power shiftReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)101.1 kWReference
Hydraulic system99.9 LReference
Typeclosed-center load sensing (CCLS)Reference
Typeopen centerReference
Capacity99.9 LReference
Pressure200.0 barReference
Valves3 (mechanical)Reference
Valves4 (2 mech, 2 elec)Reference
Valves4 (electric)Reference
SCV flow92.0 lpmReference
Total flow109.8 lpmReference
Rear TypeIIIReference
Controlelectronic lower link draft sensingReference
Rear lift (at ends)4445 kgReference
Front HitchoptionalReference
DrawbarCat. II with drop pinReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000 (1.375)Reference
Rear PTO Type540/540E/1000/1000E (1.375)Reference
Engine RPM540@1980Reference
Engine RPM540E@1533Reference
Engine RPM1000@2030Reference
Engine RPM1000E@1572Reference
Power at rated PTO speed98.9 kWReference
Capacities
Fuel310.4 LReference
Exhaust fluid (DEF)30.3 LReference
Max capacity9250 kgReference
Dimensions
Wheelbase287 cmReference
Weight6831 kgReference
Length489 cmReference
Height (cab)298 cmReference
Height (cab)306 cmReference
Front axle4WDReference
Front axleQuadLink Suspended 4WDReference
Flange rear axle1834 mmReference
Bar rear axle2027 mmReference
Long bar rear axle2672 mmReference
Shipping6831 kgReference
Max Drawbar1599 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps175 (option)Reference
Charging amps240 (dual 120 option)Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel Dyna-4 4WDApril 2012 - May 2012, Link: OCED Tractor Test 2754 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use27.6 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Fuel use25.4 l/hourReference
Gear 3A used for power test.Reference
Max pull5322 kgReference
Gear 2A used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
