Tractor · 2013Unverified

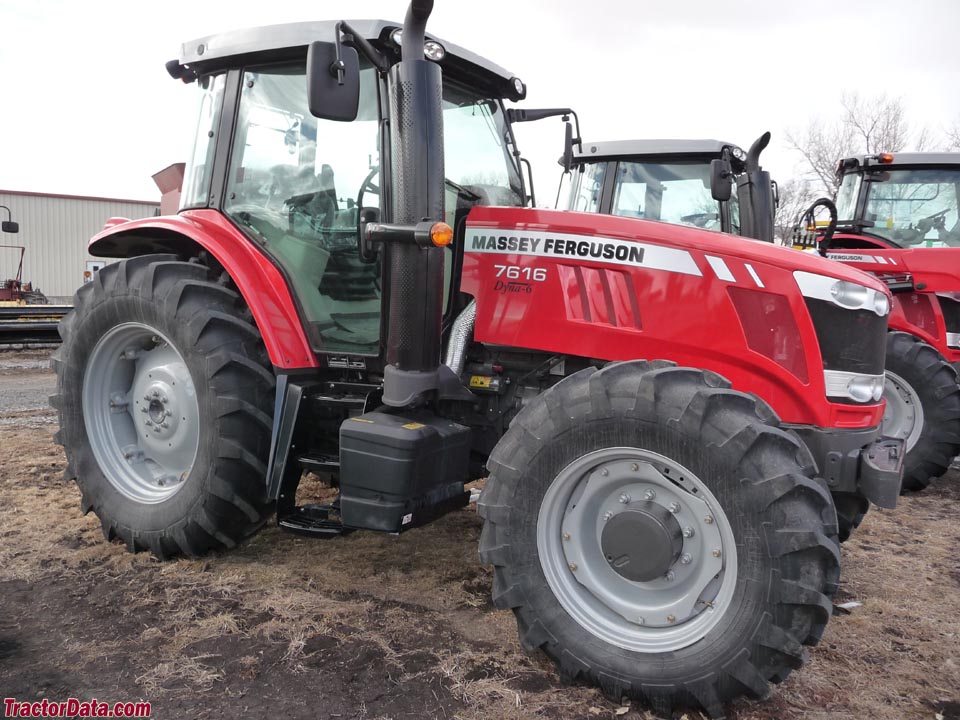

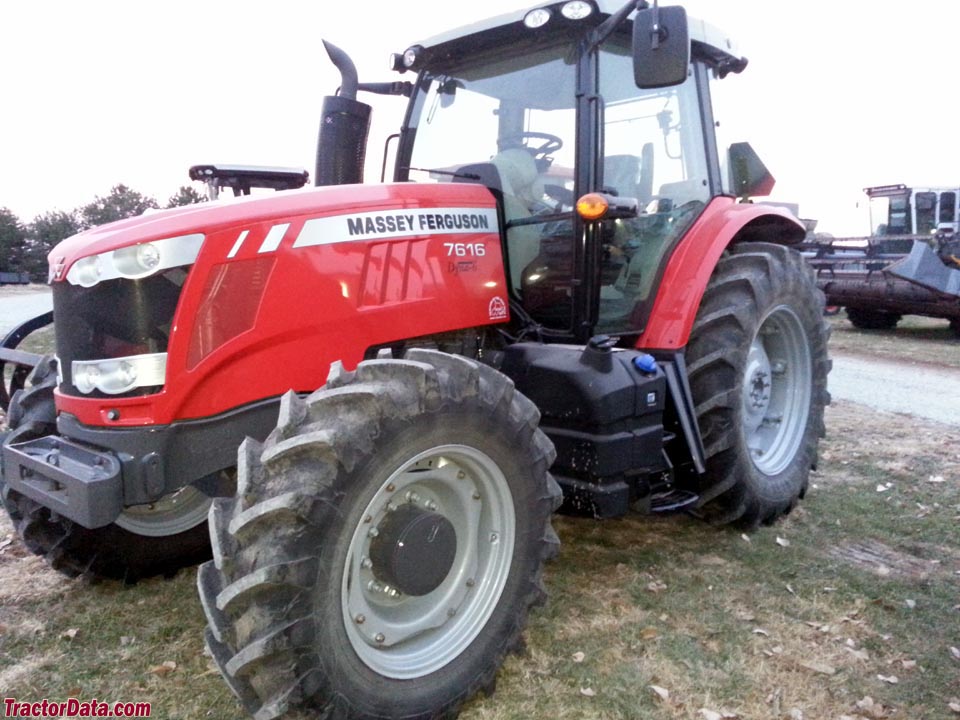

Massey Ferguson 7616

Name: Massey Ferguson 7616
Brand: Massey Ferguson

Massey Ferguson 7616 — Row-Crop tractor · 150 hp. Reference specifications; pending source verification.

The Massey Ferguson 7616 is a tractor with a rating of approximately 150 hp, placing it at the higher end of its class. It was produced from 2013 to 2014. This model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a continuously variable transmission. It has a listed operating weight of 6831 kg and is suited to operations covering areas of 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

150 hp

Max power

107.7 kW

Weight

6831 kg

Catalogue coverage

Variants represented

Richest spec table

155 rows

Recorded power

150 hp

Recorded weight

6831 kg

Transmissions

24-speed six-speed power shift

Production years

2013-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic standardReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Trailer brakespneumatic (optional)Reference

Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional)Reference

Engine

Sisu 6.6L 6-cyl dieselReference

Engine (net)111.9 kWReference

Drawbar (tested)80.0 kWReference

SisuReference

turbocharged air-to-air aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power (net)111.9 kWReference

Fuel systemelectronic high-pressure common railReference

Pre-heatingthermostartReference

Compression17.4:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power107.7 kWReference

Power at rated engine speed96.1 kWReference

Max power78.7 kWReference

Max power105.3 kWReference

Power at rated engine speed94.0 kWReference

Max power80.0 kWReference

Fuel TypedieselReference

No of Cylinders6 CylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceInterim Tier IV | selective catalytic reduction (SCR)Reference

Bore and stroke4.252x4.724 inchesReference

Compression ratio17.4:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed six-speed power shiftReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power shift gears in four ranges.Reference

TransmissionDyna-VTReference

Gearsinfinite forward and reverse (2-range)Reference

continuously-variable transmission (CVT)Reference

Transmission TypePowershiftReference

Wheel Drive4WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (tested)107.7 kWReference

Hydraulic system99.9 LReference

Typeclosed-center load sensing (CCLS)Reference

Typeopen centerReference

Capacity99.9 LReference

Pressure200.0 barReference

Valves3 (mechanical)Reference

Valves4 (2 mech, 2 elec)Reference

Valves4 (electric)Reference

SCV flow92.0 lpmReference

Total flow109.8 lpmReference

Controlelectronic lower link draft sensingReference

Rear lift (at ends)4445 kgReference

Rear lift (at ends)5216 kgReference

Front HitchoptionalReference

DrawbarCat. II with drop pinReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type540/540E/1000 (1.375)Reference

Rear PTO Type540/540E/1000/1000E (1.375)Reference

Engine RPM540@1890Reference

Engine RPM540@2065 (Dyna-VT)Reference

Engine RPM540E@1533Reference

Engine RPM540E@1590 (Dyna-VT)Reference

Engine RPM1000@2030Reference

Engine RPM1000@2034 (Dyna-VT)Reference

Engine RPM1000E@1572Reference

Power at rated PTO speed103.4 kWReference

Power at rated PTO speed102.8 kWReference

Capacities

Fuel310.4 LReference

Exhaust fluid (DEF)30.3 LReference

Max capacity9250 kgReference

Max capacity11500 kgReference

Fuel tank310.4 LReference

Diesel exhaust fluid (DEF) tank30.3 LReference

Dimensions

Wheelbase287 cmReference

Weight6831 kgReference

Length489 cmReference

Height (cab)298 cmReference

Height (cab)306 cmReference

Front axle4WDReference

Front axleQuadLink Suspended 4WDReference

Flange rear axle1834 mmReference

Bar rear axle2027 mmReference

Bar rear axle2277 mmReference

Long bar rear axle2672 mmReference

Long bar rear axle2870 mmReference

Shipping6831 kgReference

Max Drawbar1599 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps175 (option)Reference

Charging amps240 (dual 120 option)Reference

Batteries2Reference

Battery volts12Reference

Test results

OECD 2773: diesel Dyna-VT 4WDReference

OECD 2789: diesel Dyna-6 4WDReference

Diesel Dyna-VT 4WDMarch 2013 - April 2013, Link: OCED Tractor Test 2773 fileReference

PTO performanceReference

Fuel use31.8 l/hourReference

Fuel use29.9 l/hourReference

Fuel use31.0 l/hourReference

Drawbar performanceReference

Pull at 7.8KPHReference

Max pull6862 kgReference

Pull at 3.0KPHReference

Diesel Dyna-6 4WDNovember 2012 - July 2013, Link: OCED Tractor Test 2789 fileReference

Fuel use30.3 l/hourReference

Fuel use28.4 l/hourReference

Fuel use27.3 l/hourReference

Gear 3A used for power test.Reference

Max pull5985 kgReference

Gear 1F used for pull test.Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCat. II with drop pinReference

Rear Axle TypeFlange | BarReference

Front Axle Type4WD, | QuadLink Suspended 4WDReference

Country of manufacturerFranceReference

Hydraulics

Capacity Valves24 valveReference

Pump Rated Output (total)29 gpmReference

Hydraulics Typeclosed-center load sensing (CCLS),| open centerReference

Maximum operating pressure2,900 psiReference

Remote Valves3 (mechanical) |4 (2 mech, 2 elec) |4 (electric)Reference

Rear Hitch maximum lift capacity5,216.3 kgReference

Rear Hitch Sensing Typeelectronic lower link draft sensingReference

PTO

PTO Power120 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540@1,890 RPMReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typePower steeringReference

Dimensions & weight

Height Over Cab306.6 cmReference

Overall Length489.7 cmReference

Overall weight6,831.1 kgReference

Rear Axle Length287 cmReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
