Tractor · 2013Unverified

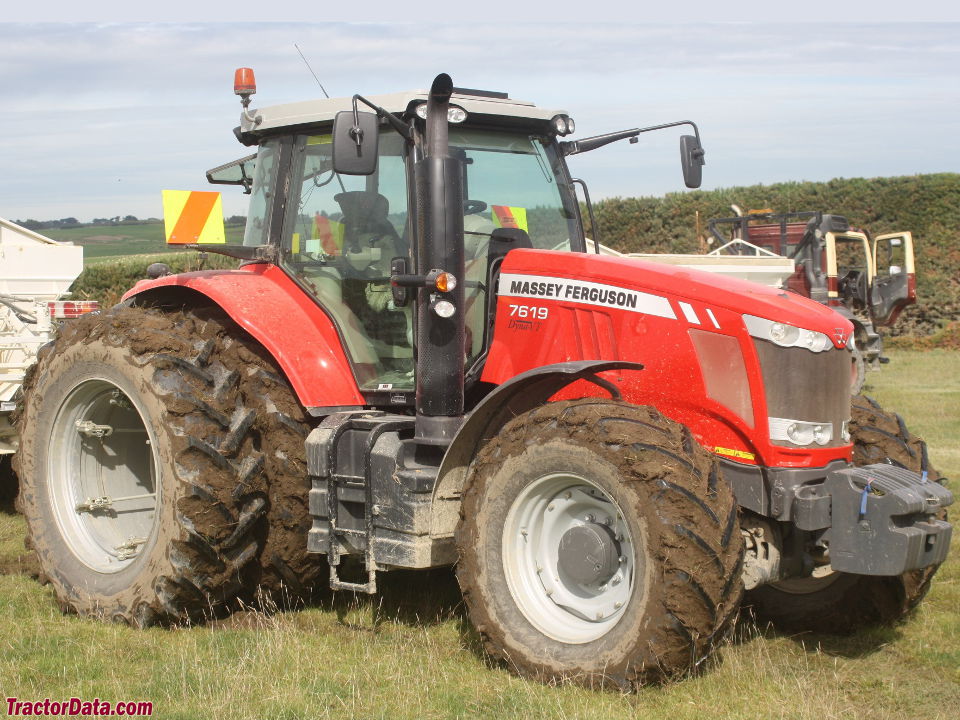

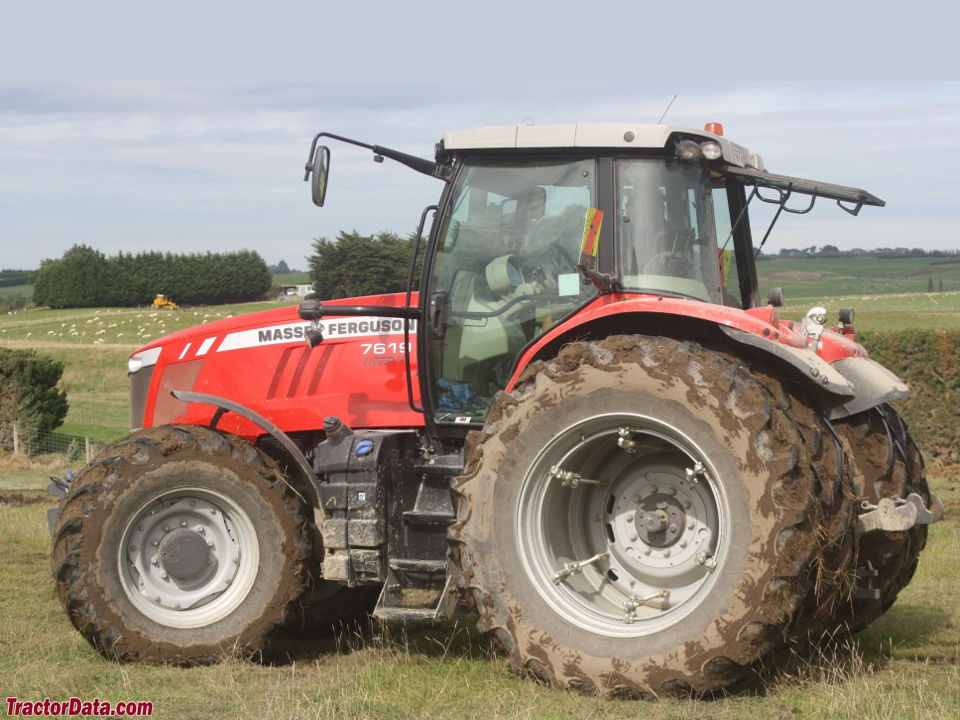

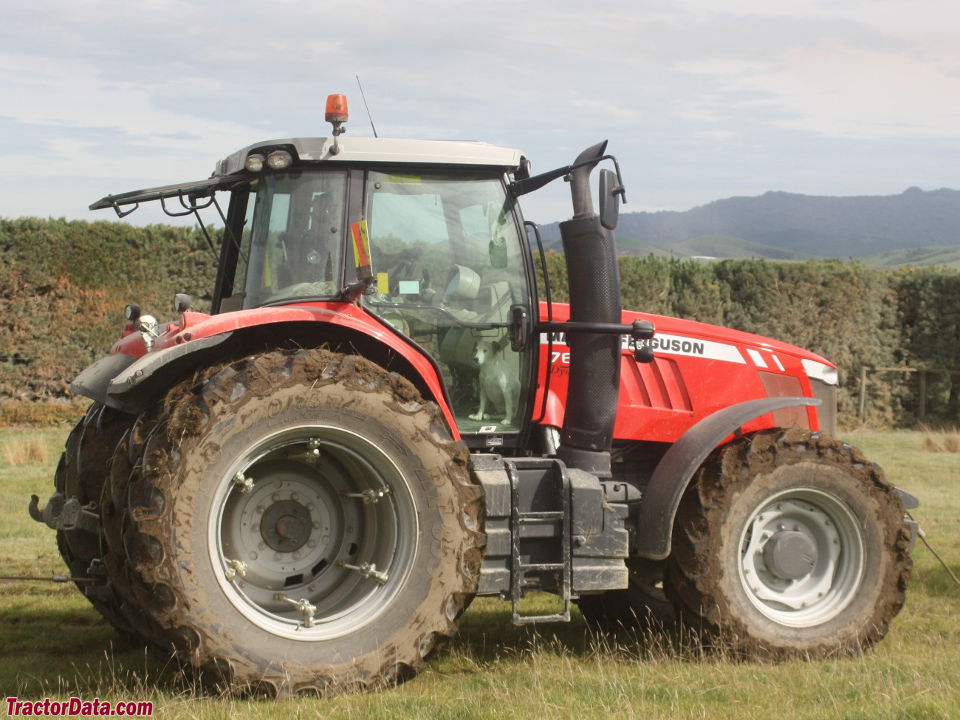

Massey Ferguson 7619
Massey Ferguson 7619 — Row-Crop tractor · 170 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
170 hp
Max power
129.2 kW
Weight
7166 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic standardReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional)Reference
Engine
Sisu 6.6L 6-cyl dieselReference
Engine (net)126.8 kWReference
Drawbar (tested)92.3 kWReference
SisuReference
turbocharged air-to-air aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (net)126.8 kWReference
Fuel systemelectronic high-pressure common railReference
Pre-heatingthermostartReference
Compression17.4:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power129.2 kWReference
Power at rated engine speed113.0 kWReference
Max power85.9 kWReference
Max power126.7 kWReference
Power at rated engine speed108.5 kWReference
Max power92.3 kWReference
Transmission
24-speed six-speed power shiftReference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power shift gears in four ranges.Reference
TransmissionDyna-VTReference
Gearsinfinite forward and reverse (2-range)Reference
continuously-variable transmission (CVT)Reference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)129.2 kWReference
Hydraulic system99.9 LReference
Typeclosed-center load sensing (CCLS)Reference
Capacity99.9 LReference
Pressure200.0 barReference
Valves3 (mechanical)Reference
Valves4 (2 mech, 2 elec)Reference
Valves4 (electric)Reference
SCV flow92.0 lpmReference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Controlelectronic lower link draft sensingReference
Rear lift (at ends)6350 kgReference
Rear lift (at ends)6221 kgReference
Front HitchoptionalReference
DrawbarCat. II with drop pinReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000 (1.375)Reference
Rear PTO Type540/1000/1000E (1.375)Reference
Rear PTO Type540/540E/1000/1000E (1.375)Reference
Engine RPM540@1890 (Dyna-6)Reference
Engine RPM540@2065 (Dyna-VT)Reference
Engine RPM540E@1524 (Dyna-6)Reference
Engine RPM540E@1590 (Dyna-VT)Reference
Engine RPM1000@2000 (Dyna-6)Reference
Engine RPM1000@2034 (Dyna-VT)Reference
Engine RPM1000E@1595Reference
Power at rated PTO speed120.5 kWReference
Power at rated PTO speed120.8 kWReference
Capacities
Fuel431.5 LReference
Exhaust fluid (DEF)53.0 LReference
Max capacity11995 kgReference
Max capacity12500 kgReference
Dimensions
Wheelbase299 cmReference
Weight7166 kgReference
Length517 cmReference
Height (cab)306 cmReference
Height (cab)314 cmReference
Front axle4WDReference
Front axleQuadLink Suspended 4WDReference
Bar rear axle2144 mmReference
Bar rear axle2277 mmReference
Long bar rear axle2847 mmReference
Long bar rear axle2870 mmReference
Shipping7166 kgReference
Max Drawbar1599 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps175 (option)Reference
Charging amps240 (dual 120 option)Reference
Batteries2Reference
Battery volts12Reference
Test results
OECD 2703: diesel Dyna-VT 4WDReference
OECD 2758: diesel Dyna-6 4WDReference
Diesel Dyna-VT 4WDJanuary 2012 - March 2012, Link: OCED Tractor Test 2703 fileReference
PTO performanceReference
Fuel use35.6 l/hourReference
Fuel use33.3 l/hourReference
Fuel use34.4 l/hourReference
Drawbar performanceReference
Fuel use30.7 l/hourReference
Max pull7647 kgReference
Diesel Dyna-6 4WDSeptember 2012 - October 2012, Link: OCED Tractor Test 2758 fileReference
Fuel use32.9 l/hourReference
Fuel use34.8 l/hourReference
Gear 3A used for power test.Reference
Max pull6729 kgReference
Gear 1F used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
