Tractor · 2013Unverified

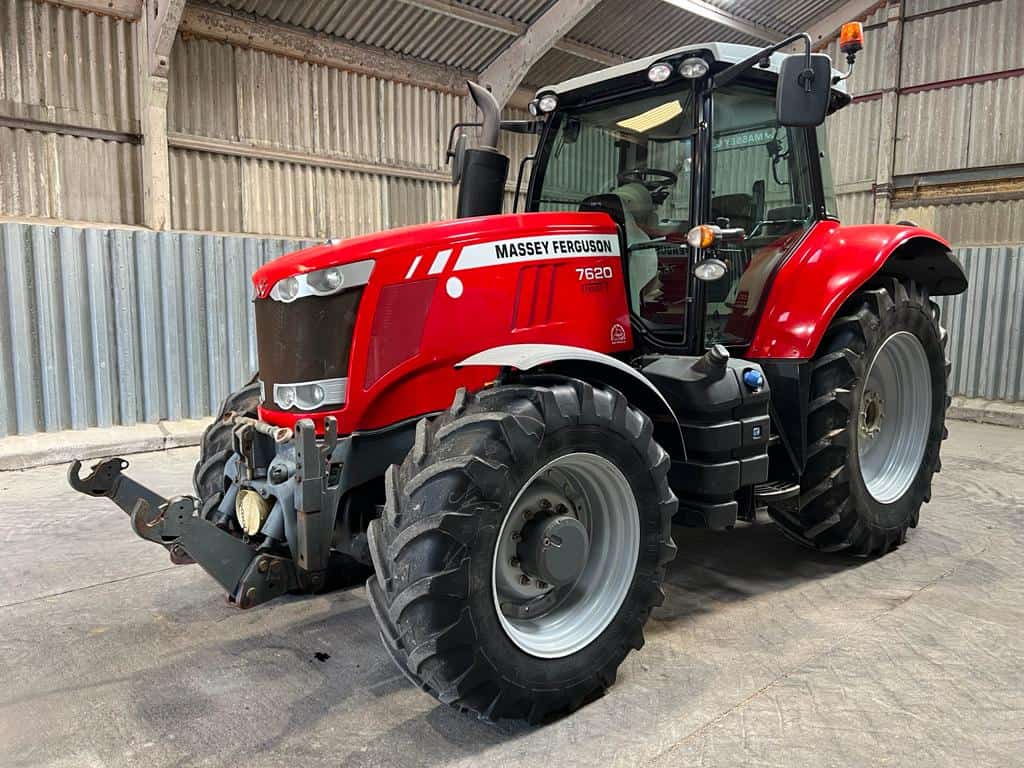

Massey Ferguson 7620

Name: Massey Ferguson 7620
Brand: Massey Ferguson

Massey Ferguson 7620 — Row-Crop tractor · 180 hp. Reference specifications; pending source verification.

The Massey Ferguson 7620 is a tractor model with a rated power of 180 hp, positioning it at the higher end of its class. Built between 2013 and 2014, it features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a continuously variable transmission. Its listed operating weight is 7166 kg, making it suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

180 hp

Max power

136.6 kW

Weight

7166 kg

Catalogue coverage

Variants represented

Richest spec table

155 rows

Recorded power

180 hp

Recorded weight

7166 kg

Transmissions

24-speed six-speed power shift

Production years

2013-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic standardReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Trailer brakespneumatic (optional)Reference

Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional)Reference

Engine

Sisu 6.6L 6-cyl dieselReference

Engine (net)134.2 kWReference

Drawbar (tested)102.3 kWReference

SisuReference

turbocharged air-to-air aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power (net)134.2 kWReference

Power (net)138.0 kWReference

Fuel systemelectronic high-pressure common railReference

Pre-heatingthermostartReference

Compression17.4:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power136.6 kWReference

Power at rated engine speed121.0 kWReference

Max power92.8 kWReference

Max power133.2 kWReference

Power at rated engine speed116.9 kWReference

Max power102.3 kWReference

Fuel TypedieselReference

No of Cylinders6 CylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceInterim Tier IV | selective catalytic reduction (SCR)Reference

Bore and stroke4.252x4.724 inchesReference

Compression ratio17.4:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed six-speed power shiftReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power shift gears in four ranges.Reference

TransmissionDyna-VTReference

Gearsinfinite forward and reverse (2-range)Reference

continuously-variable transmission (CVT)Reference

Transmission TypePowershiftReference

Wheel Drive4WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)111.9 kWReference

PTO (tested)136.6 kWReference

Hydraulic system99.9 LReference

Typeclosed-center load sensing (CCLS)Reference

Capacity99.9 LReference

Pressure200.0 barReference

Valves3 (mechanical)Reference

Valves4 (2 mech, 2 elec)Reference

Valves4 (electric)Reference

SCV flow92.0 lpmReference

Total flow109.8 lpmReference

Total flow147.6 lpmReference

Controlelectronic lower link draft sensingReference

Rear lift (at ends)6350 kgReference

Rear lift (at ends)6221 kgReference

Front HitchoptionalReference

DrawbarCat. II with drop pinReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type540/540E/1000 (1.375)Reference

Rear PTO Type540/1000/1000E (1.375)Reference

Rear PTO Type540/540E/1000/1000E (1.375)Reference

Engine RPM540@1890 (Dyna-6)Reference

Engine RPM540@2065 (Dyna-VT)Reference

Engine RPM540E@1524 (Dyna-6)Reference

Engine RPM540E@1590 (Dyna-VT)Reference

Engine RPM1000@2000 (Dyna-6)Reference

Engine RPM1000@2034 (Dyna-VT)Reference

Engine RPM1000E@1595Reference

Power at rated PTO speed126.1 kWReference

Power at rated PTO speed127.9 kWReference

Capacities

Fuel431.5 LReference

Exhaust fluid (DEF)53.0 LReference

Max capacity11995 kgReference

Max capacity12500 kgReference

Fuel tank431.5 LReference

Diesel exhaust fluid (DEF) tank53 LReference

Dimensions

Wheelbase299 cmReference

Weight7166 kgReference

Length517 cmReference

Height (cab)306 cmReference

Height (cab)314 cmReference

Front axle4WDReference

Front axleQuadLink Suspended 4WDReference

Bar rear axle2144 mmReference

Bar rear axle2277 mmReference

Long bar rear axle2847 mmReference

Long bar rear axle2870 mmReference

Shipping7166 kgReference

Max Drawbar1599 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps175 (option)Reference

Charging amps240 (dual 120 option)Reference

Batteries2Reference

Battery volts12Reference

Test results

OECD 2704: diesel Dyna-VT 4WDReference

OECD 2756: diesel Dyna-6 4WDReference

Diesel Dyna-VT 4WDJanuary 2012 - March 2012, Link: OCED Tractor Test 2704 fileReference

PTO performanceReference

Fuel use37.5 l/hourReference

Fuel use35.2 l/hourReference

Fuel use36.3 l/hourReference

Drawbar performanceReference

Fuel use32.2 l/hourReference

Max pull7708 kgReference

Diesel Dyna-6 4WDSeptember 2012 - October 2012, Link: OCED Tractor Test 2756 fileReference

Fuel use37.1 l/hourReference

Fuel use34.8 l/hourReference

Fuel use32.6 l/hourReference

Gear 3A used for power test.Reference

Max pull6944 kgReference

Gear 1F used for pull test.Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCat. II with drop pinReference

Rear Axle TypeBarReference

Front Axle Type4WD | QuadLink Suspended 4WDReference

Country of manufacturerFranceReference

Hydraulics

Capacity Valves24 ValvesReference

Pump Rated Output (total)39 GpmReference

Hydraulics Typeclosed-center load sensing (CCLS)Reference

Maximum operating pressure2,900 psiReference

Remote Valves4 (electric)Reference

Rear Hitch maximum lift capacity6,350.3 kgReference

Rear Hitch Sensing Typeelectronic lower link draft sensingReference

PTO

PTO Power150 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540@1,890 RPMReference

Steering & brakes

BrakesHydraulic wet disc brakesReference

Steering typePower steeringReference

Dimensions & weight

Height Over Cab315 cmReference

Overall Length517.1 cmReference

Overall weight7,166.8 kgReference

Rear Axle Length227.7 cmReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
