Tractor · 2013Unverified

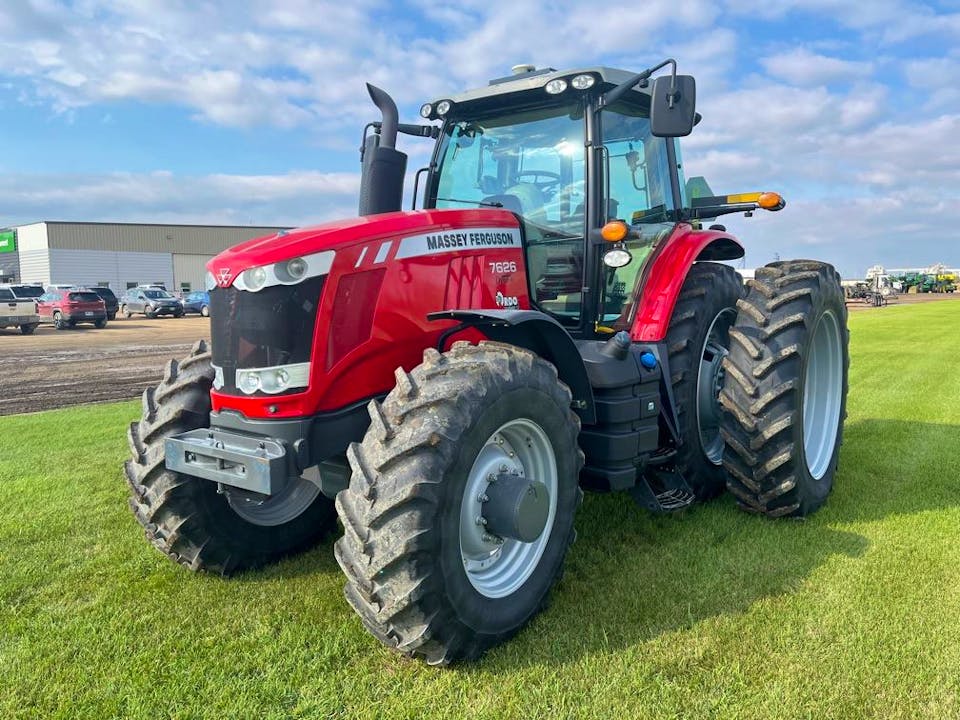

Massey Ferguson 7626
Massey Ferguson 7626 — Row-Crop tractor · 240 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
240 hp
Max power
174.4 kW
Weight
7253 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic standardReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional)Reference
Engine
Sisu 7.4L 6-cyl dieselReference
Engine (net)179.0 kWReference
Drawbar (tested)132.6 kWReference
SisuReference
turbocharged air-to-air aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (net)179.0 kWReference
Fuel systemelectronic high-pressure common railReference
Pre-heatingthermostartReference
Compression17.8:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power174.4 kWReference
Power at rated engine speed153.5 kWReference
Max power132.6 kWReference
Transmission
24-speed six-speed power shiftReference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)145.4 kWReference
PTO (tested)174.4 kWReference
Hydraulic system99.9 LReference
Typeclosed-center load sensing (CCLS)Reference
Capacity99.9 LReference
Pressure200.0 barReference
Valves3 (mechanical)Reference
Valves4 (2 mech, 2 elec)Reference
Valves4 (electric)Reference
SCV flow92.0 lpmReference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Controlelectronic lower link draft sensingReference
Rear lift (at ends)6350 kgReference
Front HitchoptionalReference
DrawbarCat. II with drop pinReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000 (1.375)Reference
Rear PTO Type540/1000/1000E (1.375)Reference
Rear PTO Type540/540E/1000/1000E (1.375)Reference
Engine RPM540@1890Reference
Engine RPM540E@1524Reference
Engine RPM1000@2000Reference
Engine RPM1000E@1595Reference
Power at rated PTO speed172.9 kWReference
Capacities
Fuel431.5 LReference
Exhaust fluid (DEF)53.0 LReference
Max capacity14000 kgReference
Dimensions
Wheelbase297 cmReference
Weight7253 kgReference
Length517 cmReference
Height (cab)306 cmReference
Height (cab)314 cmReference
Front axle4WDReference
Front axleQuadLink Suspended 4WDReference
Bar rear axle2201 mmReference
Long bar rear axle3002 mmReference
Shipping7253 kgReference
Max Drawbar1599 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps175 (option)Reference
Charging amps240 (dual 120 option)Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel Dyna-6 4WDOctober 2012 - November 2012, Link: OCED Tractor Test 2755 fileReference
PTO performanceReference
Fuel use48.1 l/hourReference
Fuel use44.7 l/hourReference
Fuel use47.3 l/hourReference
Drawbar performanceReference
Fuel use42.8 l/hourReference
Gear 3A used for power test.Reference
Max pull8055 kgReference
Gear 1D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
