Tractor · 2015Unverified

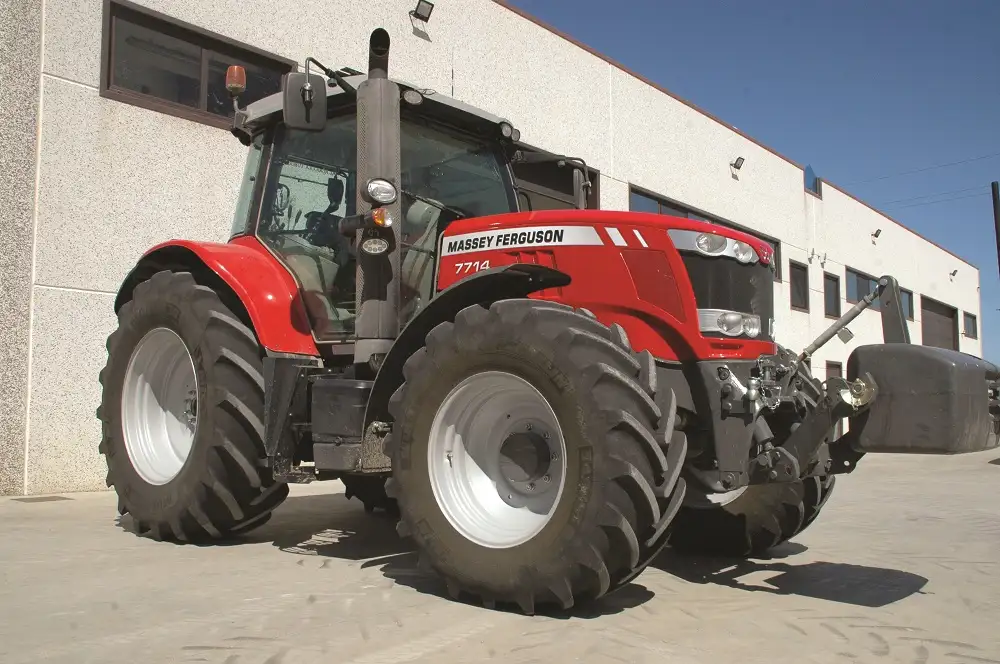

Massey Ferguson 7714
Massey Ferguson 7714 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
102.0 kW
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price was $131,993 in 2015 with Dyna-4, ClassicReference
Four-wheel driveReference
Differential lockfull-locking electro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. AGCOMMAND readyReference
Engine
AGCO POWER 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Exhaust fluid (DEF)30.3 LReference
Engine (gross)96.9 kWReference
Drawbar (tested)81.1 kWReference
AGCO POWERReference
turbocharged air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)96.9 kWReference
Fuel systemcommon railReference
Cooling systemelectronic viscous fanReference
Air cleanerdual dry elementReference
StarterelectricReference
Starter volts12Reference
Max power102.0 kWReference
Power at rated engine speed96.5 kWReference
Max power81.1 kWReference
Transmission
16-speed four-speed power shiftReference
TransmissionDyna-4Reference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
PTO (tested)102.0 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Pump flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed100.2 kWReference
Dimensions
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
Diesel Dyna-4 4WDJune 2016 - July 2016, Link: OCED Tractor Test 2994 fileReference
PTO performanceReference
Fuel use29.1 l/hourReference
Fuel use29.5 l/hourReference
Drawbar performanceReference
Gear 3A used for power test.Reference
Max pull5821 kgReference
Gear 1D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
