Tractor · 2015Unverified

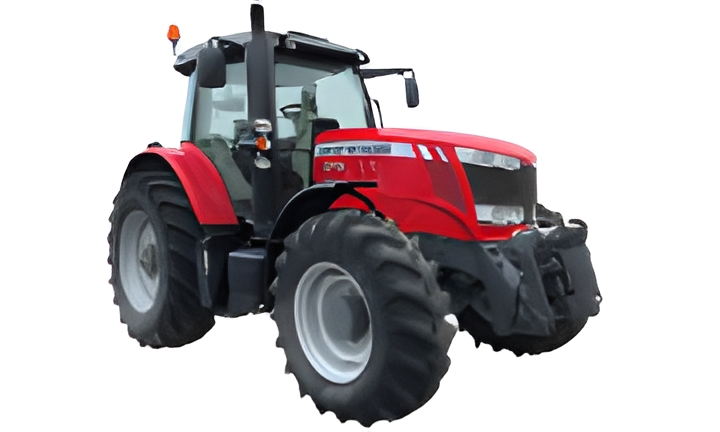

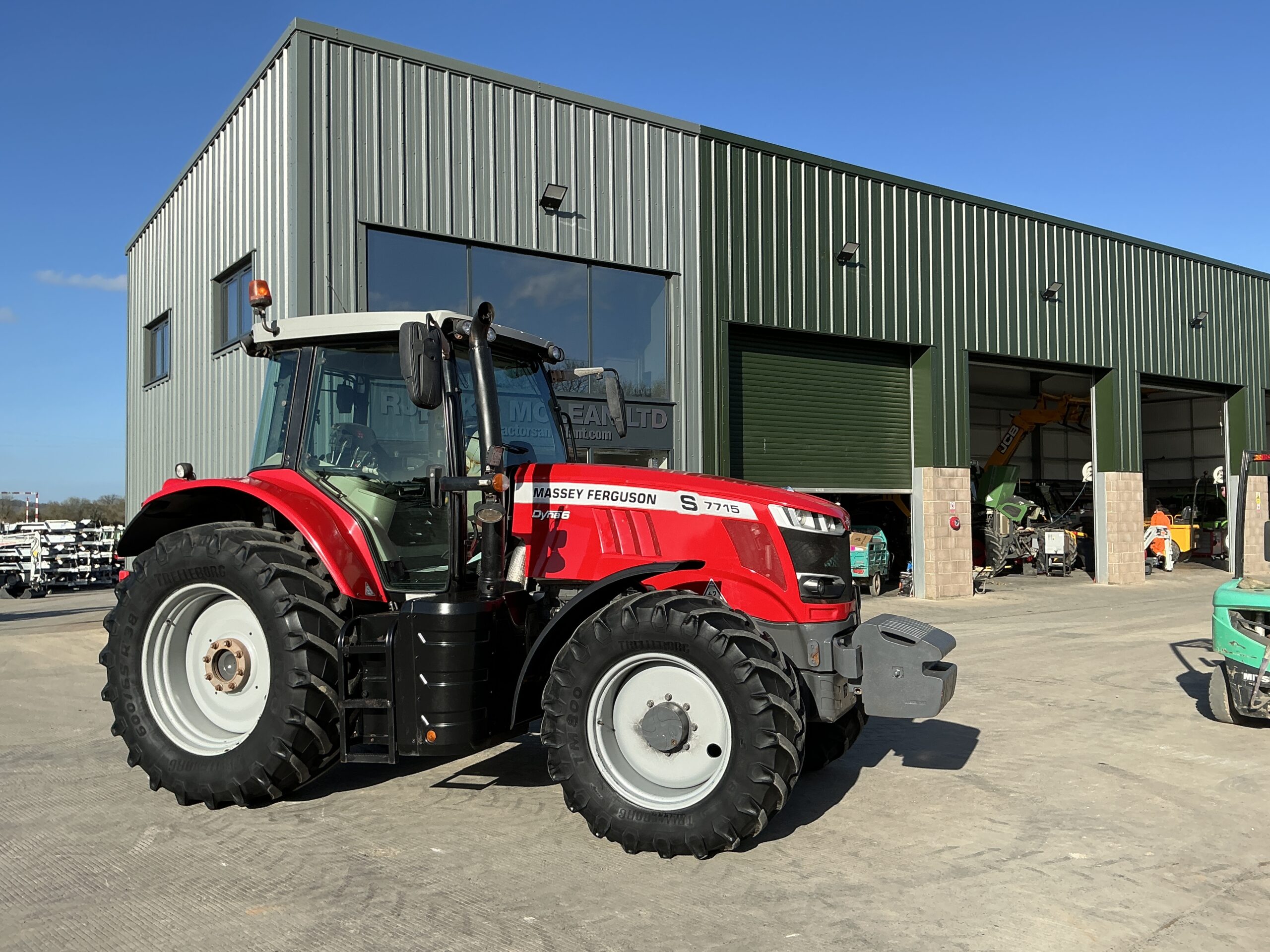

Massey Ferguson 7715

Name: Massey Ferguson 7715
Brand: Massey Ferguson

Massey Ferguson 7715 — Row-Crop tractor · 140 hp. Reference specifications; pending source verification.

The Massey Ferguson 7715 is a high-powered tractor, rated at 140 hp, and is situated among the more powerful machines in its class. Manufactured from 2015 to 2018, it is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and features a four-wheel drive system paired with a continuously variable transmission. The tractor is designed for use on land areas of approximately 200–800 ac. Detailed specifications for the 7715 are provided in both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

140 hp

Max power

105.9 kW

Catalogue coverage

Variants represented

Richest spec table

131 rows

Recorded power

140 hp

Transmissions

16-speed four-speed power shift

Production years

2015-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price$134,998 (2015 Dyna-4 Classic )Reference

Original price$174,867 (2015 Dyna-VT Premium )Reference

Four-wheel driveReference

Differential lockfull-locking electro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. AGCOMMAND readyReference

Engine

AGCO POWER 6.6L 6-cyl dieselReference

Fuel tank310.4 LReference

Exhaust fluid (DEF)30.3 LReference

Engine (gross)104.4 kWReference

Drawbar (tested)82.6 kWReference

AGCO POWERReference

turbocharged air-to-air aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Power (gross)104.4 kWReference

Fuel systemcommon railReference

Cooling systemelectronic viscous fanReference

Air cleanerdual dry elementReference

StarterelectricReference

Starter volts12Reference

Max power105.9 kWReference

Power at rated engine speed101.8 kWReference

Max power82.6 kWReference

Max power104.5 kWReference

Power at rated engine speed100.4 kWReference

Max power80.2 kWReference

Max power110.6 kWReference

Power at rated engine speed103.0 kWReference

Max power78.1 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Emissions complianceTier 4 | selective catalytic reduction (SCR)Reference

Bore and stroke4.252x4.724 inchesReference

Transmission

16-speed four-speed power shiftReference

24-speed six-speed power shiftReference

continuously-variable transmission (CVT)Reference

TransmissionDyna-4Reference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

TransmissionDyna-VTReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (tested)110.6 kWReference

Typeclosed center load sensingReference

Pressure200.0 barReference

Pump flow109.8 lpmReference

Rear TypeIII/IIReference

Controlelectronic lower-link draft sensingReference

DrawbarCat. 2Reference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Rear PTO Type540E/1000E/1000Reference

Rear PTO Type540/540E/1000/1000EReference

Power at rated PTO speed103.0 kWReference

Power at rated PTO speed101.1 kWReference

Power at rated PTO speed108.5 kWReference

Dimensions

Front tire380/85R28Reference

Rear tire460/85R38Reference

Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Flange rear axleReference

Bar rear axle82 by 2032 mmReference

Bar rear axle94 by 2286 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Charging amps240Reference

Batteries2Reference

Battery CCA600Reference

Battery volts12Reference

Total cold cranking amps600 CCAReference

Test results

OECD 2995: diesel Dyna-4 4WDReference

OECD 2991: diesel Dyna-6 4WDReference

OECD 2988: diesel Dyna-VT 4WDReference

Diesel Dyna-4 4WDJune 2016 - July 2016, Link: OCED Tractor Test 2995 fileReference

PTO performanceReference

Fuel use30.3 l/hourReference

Drawbar performanceReference

Fuel use28.4 l/hourReference

Gear 3A used for power test.Reference

Max pull6046 kgReference

Gear 2A used for pull test.Reference

Diesel Dyna-6 4WDMay 2016 - August 2016, Link: OCED Tractor Test 2991 fileReference

Fuel use29.1 l/hourReference

Fuel use29.5 l/hourReference

Max pull6066 kgReference

Gear 1E used for pull test.Reference

Diesel Dyna-VT 4WDJuly 2016 - August 2016, Link: OCED Tractor Test 2988 fileReference

Fuel use32.2 l/hourReference

Fuel use31.0 l/hourReference

Fuel use30.7 l/hourReference

Pull at 7.94 KPHReference

Max pull6862 kgReference

Pull at 2.80 KPHReference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCat. 2Reference

Rear Axle TypeFlange | BarReference

Country of manufacturerFranceReference

Capacities

Capacity402.5 ciReference

Diesel exhaust fluid (DEF) tank30.3 LReference

PTO

PTO Power120 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesWet DiscReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)29 gpmReference

Hydraulics TypeClosed Center Load SensingReference

Maximum operating pressure2,900 psiReference

Rear Hitch category (SAE designation)Category III/IIReference

Rear Hitch Sensing Typeelectronic lower-link draft sensingReference

Wheels & tyres

Rear Wheel Type460/85R38Reference

Front Wheel Type380/85R28.Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
