Tractor · 2018Unverified

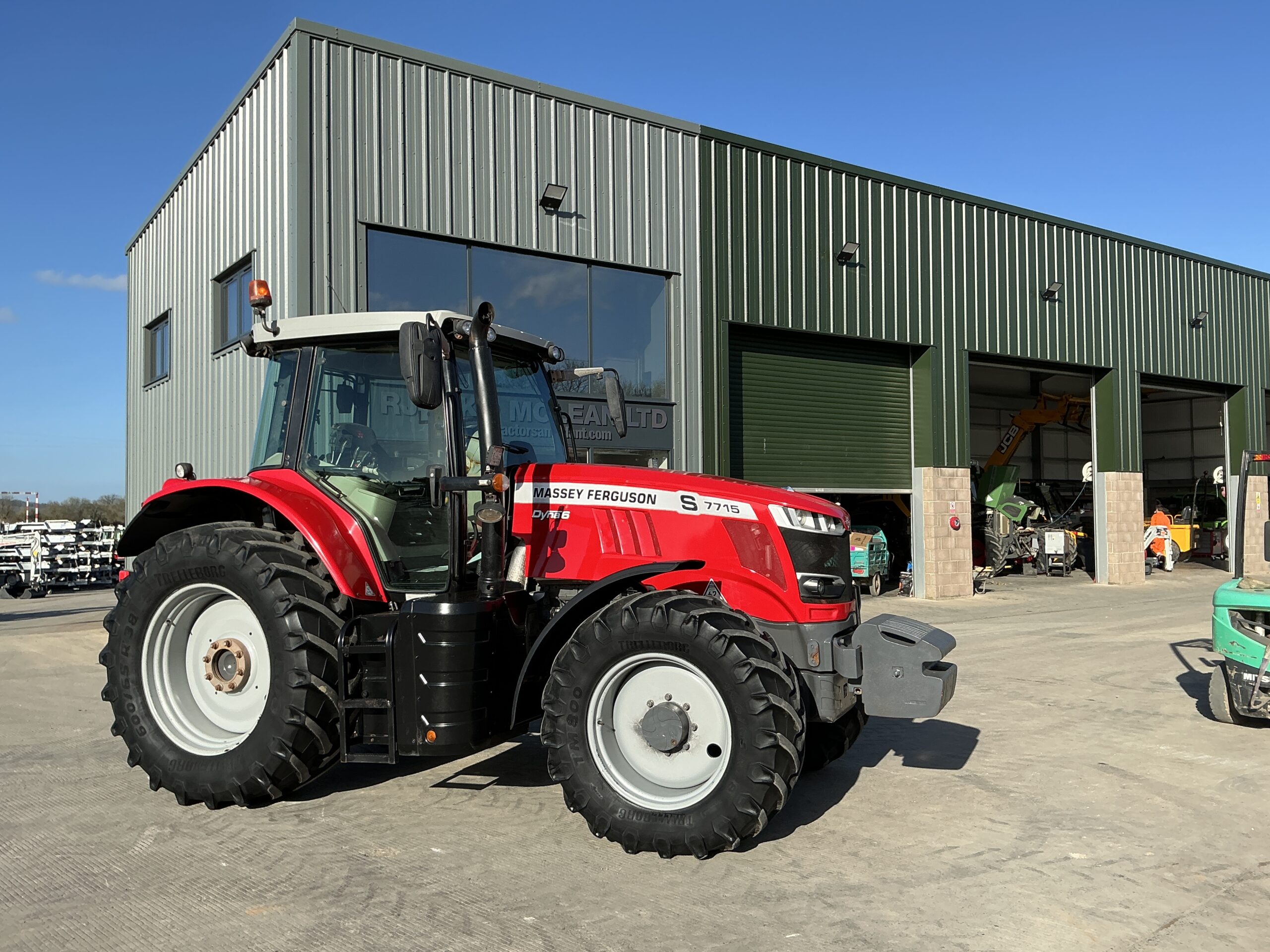

Massey Ferguson 7715S

Name: Massey Ferguson 7715S
Brand: Massey Ferguson

Massey Ferguson 7715S — Row-Crop tractor · 135 hp. Reference specifications; pending source verification.

The Massey Ferguson 7715S is a tractor model with a power rating of 135 hp, positioning it at the higher end of its class. It was manufactured from 2018 to 2021. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. It has an operating weight of 12786 to 14197 pounds and is suitable for operations on 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

135 hp

Max power

104.5 kW

Weight

12786 to 14197 pounds

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

135 hp

Transmissions

24-speed six-speed power shift

Production years

2018-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

FactoriesJackson, Minnesota, USAReference

FactoriesBeauvais, FranceReference

Original price was $172,291 in 2021 with Dyna-6Reference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning. Available cab suspension. Massey Ferguson auto-guidance readyReference

Engine

AGCO Power 6.6L 6-cyl dieselReference

Fuel tank310.4 LReference

Exhaust fluid (DEF)30.3 LReference

Engine104.4 kWReference

Drawbar (tested)80.2 kWReference

AGCO Power 66 AWFReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IVReference

Power104.4 kWReference

Maximum Power111.9 kWReference

Idle RPM850-2100Reference

Torque918.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Max power104.5 kWReference

Power at rated engine speed100.4 kWReference

Max power80.2 kWReference

Max power110.6 kWReference

Power at rated engine speed103.0 kWReference

Max power78.1 kWReference

Transmission

24-speed six-speed power shiftReference

continuously-variable transmissionReference

48-speed creeperReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power shift gears (A-F) in four ranges (1-4)Reference

TransmissionDyna-VTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

TransmissionDyna-6 CreeperReference

TypecreeperReference

Gears48 forward and reverseReference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (tested)110.6 kWReference

Typeclosed-center load-sensingReference

Pressure200.0 barReference

Rear valves2 or 3Reference

Front valves0 to 3Reference

Pump flow109.8 lpmReference

Pump flow189.2 lpmReference

Rear TypeIII/IIReference

Controlelectronic draft controlReference

Dyna-6 Rear lift (at ends)5599 kgReference

Dyna-VT Rear lift (at ends)7400 kgReference

Front lift (at ends)2799 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1980Reference

Engine RPM540E@1530Reference

Engine RPM1000@2030Reference

Engine RPM1000E@1570Reference

Power at rated PTO speed101.1 kWReference

Power at rated PTO speed108.5 kWReference

Dimensions

Wheelbase287 cmReference

Weight12786 to 14197 poundsReference

Front tire380/85R28Reference

Rear tire460/85R38Reference

Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Length492 cmReference

Width255 cmReference

Height (cab)302 cmReference

Height (exhaust)300 cmReference

Flange rear axleReference

Bar rear axleReference

Front tread134 to 223 cmReference

5799 kgReference

6439 kgReference

Massey Ferguson 7715S attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Massey Ferguson FL4227 loaderReference

Massey Ferguson FL4327 loaderReference

Capacities

Max capacity12499 kgReference

Test results

OECD 2991: diesel Dyna-6 4WDReference

OECD 2988: diesel Dyna-VT 4WDReference

Diesel Dyna-6 4WDMay 2016 - August 2016, Link: OCED Tractor Test 2991 fileReference

PTO performanceReference

Fuel use29.1 l/hourReference

Drawbar performanceReference

Fuel use29.5 l/hourReference

Gear 3A used for power test.Reference

Max pull6066 kgReference

Gear 1E used for pull test.Reference

Diesel Dyna-VT 4WDJuly 2016 - August 2016, Link: OCED Tractor Test 2988 fileReference

Fuel use32.2 l/hourReference

Fuel use31.0 l/hourReference

Fuel use30.7 l/hourReference

Pull at 7.94 KPHReference

Max pull6862 kgReference

Pull at 2.80 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
