Tractor · 2015Unverified

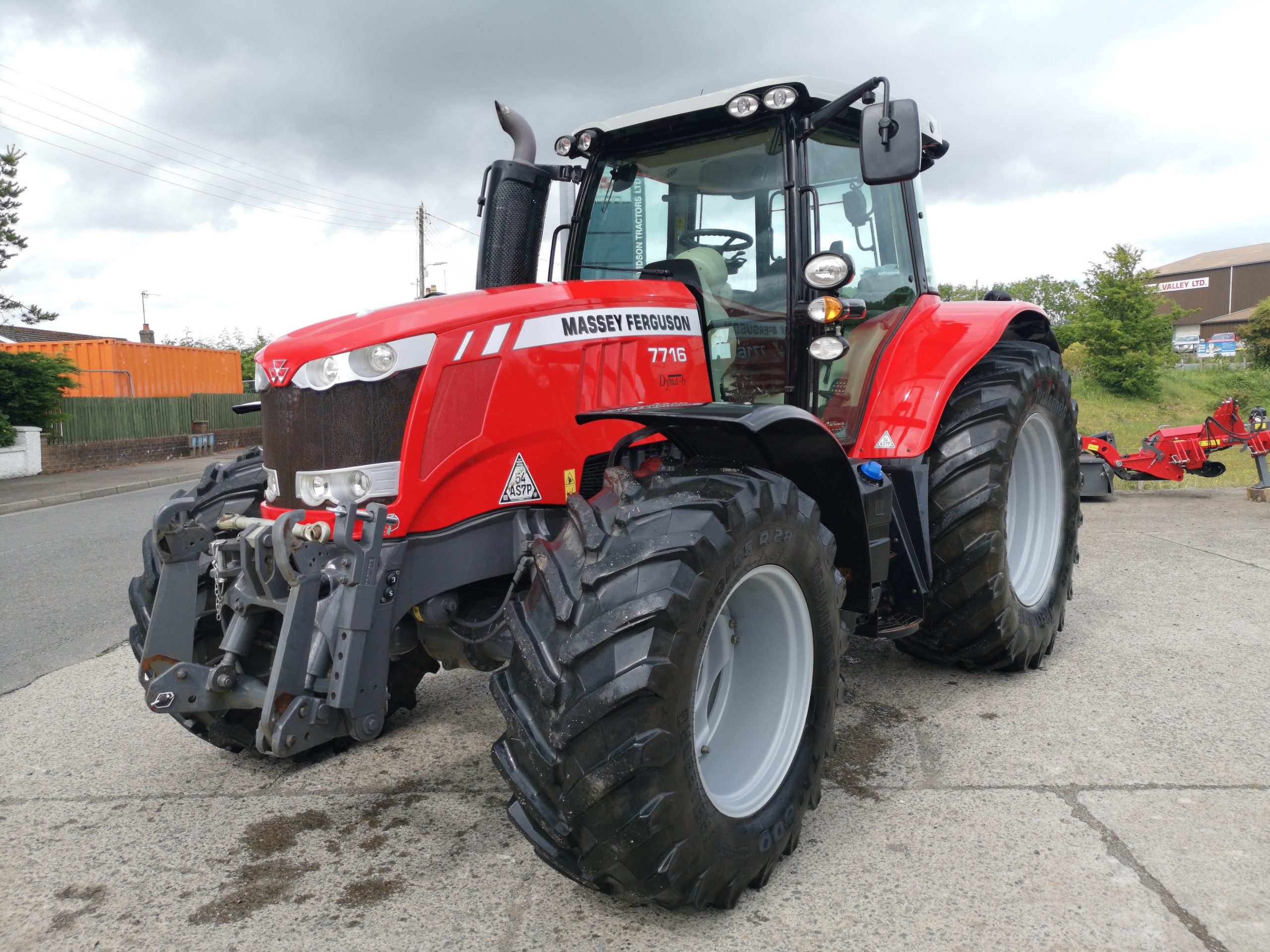

Massey Ferguson 7716
Massey Ferguson 7716 — Row-Crop tractor · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Max power
112.0 kW
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$140,443 (2015 Dyna-6 Classic )Reference
Original price$180,877 (2015 Dyna-VT Premium )Reference
Four-wheel driveReference
Differential lockfull-locking electro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. AGCOMMAND readyReference
Engine
AGCO POWER 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Exhaust fluid (DEF)30.3 LReference
Engine (gross)111.9 kWReference
Drawbar (tested)84.9 kWReference
AGCO POWERReference
turbocharged air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)111.9 kWReference
Fuel systemcommon railReference
Cooling systemelectronic viscous fanReference
Air cleanerdual dry elementReference
StarterelectricReference
Starter volts12Reference
Max power112.0 kWReference
Power at rated engine speed105.2 kWReference
Max power84.1 kWReference
Max power115.5 kWReference
Power at rated engine speed110.0 kWReference
Max power84.9 kWReference
Transmission
24-speed six-speed power shiftReference
continuously-variable transmission (CVT)Reference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionDyna-VTReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
PTO (tested)115.5 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Pump flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower-link draft sensingReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000E/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed111.4 kWReference
Power at rated PTO speed113.5 kWReference
Dimensions
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Flange rear axleReference
Bar rear axle82 by 2032 mmReference
Bar rear axle94 by 2286 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
OECD 2992: diesel Dyna-6 4WDReference
OECD 2989: diesel Dyna-VT 4WDReference
Diesel Dyna-6 4WDMay 2016 - August 2016, Link: OCED Tractor Test 2992 fileReference
PTO performanceReference
Fuel use30.7 l/hourReference
Fuel use31.8 l/hourReference
Drawbar performanceReference
Gear 3A used for power test.Reference
Max pull6180 kgReference
Gear 1F used for pull test.Reference
Diesel Dyna-VT 4WDJuly 2016 - August 2016, Link: OCED Tractor Test 2989 fileReference
Fuel use33.3 l/hourReference
Fuel use32.6 l/hourReference
Fuel use32.2 l/hourReference
Fuel use34.1 l/hourReference
Pull at 7.86 KPHReference
Max pull7014 kgReference
Pull at 4.14 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
