Massey Ferguson 7716S
Massey Ferguson 7716S — Row-Crop tractor · 141 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
141 hp
Max power
112.0 kW
Weight
12786 to 14197 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
FactoriesJackson, Minnesota, USAReference
FactoriesBeauvais, FranceReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning. Available cab suspension. Massey Ferguson auto-guidance readyReference
Engine
AGCO Power 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Exhaust fluid (DEF)30.3 LReference
Engine111.9 kWReference
Drawbar (tested)84.9 kWReference
AGCO Power 66 AWFReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Power111.9 kWReference
Maximum Power119.3 kWReference
Idle RPM850-2100Reference
Torque983.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power112.0 kWReference
Power at rated engine speed105.2 kWReference
Max power84.1 kWReference
Max power115.5 kWReference
Power at rated engine speed110.0 kWReference
Max power84.9 kWReference
Transmission
24-speed six-speed power shiftReference
continuously-variable transmissionReference
48-speed creeperReference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power shift gears (A-F) in four ranges (1-4)Reference
TransmissionDyna-VTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
TransmissionDyna-6 CreeperReference
TypecreeperReference
Gears48 forward and reverseReference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
PTO (tested)115.5 kWReference
Typeclosed-center load-sensingReference
Pressure200.0 barReference
Rear valves2 or 3Reference
Front valves0 to 3Reference
Pump flow109.8 lpmReference
Pump flow189.2 lpmReference
Rear TypeIII/IIReference
Controlelectronic draft controlReference
Dyna-6 Rear lift (at ends)5599 kgReference
Dyna-VT Rear lift (at ends)7400 kgReference
Front lift (at ends)2799 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1980Reference
Engine RPM540E@1530Reference
Engine RPM1000@2030Reference
Engine RPM1000E@1570Reference
Power at rated PTO speed111.4 kWReference
Power at rated PTO speed113.5 kWReference
Dimensions
Wheelbase287 cmReference
Weight12786 to 14197 poundsReference
Length492 cmReference
Width255 cmReference
Height (cab)302 cmReference
Height (exhaust)300 cmReference
Flange rear axleReference
Bar rear axleReference
Front tread134 to 223 cmReference
5799 kgReference
6439 kgReference
Massey Ferguson 7716S attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Massey Ferguson FL4227 loaderReference

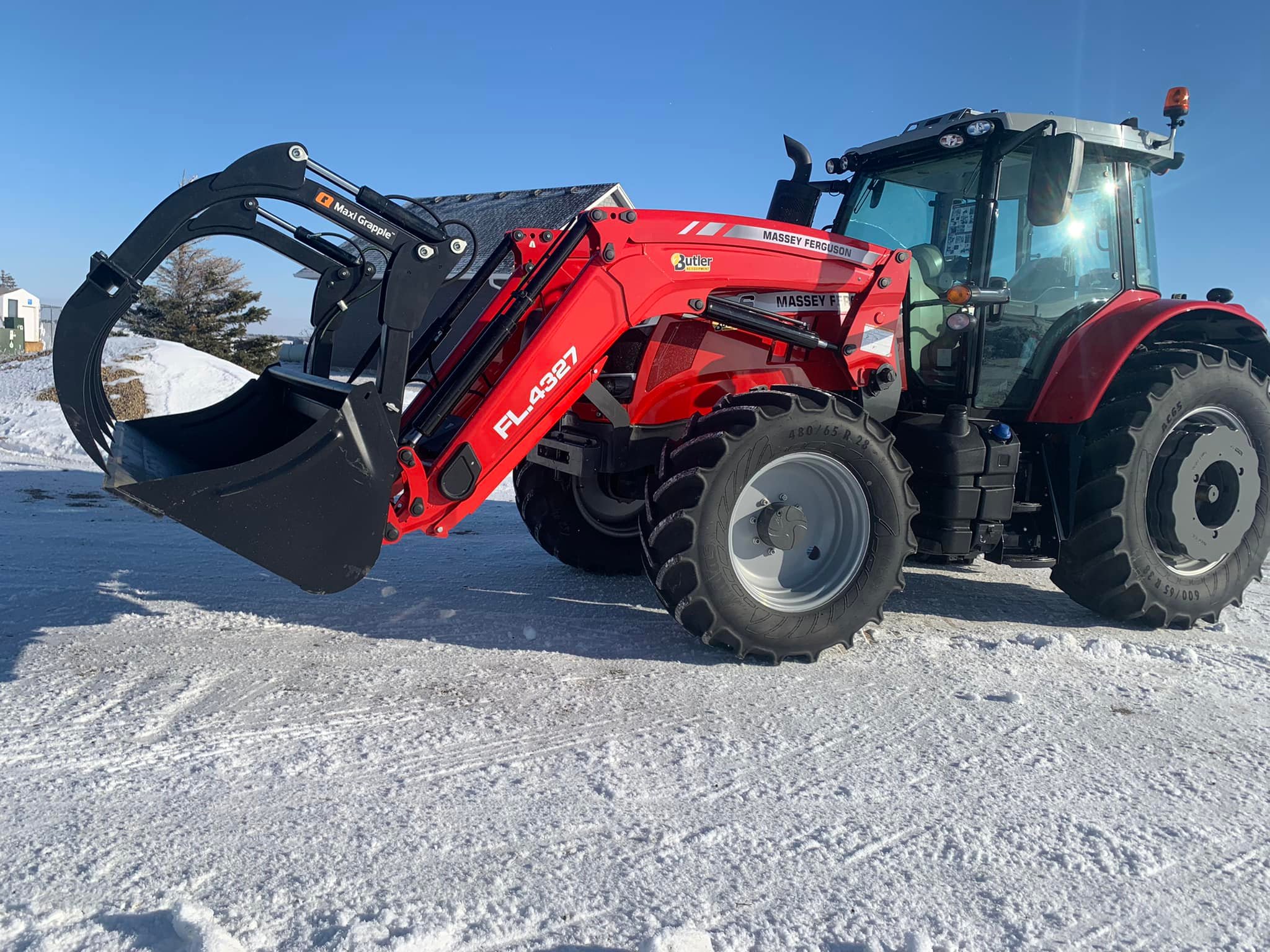

Massey Ferguson FL4327 loaderReference
Capacities
Max capacity12499 kgReference
Test results
OECD 2992: diesel Dyna-6 4WDReference
OECD 2989: diesel Dyna-VT 4WDReference
Diesel Dyna-6 4WDMay 2016 - August 2016, Link: OCED Tractor Test 2992 fileReference
PTO performanceReference
Fuel use30.7 l/hourReference
Fuel use31.8 l/hourReference
Drawbar performanceReference
Gear 3A used for power test.Reference
Max pull6180 kgReference
Gear 1F used for pull test.Reference
Diesel Dyna-VT 4WDJuly 2016 - August 2016, Link: OCED Tractor Test 2989 fileReference
Fuel use33.3 l/hourReference
Fuel use32.6 l/hourReference
Fuel use32.2 l/hourReference
Fuel use34.1 l/hourReference
Pull at 7.86 KPHReference
Max pull7014 kgReference
Pull at 4.14 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
