Tractor · 2015Unverified

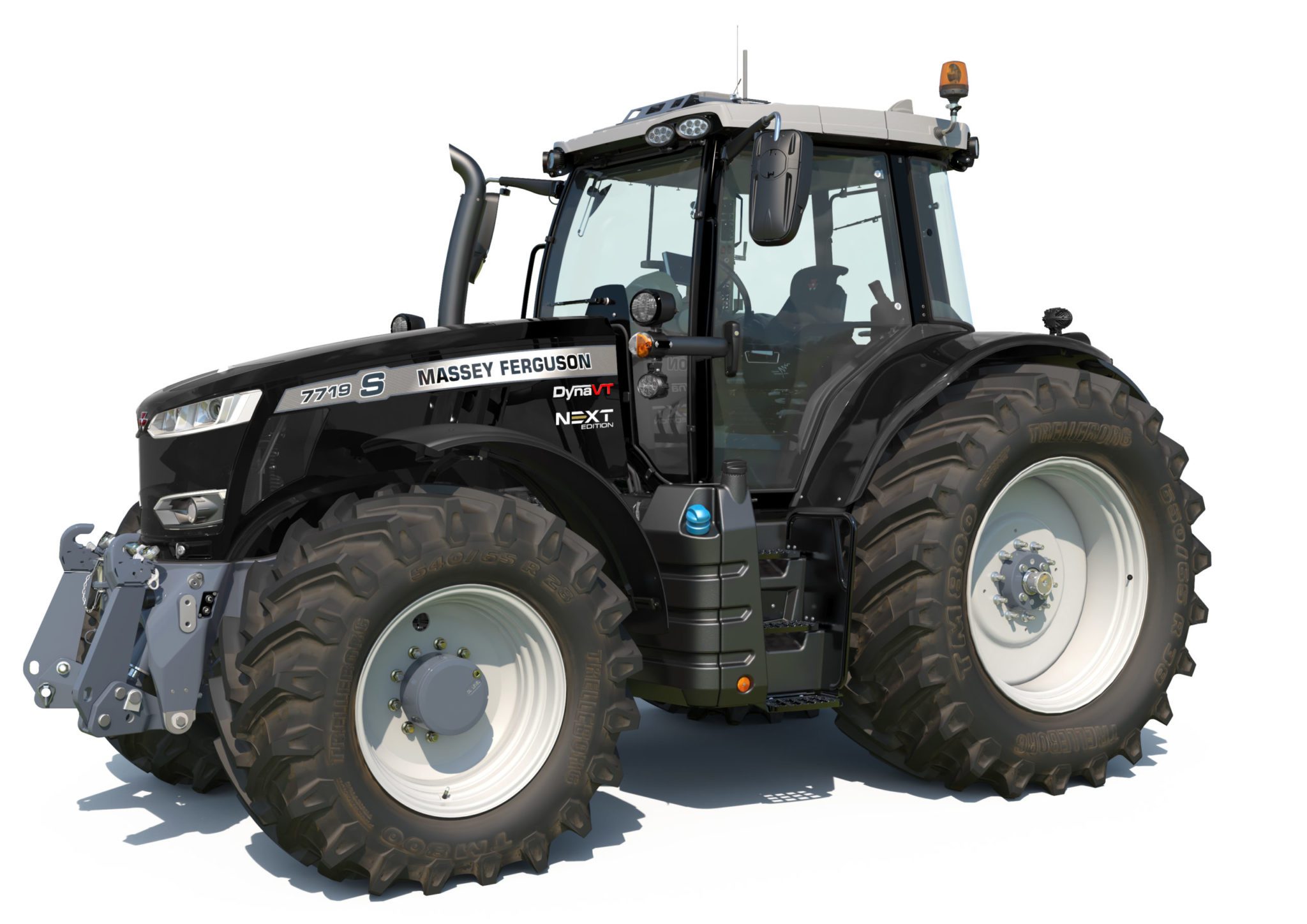

Massey Ferguson 7719

Name: Massey Ferguson 7719
Brand: Massey Ferguson

Massey Ferguson 7719 — Row-Crop tractor · 170 hp. Reference specifications; pending source verification.

The Massey Ferguson 7719 is a high-powered tractor model, rated at approximately 170 hp, which places it at the upper end of its class. It was in production from 2015 to 2018. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its operating weight is listed as 6999 kg, and it is suitable for operations on 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

170 hp

Max power

137.7 kW

Weight

6999 kg

Catalogue coverage

Variants represented

Richest spec table

134 rows

Recorded power

170 hp

Recorded weight

6999 kg

Transmissions

24-speed six-speed power shift

Production years

2015-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price$152,175 (2015 Dyna-6 Classic )Reference

Original price$197,604 (2015 Dyna-VT Premium )Reference

Four-wheel driveReference

Differential lockfull-locking electro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning. AGCOMMAND readyReference

Engine

AGCO POWER 6.6L 6-cyl dieselReference

Engine (gross)126.8 kWReference

Drawbar (tested)98.2 kWReference

AGCO POWER AP66-4Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Power (gross)126.8 kWReference

Maximum Power138.0 kWReference

Fuel systemcommon railReference

Cooling systemelectronic viscous fanReference

Air cleanerdual dry elementReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power137.7 kWReference

Power at rated engine speed120.1 kWReference

Max power96.6 kWReference

Max power132.4 kWReference

Power at rated engine speed113.2 kWReference

Max power98.2 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier 4 | selective catalytic reduction (SCR)Reference

Bore and stroke4.252x4.724 inchesReference

Transmission

24-speed six-speed power shiftReference

continuously-variable transmission (CVT)Reference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

TransmissionDyna-VTReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)108.1 kWReference

PTO (tested)137.7 kWReference

Hydraulic system99.9 LReference

Typeclosed center load sensingReference

Capacity99.9 LReference

Pressure200.0 barReference

Valves3 to 5Reference

Pump flow109.8 lpmReference

Pump flow147.6 lpmReference

Pump flow189.2 lpmReference

SCV flow92.0 lpmReference

Rear TypeIIIReference

Controlelectronic lower-link draft sensingReference

Rear lift (at ends)6123 kgReference

Rear lift (at ends)7030 kgReference

Front HitchIIINReference

Front lift (at ends)3607 kgReference

DrawbarCat. 2Reference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Rear PTO Type540E/1000E/1000Reference

Rear PTO Type540/540E/1000/1000EReference

Power at rated PTO speed135.2 kWReference

Power at rated PTO speed127.0 kWReference

Capacities

Fuel431.5 LReference

Exhaust fluid (DEF)53.0 LReference

Fuel tank431.5 LReference

Diesel exhaust fluid (DEF) tank53 LReference

Dimensions

Weight6999 kgReference

Front tire420/85R28Reference

Rear tire480/80R42Reference

Standard tires (ag)Front: 420/85R28. Rear: 480/80R42Reference

Bar rear axle94 by 2844 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Charging amps240Reference

Batteries2Reference

Battery CCA600Reference

Battery volts12Reference

Total cold cranking amps600 CCAReference

Test results

OECD 2948: diesel Dyna-VT 4WDReference

OECD 2946: diesel Dyna-6 4WDReference

Diesel Dyna-VT 4WDFebruary 2016 - 2016, Link: OCED Tractor Test 2948 fileReference

PTO performanceReference

Fuel use37.1 l/hourReference

Fuel use34.4 l/hourReference

Drawbar performanceReference

Fuel use35.6 l/hourReference

Pull at 7.71 KPHReference

Max pull7300 kgReference

Pull at 2.71 KPHReference

Diesel Dyna-6 4WDFebruary 2016 - March 2016, Link: OCED Tractor Test 2946 fileReference

Fuel use32.9 l/hourReference

Fuel use33.3 l/hourReference

Gear 3A used for power test.Reference

Max pull7178 kgReference

Gear 1E used for pull test.Reference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCat. 2Reference

Rear Axle TypeBarReference

Country of manufacturerFranceReference

Power

Rated Power170 hpReference

PTO

PTO Power145 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesWet DiscReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)50 gpmReference

Hydraulics TypeClosed Center Load SensingReference

Maximum operating pressure2,900 psiReference

Remote Valves3 to 5 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity7,030.7 kgReference

Rear Hitch Sensing Typeelectronic lower-link draft sensingReference

Front Hitch category (SAE designation)Category IIINReference

Dimensions & weight

Overall weight6,998.9 kgReference

Wheels & tyres

Rear Wheel Type480/80R42Reference

Front Wheel Type420/85R28.Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
