Tractor · 2018Unverified

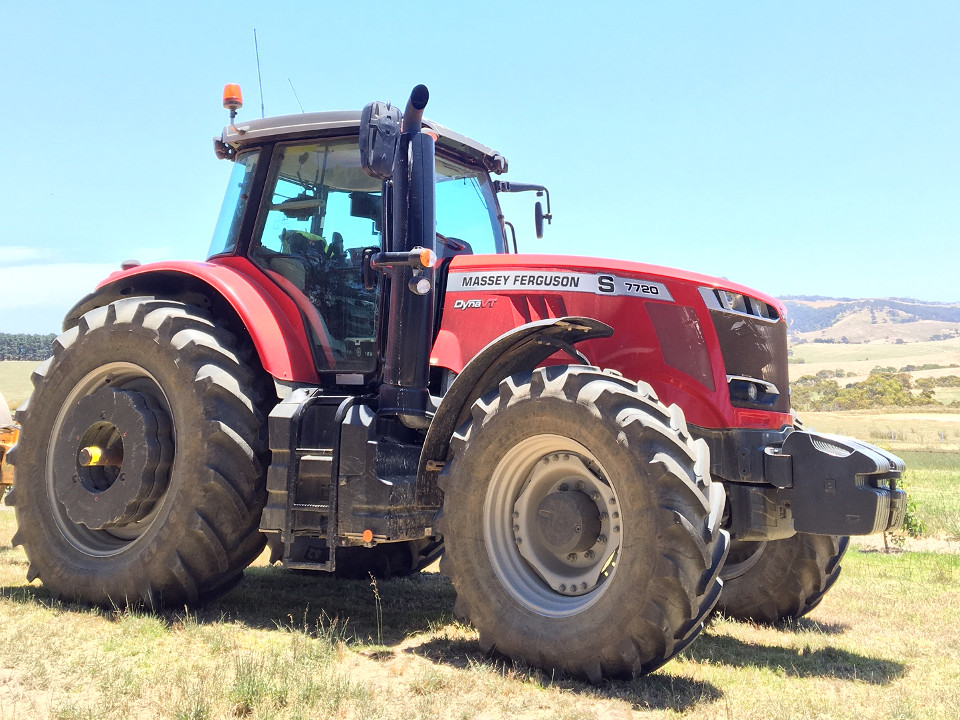

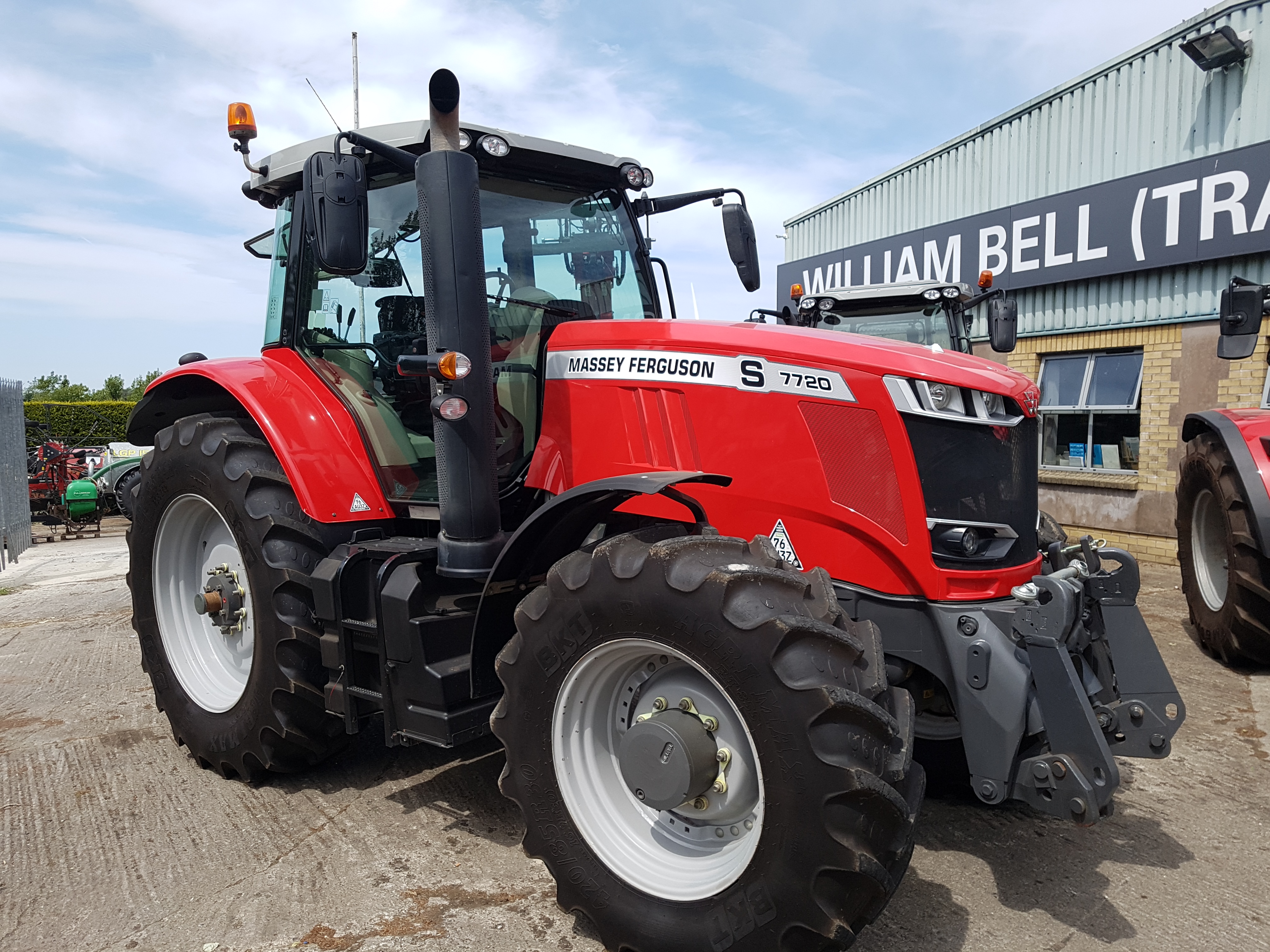

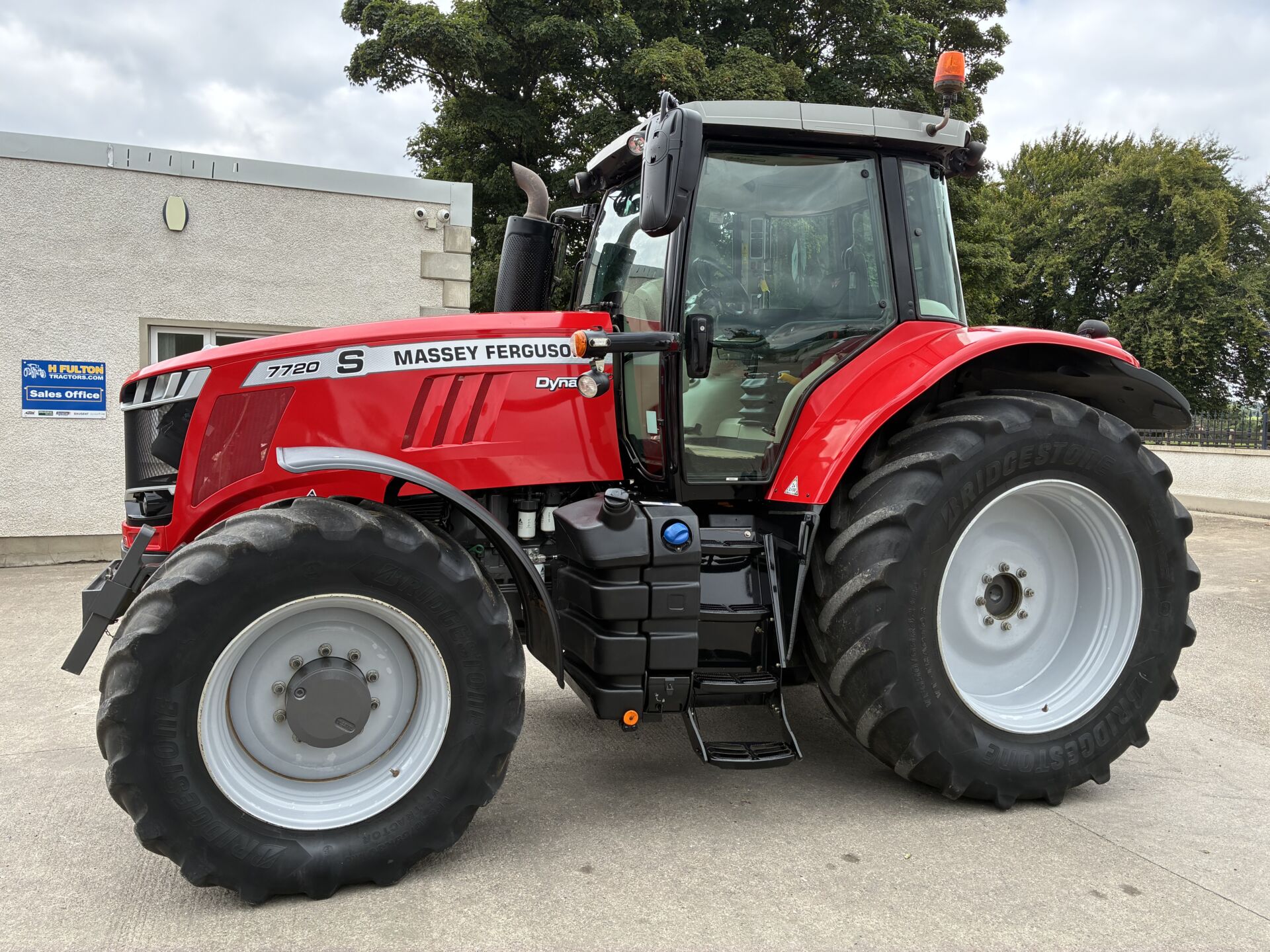

Massey Ferguson 7720S

Name: Massey Ferguson 7720S
Brand: Massey Ferguson

Massey Ferguson 7720S — Row-Crop tractor · 155 hp. Reference specifications; pending source verification.

The Massey Ferguson 7720S is a tractor with a power rating of 155 horsepower, placing it at the higher end of its class. It was manufactured from 2018 to 2021 and features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The 7720S has a listed operating weight of 7499 kg and is suited to operations of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

155 hp

Weight

7499 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

155 hp

Recorded weight

7499 kg

Transmissions

24-speed six-speed power shift

Production years

2018-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

FactoriesJackson, Minnesota, USAReference

FactoriesBeauvais, FranceReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning. Available cab suspension. Massey Ferguson auto-guidance readyReference

Engine

AGCO Power 6.6L 6-cyl dieselReference

Fuel tank431.5 LReference

Exhaust fluid (DEF)39.7 LReference

Engine138.0 kWReference

AGCO Power 66 AWFReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsTier IVReference

Power138.0 kWReference

Maximum Power149.1 kWReference

Idle RPM850-2100Reference

Torque1251.6 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed six-speed power shiftReference

continuously-variable transmissionReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power shift gears (A-F) in four ranges (1-4)Reference

TransmissionDyna-VTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)115.6 kWReference

Typeclosed-center load-sensingReference

Pressure200.0 barReference

Rear valves2 to 5Reference

Front valves0 to 3Reference

Pump flow109.8 lpmReference

Pump flow147.6 lpmReference

Pump flow189.2 lpmReference

Rear TypeIII/IIReference

Controlelectronic draft controlReference

Dyna-6 Rear lift (at ends)6302 kgReference

Dyna-VT Rear lift (at ends)7440 kgReference

Front lift (at ends)3999 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1890Reference

Engine RPM50E@1520Reference

Engine RPM1000@2000Reference

Engine RPM1000E@1600Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Dimensions

Wheelbase297 cmReference

Weight7499 kgReference

Length514 cmReference

Width245 cmReference

Height (cab)312 cmReference

Height (exhaust)312 cmReference

Max weight13999 kgReference

Bar rear axleReference

Front tread134 to 223 cmReference

Massey Ferguson 7720S attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
