Tractor · 2015Unverified

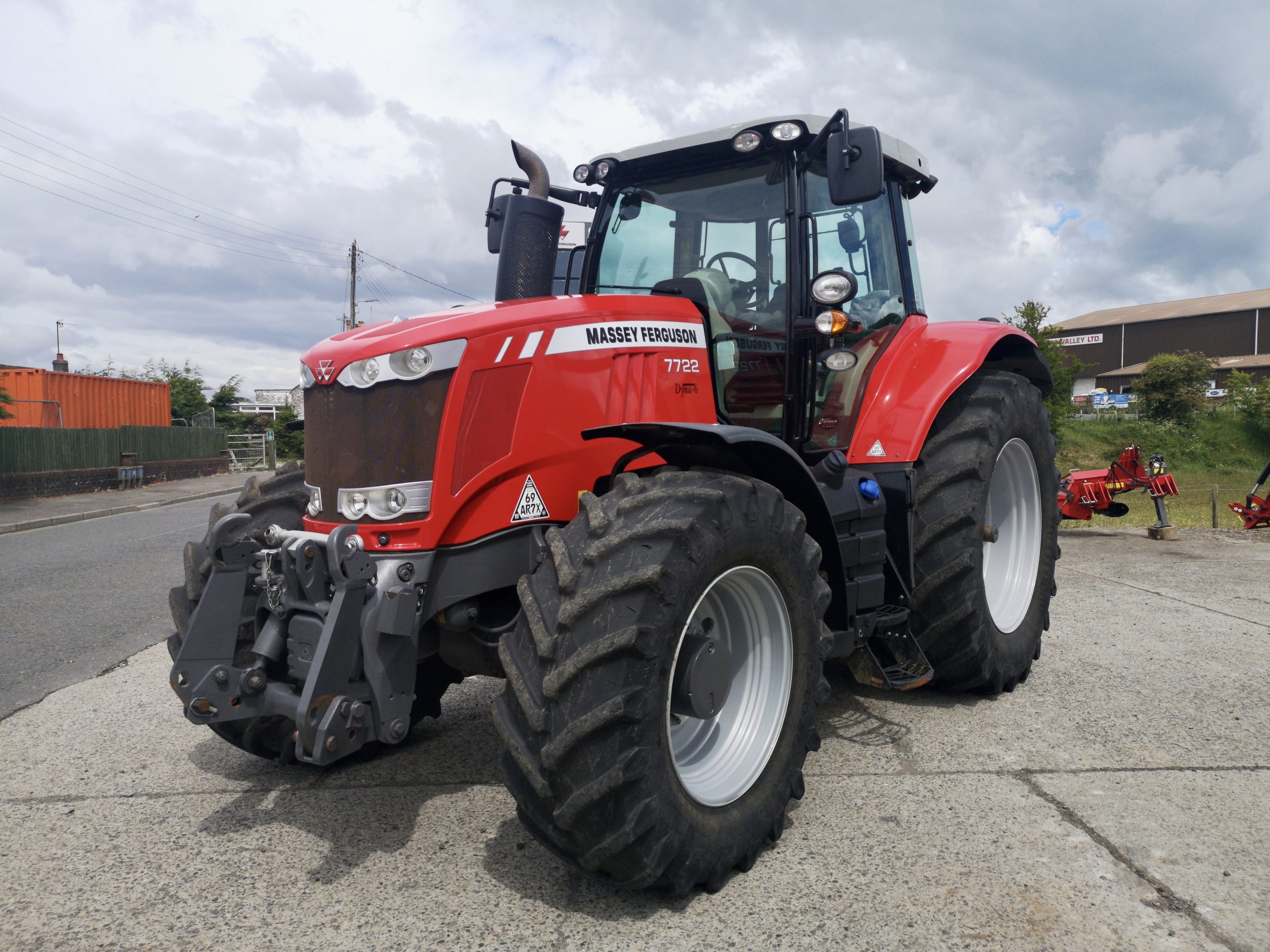

Massey Ferguson 7722
Massey Ferguson 7722 — Row-Crop tractor · 200 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Max power
150.5 kW
Weight
7500 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$167,691 (2015 Dyna-6 Classic )Reference
Original price$213,120 (2015 Dyna-VT Premium )Reference
Four-wheel driveReference
Differential lockfull-locking electro-hydraulicReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning. AGCOMMAND readyReference
Engine
AGCO POWER 7.4L 6-cyl dieselReference
Engine (gross)149.1 kWReference
Drawbar (tested)109.1 kWReference
AGCO POWER AP74-4Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)149.1 kWReference
Maximum Power160.3 kWReference
Fuel systemcommon railReference
Cooling systemelectronic viscous fanReference
Air cleanerdual dry elementReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power150.5 kWReference
Power at rated engine speed131.4 kWReference
Max power109.1 kWReference
Max power153.0 kWReference
Power at rated engine speed137.7 kWReference
Max power106.5 kWReference
Transmission
24-speed six-speed power shiftReference
continuously-variable transmission (CVT)Reference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionDyna-VTReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)123.0 kWReference
PTO (tested)153.0 kWReference
Hydraulic system99.9 LReference
Typeclosed center load sensingReference
Capacity99.9 LReference
Pressure200.0 barReference
Valves3 to 5Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Pump flow189.2 lpmReference
SCV flow92.0 lpmReference
Rear TypeIIIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at ends)6123 kgReference
Rear lift (at ends)7030 kgReference
Front HitchIIINReference
Front lift (at ends)3607 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000E/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed143.2 kWReference
Power at rated PTO speed153.0 kWReference
Capacities
Fuel431.5 LReference
Exhaust fluid (DEF)53.0 LReference
Dimensions
Weight7500 kgReference
Front tire420/85R28Reference
Rear tire480/80R42Reference
Standard tires (ag)Front: 420/85R28. Rear: 480/80R42Reference
Bar rear axle94 by 2844 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
OECD 2935: diesel Dyna-6 4WDReference
OECD 2936: diesel Dyna-VT 4WDReference
Diesel Dyna-6 4WDSeptember 2015 - November 2015, Link: OCED Tractor Test 2935 fileReference
PTO performanceReference
Fuel use41.3 l/hourReference
Fuel use40.1 l/hourReference
Fuel use41.6 l/hourReference
Drawbar performanceReference
Fuel use40.9 l/hourReference
Gear 3B used for power test.Reference
Max pull7046 kgReference
Gear 1C used for pull test.Reference
Diesel Dyna-VT 4WDNovember 2015 - January 2016, Link: OCED Tractor Test 2936 fileReference
Fuel use43.9 l/hourReference
Fuel use43.1 l/hourReference
Pull at 7.76 KPHReference
Max pull7525 kgReference
Pull at 2.64 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
