Tractor · 2018Unverified

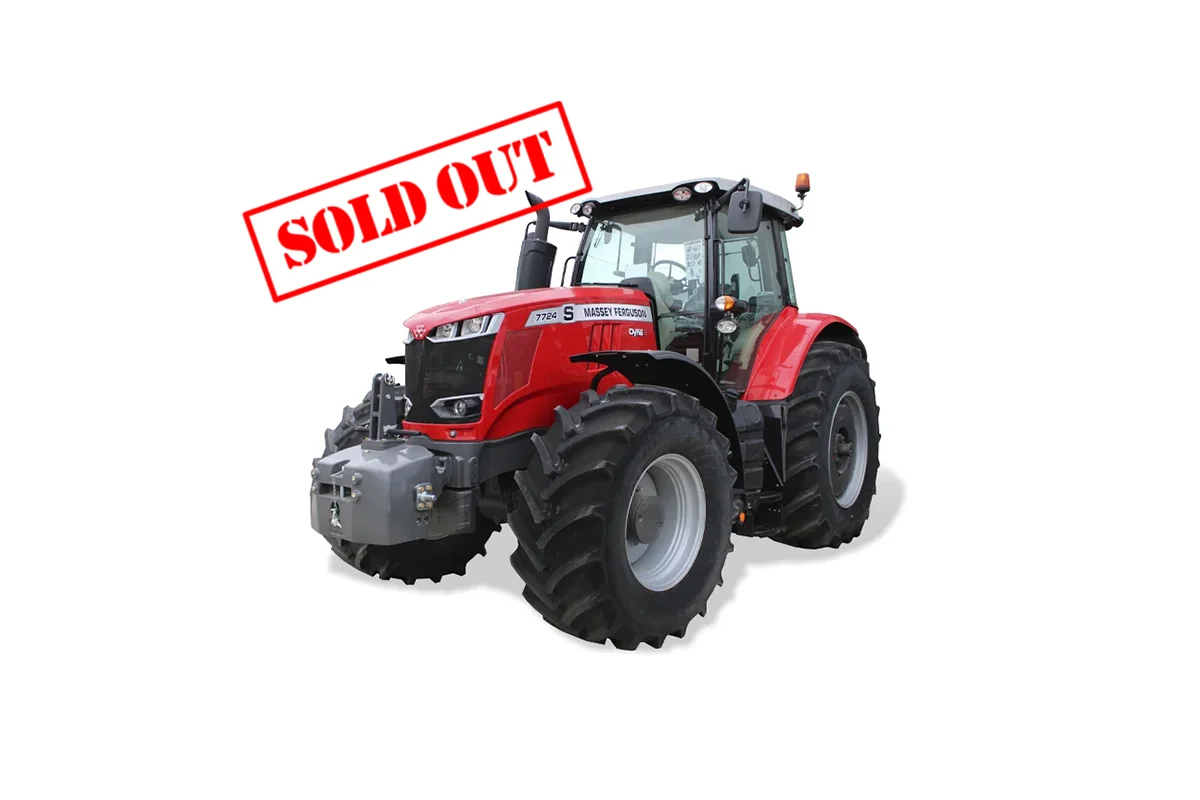

Massey Ferguson 7724S
Massey Ferguson 7724S — Row-Crop tractor · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Weight
8149 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
FactoriesJackson, Minnesota, USAReference
FactoriesBeauvais, FranceReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning. Available cab suspension. Massey Ferguson auto-guidance readyReference
Engine
AGCO Power 7.4L 6-cyl dieselReference
Fuel tank431.5 LReference
Exhaust fluid (DEF)39.7 LReference
Engine164.1 kWReference
AGCO Power 74 AWFReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier IVReference
Power164.1 kWReference
Maximum Power175.2 kWReference
Idle RPM850-2100Reference
Torque1396.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed six-speed power shiftReference
continuously-variable transmissionReference
TransmissionDyna-6Reference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
Six power shift gears (A-F) in four ranges (1-4)Reference
TransmissionDyna-VTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
Typeclosed-center load-sensingReference
Pressure200.0 barReference
Rear valves2 to 5Reference
Front valves0 to 3Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Pump flow189.2 lpmReference
Rear TypeIII/IIReference
Controlelectronic draft controlReference
Dyna-6 Rear lift (at ends)6302 kgReference
Dyna-VT Rear lift (at ends)7440 kgReference
Front lift (at ends)3999 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1890Reference
Engine RPM50E@1520Reference
Engine RPM1000@2000Reference
Engine RPM1000E@1600Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Dimensions
Wheelbase297 cmReference
Weight8149 kgReference
Length514 cmReference
Width245 cmReference
Height (cab)312 cmReference
Height (exhaust)312 cmReference
Max weight13999 kgReference
Bar rear axleReference
Front tread134 to 223 cmReference
Massey Ferguson 7724S attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
