Tractor · 2018Unverified

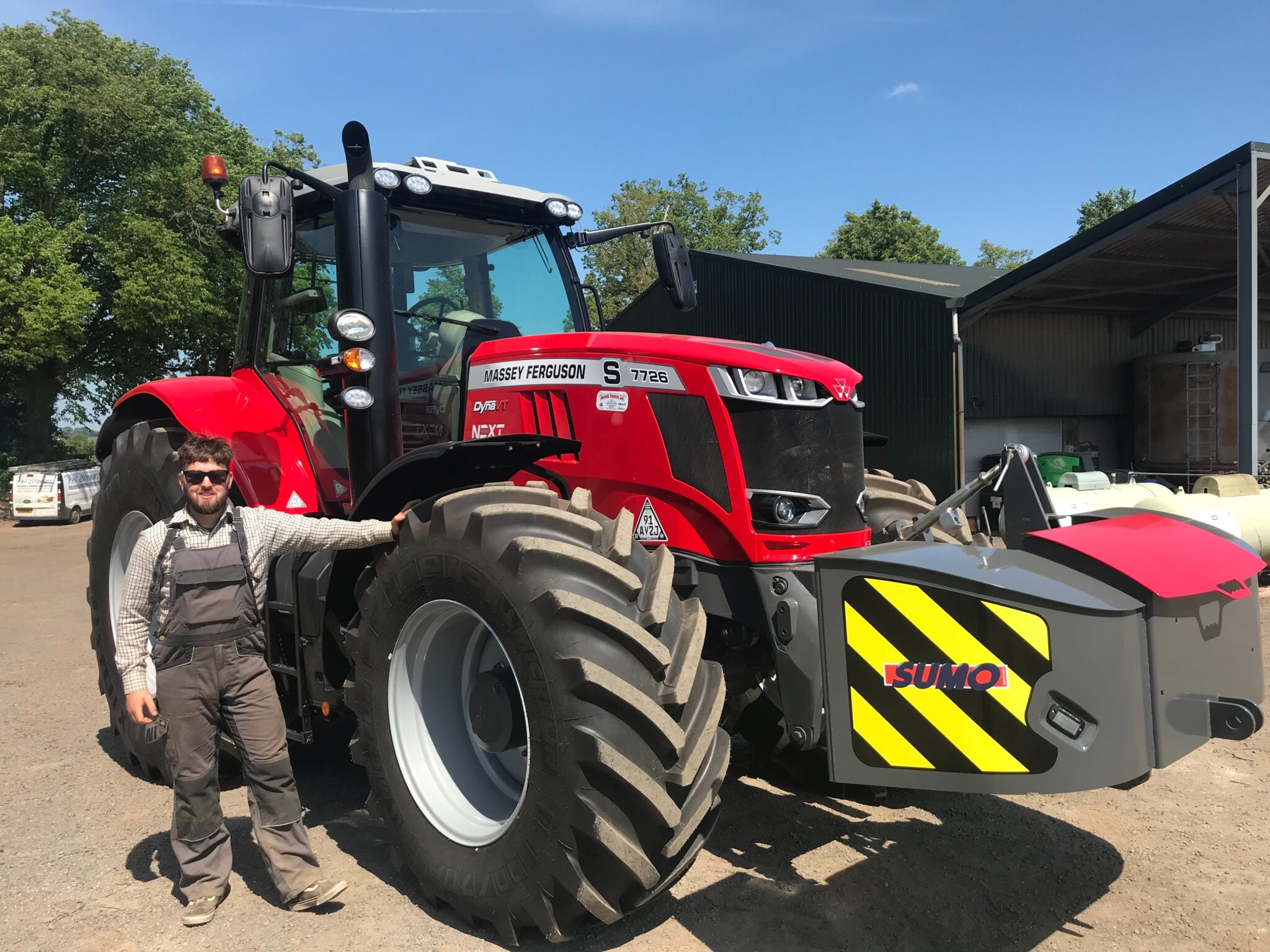

Massey Ferguson 7726S

Name: Massey Ferguson 7726S
Brand: Massey Ferguson

Massey Ferguson 7726S — Row-Crop tractor · 200 hp. Reference specifications; pending source verification.

The Massey Ferguson 7726S is a high-powered tractor with a rating of 200 hp, positioning it within the higher-powered segment of its class. Manufactured from 2018 to 2021, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers four-wheel drive through a powershift transmission. The listed weight of the 7726S is 8149 kg, and it is suitable for tasks covering areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

200 hp

Weight

8149 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

200 hp

Recorded weight

8149 kg

Transmissions

24-speed six-speed power shift

Production years

2018-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

FactoriesJackson, Minnesota, USAReference

FactoriesBeauvais, FranceReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning. Available cab suspension. Massey Ferguson auto-guidance readyReference

Engine

AGCO Power 7.4L 6-cyl dieselReference

Fuel tank431.5 LReference

Exhaust fluid (DEF)39.7 LReference

Engine179.0 kWReference

AGCO Power 74 AWFReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsTier IVReference

Power179.0 kWReference

Maximum Power190.2 kWReference

Idle RPM850-2100Reference

Torque1423.8 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed six-speed power shiftReference

continuously-variable transmissionReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

Six power shift gears (A-F) in four ranges (1-4)Reference

TransmissionDyna-VTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)149.1 kWReference

Typeclosed-center load-sensingReference

Pressure200.0 barReference

Rear valves2 to 5Reference

Front valves0 to 3Reference

Pump flow109.8 lpmReference

Pump flow147.6 lpmReference

Pump flow189.2 lpmReference

Rear TypeIII/IIReference

Controlelectronic draft controlReference

Dyna-6 Rear lift (at ends)6302 kgReference

Dyna-VT Rear lift (at ends)7440 kgReference

Front lift (at ends)3999 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@1890Reference

Engine RPM50E@1520Reference

Engine RPM1000@2000Reference

Engine RPM1000E@1600Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Dimensions

Wheelbase297 cmReference

Weight8149 kgReference

Length514 cmReference

Width245 cmReference

Height (cab)312 cmReference

Height (exhaust)312 cmReference

Max weight13999 kgReference

Bar rear axleReference

Front tread134 to 223 cmReference

Massey Ferguson 7726S attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
