Tractor · 2021Unverified

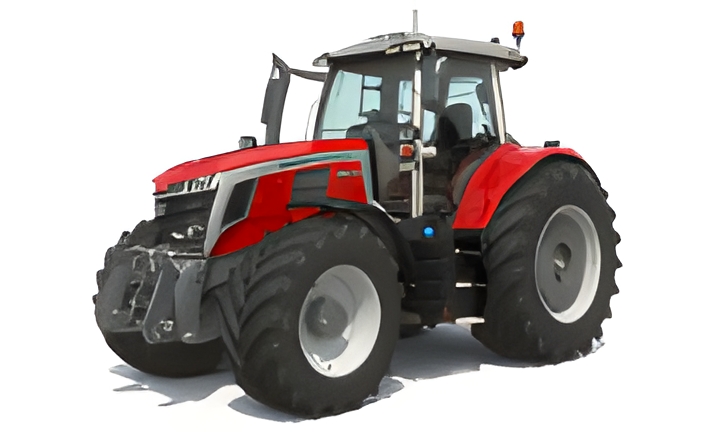

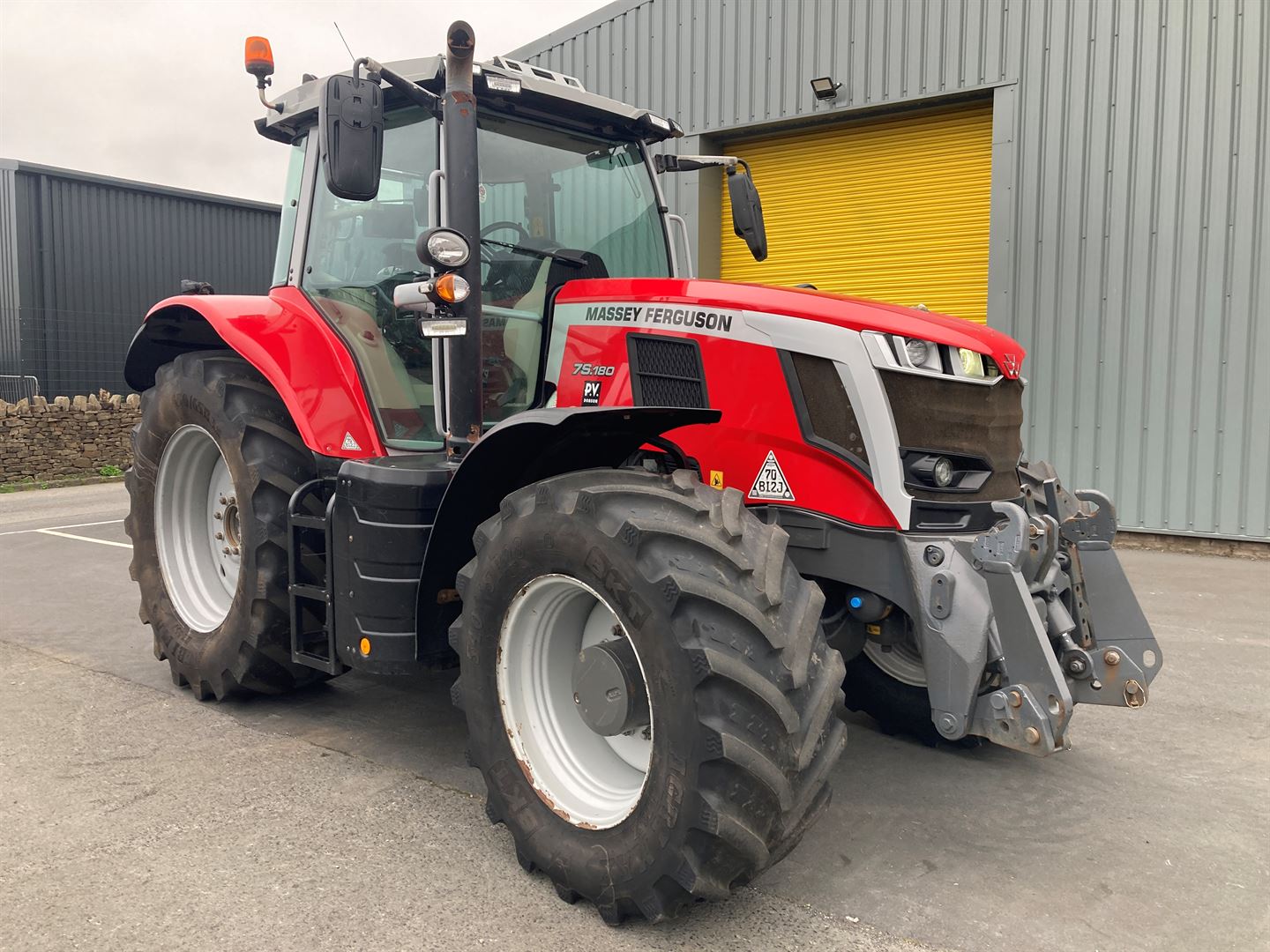

Massey Ferguson 7S.180

Name: Massey Ferguson 7S.180
Brand: Massey Ferguson

Massey Ferguson 7S.180 — 7S Series · 177 hp. Reference specifications; pending source verification.

The Massey Ferguson 7S.180 is a tractor model with a rated output of 177 hp, positioning it at the higher end of its class. Produced in 2021, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight ranges from 13889 to 16535 pounds. It is suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

177 hp

Weight

13889 to 16535 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

177 hp

Transmissions

24-speed six-speed power shift

Production years

2021-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 6.6L 6-cyl dieselReference

Fuel tank305.1 LReference

Exhaust fluid (DEF)29.9 LReference

Engine132.0 kWReference

AGCO Power 66LFNT-D5Reference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsStage VReference

Power132.0 kWReference

Maximum Power154.0 kWReference

Rated RPM2100Reference

Torque723.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed six-speed power shiftReference

continuously-variable transmissionReference

TransmissionDyna-6Reference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

TransmissionDyna-VTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeclosed center load sensingReference

Rear valvesup to 5Reference

Front valvesup to 2Reference

Pump flow110.1 lpmReference

Pump flow149.9 lpmReference

Pump flow190.0 lpmReference

Rear TypeIIIReference

Rear lift8099 kgReference

Rear lift9599 kgReference

Front HitchIIIReference

Front lift3200 kgReference

Front lift3999 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1980Reference

Engine RPM1000@2030Reference

Engine RPM540E1530Reference

Engine RPM1000E@1570Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1920Reference

Dimensions

Wheelbase288 cmReference

Weight13889 to 16535 poundsReference

Front tire480/70R28Reference

Rear tire580/70R38Reference

Standard tires (ag)Front: 480/70R28. Rear: 580/70R38Reference

Length492 cmReference

Height (cab)302 cmReference

7500 kgReference

Shipping6300 kgReference

Capacities

Max capacity14000 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
