Tractor · 1995Unverified

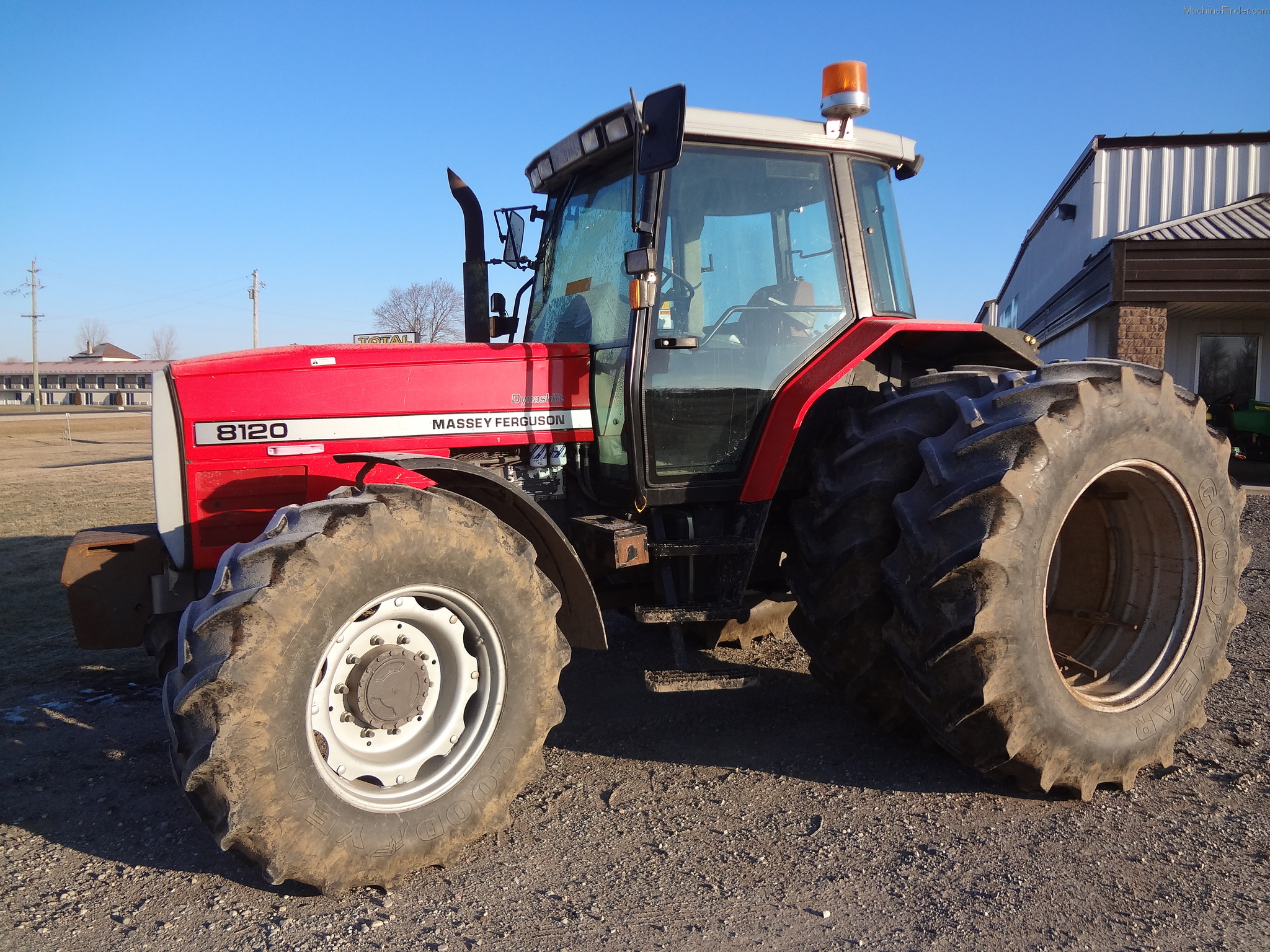

Massey Ferguson 8120

Name: Massey Ferguson 8120
Brand: Massey Ferguson

Massey Ferguson 8120 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.

The Massey Ferguson 8120 is a tractor with a rating of approximately 130 hp, placing it at the higher end of its class. This model was produced from 1995 to 1998. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a powershift transmission. The operating weight of the 8120 is 5760 kg, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

130 hp

Weight

5760 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

130 hp

Recorded weight

5760 kg

Transmissions

32-speed four-speed power shift

Production years

1995-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in FranceReference

Original price was $75,000 in 1998Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

QuietView cab standard with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Perkins 1006-6TReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity26.9 LReference

Transmission

32-speed four-speed power shiftReference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

Clutch230mm wet discReference

Four power shift gears in four synchronized gears with a two-speed range.Reference

PTO & Hydraulics

PTO (claimed)96.9 kWReference

Hydraulic system74.9 LReference

Typeclosed center load-sensingReference

Capacity74.9 LReference

Pressure202.1 barReference

Valves3 or 4Reference

Pump flow110.1 lpmReference

Rear TypeIIIReference

Controlelectronic draft controlReference

Rear lift (at ends)6552 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Engine RPM540@1990Reference

Engine RPM1000@2090Reference

Capacities

Fuel285.8 LReference

Dimensions

Wheelbase276 cmReference

Weight5760 kgReference

Front tire11.00-16Reference

Rear tire18.4R-38Reference

Ag front11.00-16Reference

Ag rear18.4R-38Reference

Length469 cmReference

Width208 cmReference

Height (cab)292 cmReference

2WD Front tread153 to 252 cmReference

4WD Front tread155 to 229 cmReference

Rear tread152 to 301 cmReference

Massey Ferguson 8120 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Massey Ferguson 1048 loaderReference

Massey Ferguson 1048 MSL loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
