Tractor · 1995Unverified

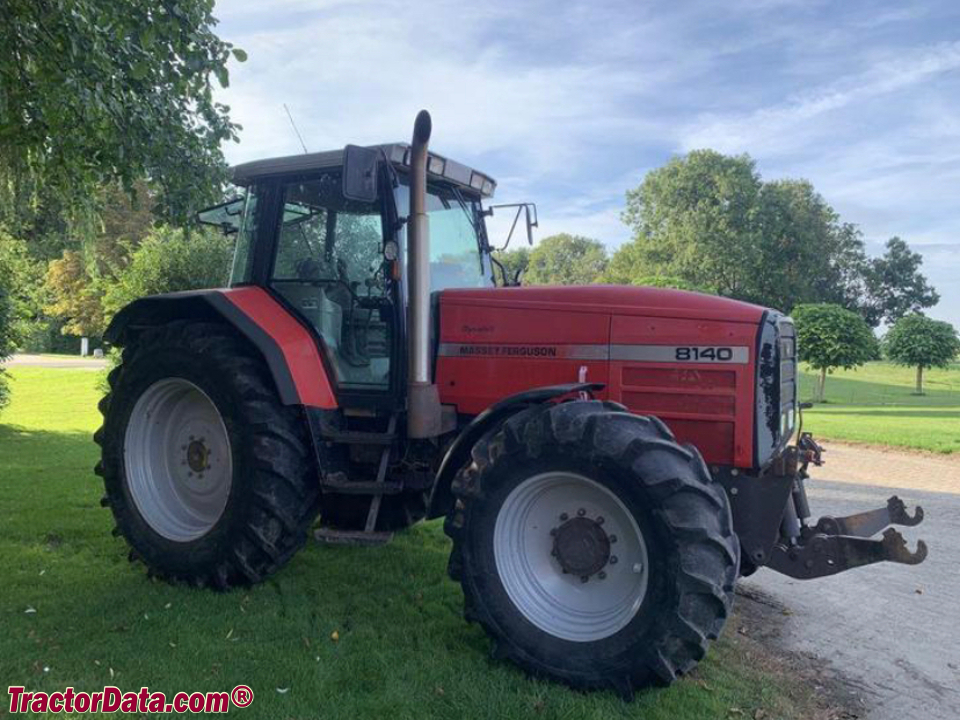

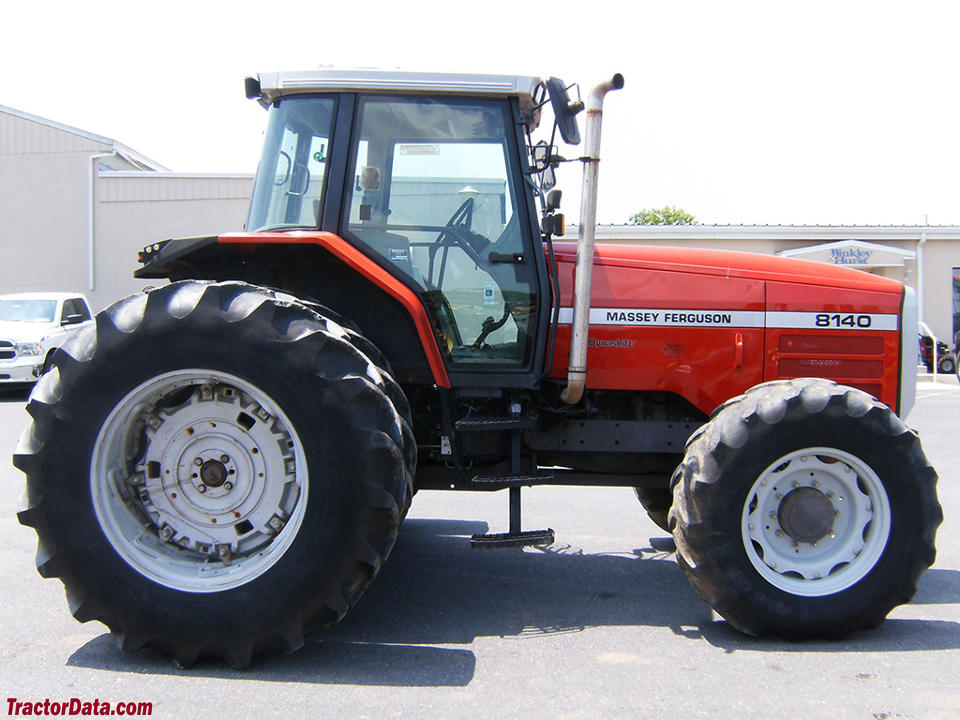

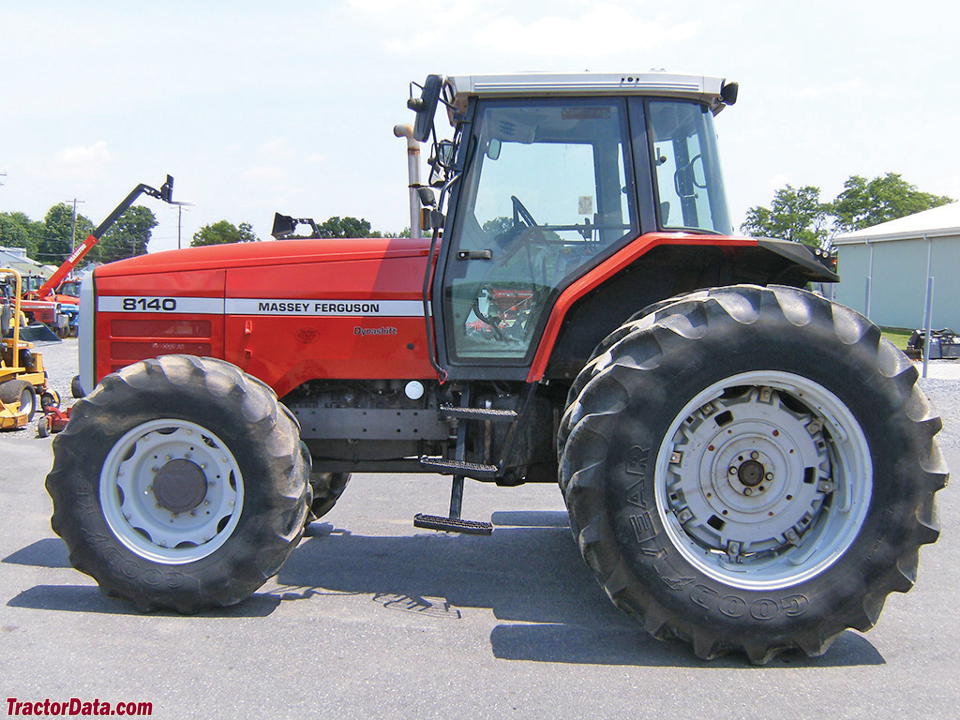

Massey Ferguson 8140

Name: Massey Ferguson 8140
Brand: Massey Ferguson

Massey Ferguson 8140 — Row-Crop tractor · 145 hp. Reference specifications; pending source verification.

The Massey Ferguson 8140 tractor has a rated power output of 145 hp, positioning it at the higher power end of its class. It was manufactured from 1995 to 1998. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, combined with four-wheel drive and a powershift transmission. Its operating weight is listed at 6350 kg, making it suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

145 hp

Weight

6350 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

145 hp

Recorded weight

6350 kg

Transmissions

32-speed four-speed power shift

Production years

1995-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in FranceReference

Original price was $82,800 in 1998Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

QuietView cab standard with air-conditioning.Reference

Engine

Valmet 6.6L 6-cyl dieselReference

Valmet 620DSReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity26.9 LReference

Transmission

32-speed four-speed power shiftReference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

Clutch230mm wet discReference

PTO & Hydraulics

PTO (claimed)108.1 kWReference

Hydraulic system74.9 LReference

Typeclosed center load-sensingReference

Capacity74.9 LReference

Pressure202.1 barReference

Valves3 or 4Reference

Pump flow110.1 lpmReference

Rear TypeIIIReference

Controlelectronic draft controlReference

Rear lift (at ends)6552 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000Reference

Engine RPM1000@2090Reference

Capacities

Fuel329.3 LReference

Dimensions

Wheelbase292 cmReference

Weight6350 kgReference

Front tire11.00-16Reference

Rear tire20.8R-38Reference

Ag front11.00-16Reference

Ag rear20.8R-38Reference

Length546 cmReference

Width238 cmReference

Height (cab)292 cmReference

2WD Front tread153 to 252 cmReference

4WD Front tread155 to 229 cmReference

Rear tread152 to 301 cmReference

Massey Ferguson 8140 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
