Tractor · 1995Unverified

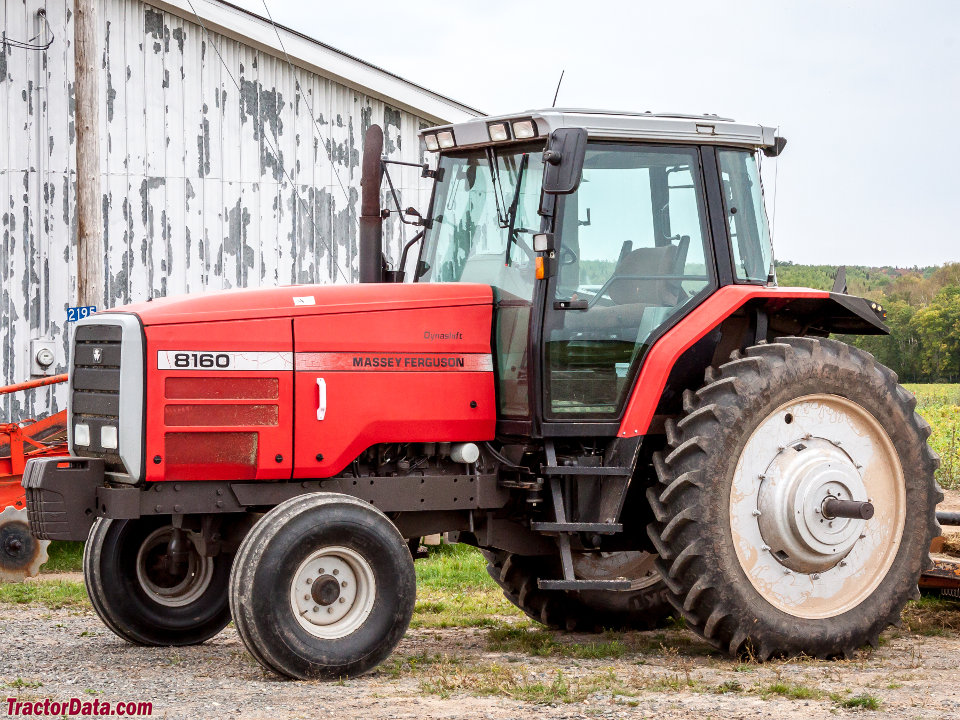

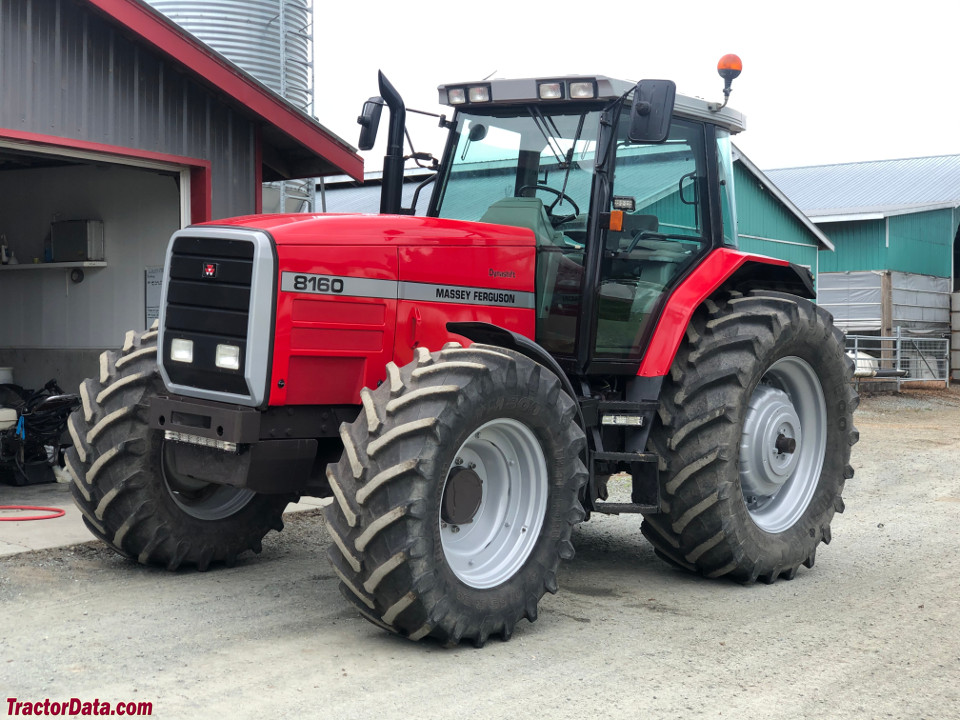

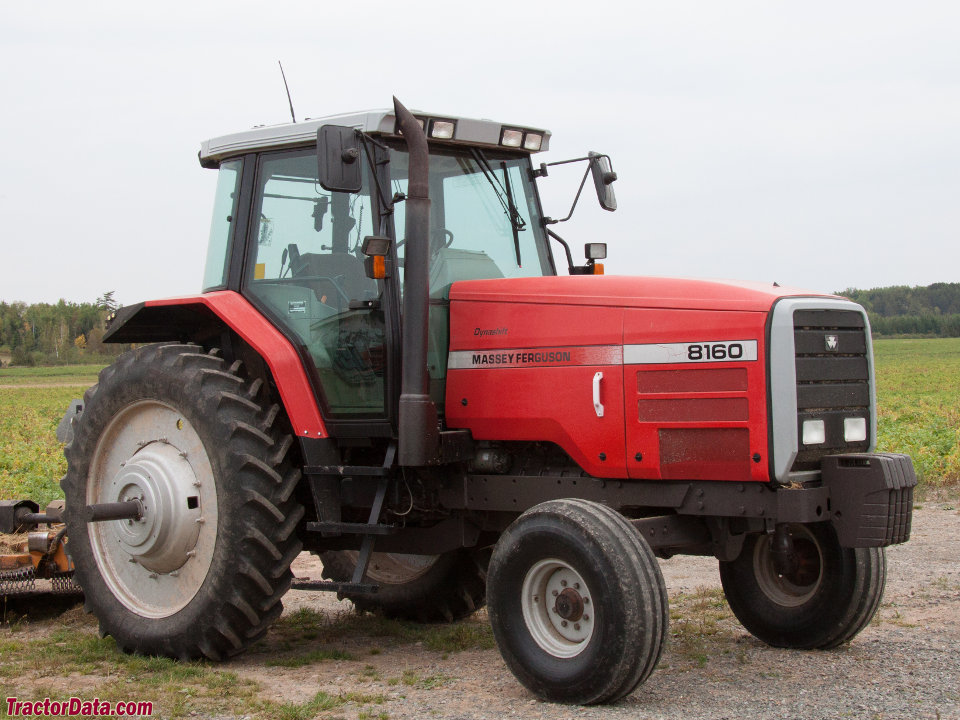

Massey Ferguson 8160
Massey Ferguson 8160 — Row-Crop tractor · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Weight
6486 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in FranceReference
Original price was $97,500 in 1998Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
QuietView cab standard with air-conditioning.Reference
Engine
Valmet 7.4L 6-cyl dieselReference
Valmet 634DSReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity29.9 LReference
Transmission
32-speed four-speed power shiftReference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Clutch230mm wet discReference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
Hydraulic system78.0 LReference
Typeclosed center load-sensingReference
Capacity78.0 LReference
Pressure202.1 barReference
Valves3 or 4Reference
Pump flow110.1 lpmReference
Rear TypeIIIReference
Controlelectronic draft controlReference
Rear lift (at ends)6552 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000Reference
Engine RPM1000@2090Reference
Capacities
Fuel329.3 LReference
Dimensions
Wheelbase292 cmReference
Weight6486 kgReference
Front tire11.00-16Reference
Rear tire20.8R-38Reference
Ag front11.00-16Reference
Ag rear20.8R-38Reference
Length546 cmReference
Width238 cmReference
Height (cab)292 cmReference
2WD Front tread153 to 252 cmReference
4WD Front tread155 to 229 cmReference
Rear tread152 to 301 cmReference
Massey Ferguson 8160 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
