Tractor · 1998Unverified

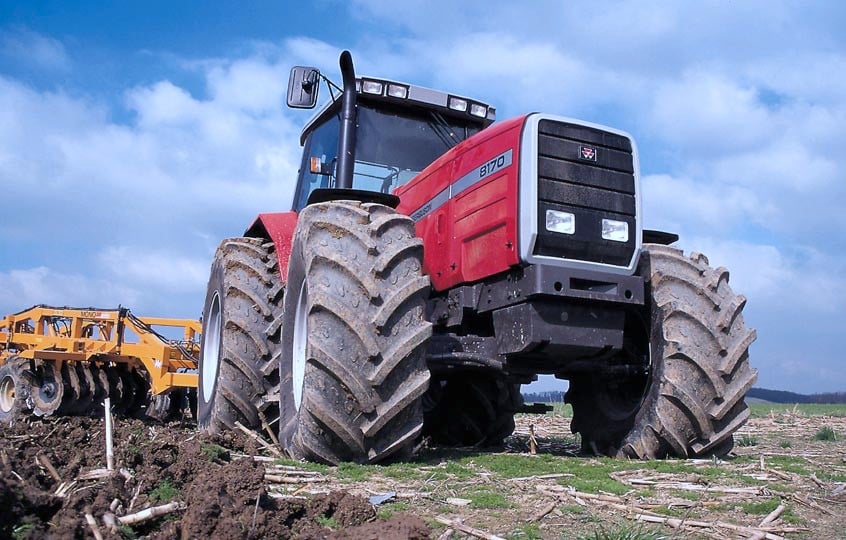

Massey Ferguson 8170

Name: Massey Ferguson 8170
Brand: Massey Ferguson

Massey Ferguson 8170 — Row-Crop tractor · 205 hp. Reference specifications; pending source verification.

The Massey Ferguson 8170 is a tractor with a rated power of 205 hp, placing it at the higher end of its class. It was manufactured in 1998. Powered by a 6-cylinder turbocharged diesel liquid-cooled engine, the 8170 is equipped with four-wheel drive and a hydrostatic transmission. It has a listed operating weight of 9795 kg, suitable for operations on land areas ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

205 hp

Max power

161.6 kW

Weight

9795 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

205 hp

Recorded weight

9795 kg

Transmissions

18-speed full power shift

Production years

1998-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in GermanyReference

Original price$118,100Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Independent hydraulic wet disc brakesReference

Cab standard.Reference

Engine

Valmet 8.4L 6-cyl dieselReference

Drawbar (tested)123.1 kWReference

ValmetReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity30.3 LReference

Max power161.6 kWReference

Power at rated engine speed153.2 kWReference

Max power123.1 kWReference

Transmission

18-speed full power shiftReference

Typefull power shiftReference

Gears18 forward and 9 reverseReference

Clutchwet discReference

PTO & Hydraulics

PTO (claimed)149.1 kWReference

PTO (tested)161.6 kWReference

Hydraulic system149.9 LReference

Typepressure flow compensated (PFC)Reference

Capacity149.9 LReference

Valves4Reference

Rear TypeIIIReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed158.3 kWReference

Capacities

Fuel454.2 LReference

Dimensions

Wheelbase307 cmReference

Weight9795 kgReference

Front tire16.9R-28Reference

Rear tire18.4R-42Reference

Ag front16.9R-28Reference

Ag rear18.4R-42Reference

Operating weight9795 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel 18-speed 4WDApril 1 - May 1, 1998Link: OCED Tractor Test 1770 fileReference

PTO performanceReference

Fuel use46.9 l/hourReference

Fuel use49.6 l/hourReference

Fuel use48.8 l/hourReference

Drawbar performanceReference

Fuel use50.0 l/hourReference

Gear 10 used for power test.Reference

Max pull9419 kgReference

Gear 6 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
