Tractor · 1999Unverified

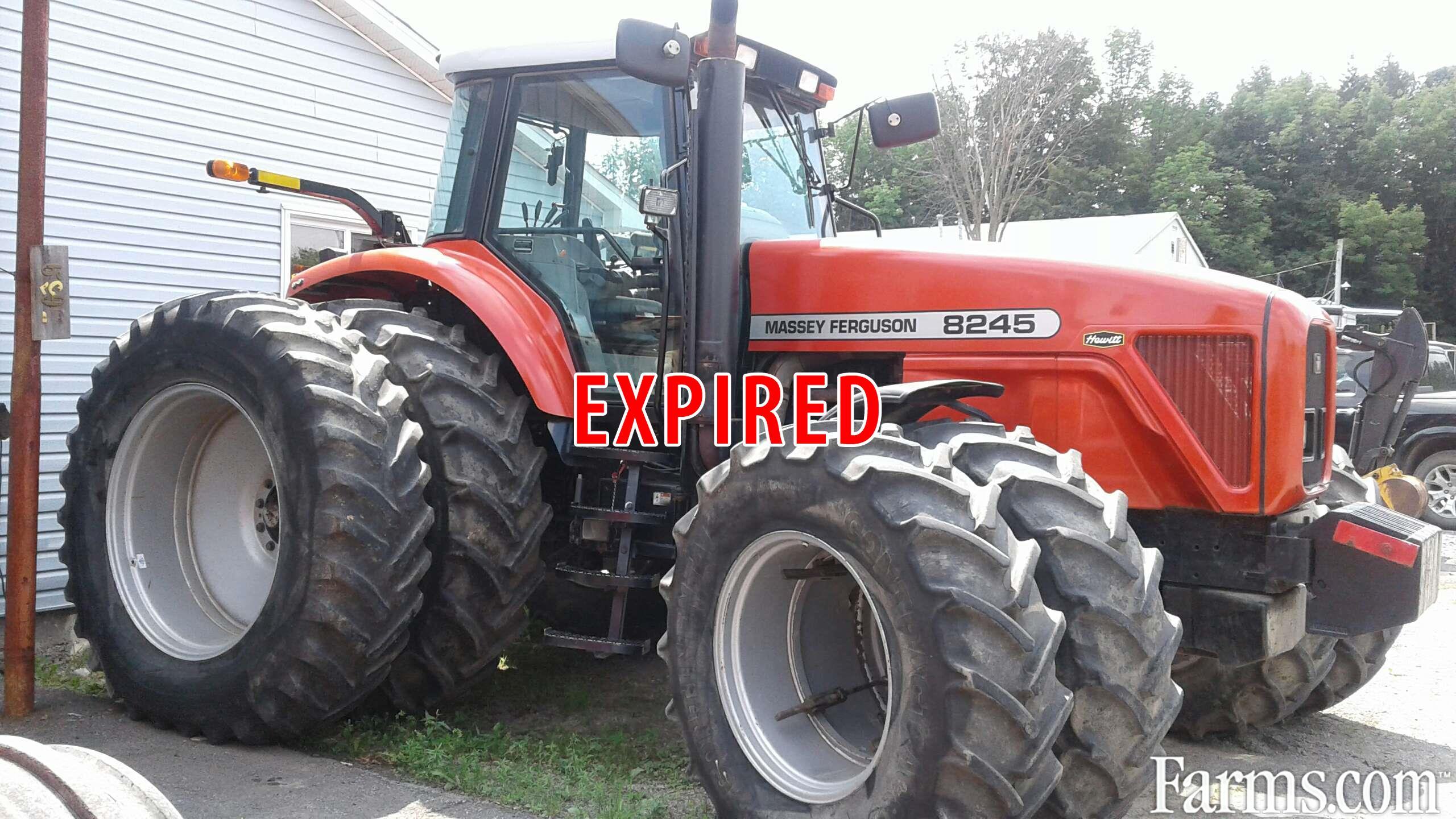

Massey Ferguson 8245
Massey Ferguson 8245 — Row-Crop tractor · 164 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
164 hp
Max power
130.2 kW
Weight
8527 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$100,500Reference
Four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Sisu 7.4L 6-cyl dieselReference
Fuel tank454.2 LReference
Sisu 634Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity24.6 LReference
Max power130.2 kWReference
Power at rated engine speed122.6 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)130.2 kWReference
Typeclosed-center PFCReference
Pressure200.0 barReference
Valves3 or 4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear TypeIIIReference
Rear lift (at ends)8700 kgReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2090Reference
Engine RPM1000@2090Reference
Power at rated PTO speed127.8 kWReference
Dimensions
Wheelbase307 cmReference
Weight8527 kgReference
Front tire14.9R-28Reference
Rear tire18.4R-38Reference
Ag front14.9R-28Reference
Ag rear18.4R-38Reference
Length515 cmReference
Height (cab)307 cmReference
Height (exhaust)312 cmReference
Operating weight8527 kgReference
Clearance (drawbar)43 cmReference
Massey Ferguson 8245 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 15 - 26, 2006Link: Nebraska Tractor Test 1781B fileReference
PTO performanceReference
Fuel use37.5 l/hourReference
Fuel use38.6 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
