Tractor · 1963Unverified

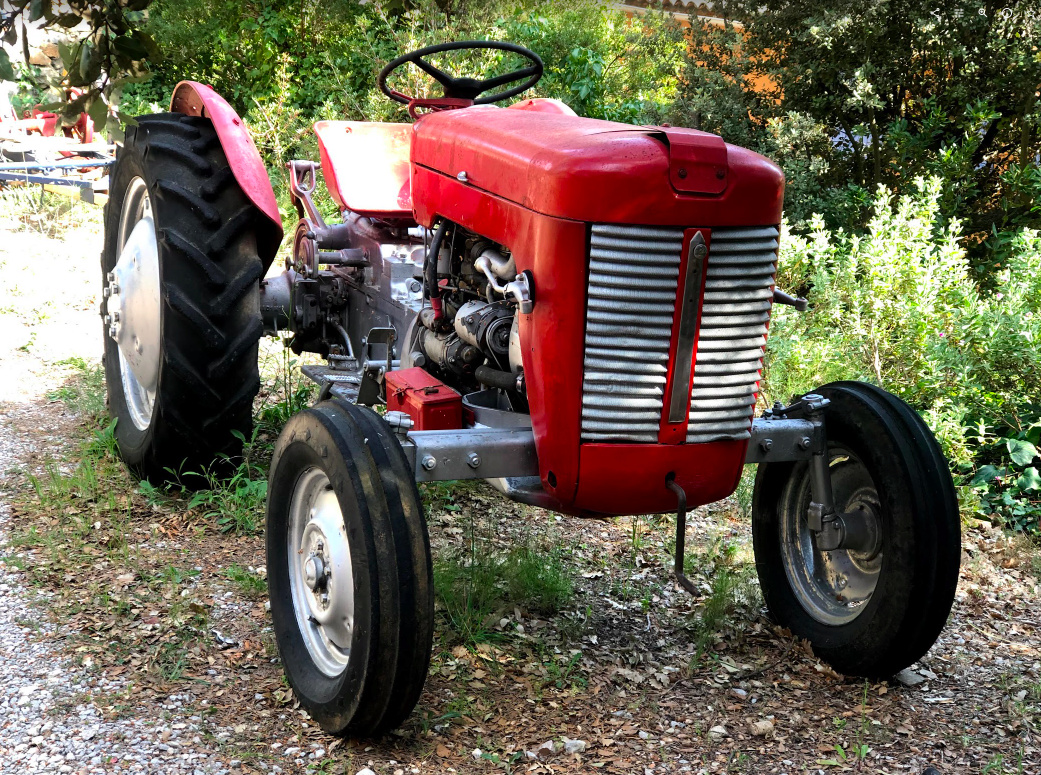

Massey Ferguson 825
Massey Ferguson 825 — Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1179 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
The Massey Ferguson 825 is the designation for the version of the model 25 built in France.Reference
Two-wheel driveReference
Open operator station.Reference
Engine
Perkins 1.8L 4-cyl dieselReference
Fuel tank45.4 LReference
Engine18.6 kWReference
Drawbar (claimed)14.9 kWReference
Perkins 4A.107Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke79 x 89 mmReference
Power18.6 kWReference
Air cleaneroil bathReference
Compression22.5:1Reference
Rated RPM2000Reference
Idle RPM500-2150Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity7.5 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Oil capacity19.0 LReference
PTO & Hydraulics
PTO (claimed)18.2 kWReference
Rear TypeIReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1179 kgReference
Front tire5.50-16Reference
Rear tire10-28Reference
Ag front5.50-16Reference
Ag rear10-28Reference
Ag front4.50-16Reference
Ag rear8-28Reference
Ag rear9-28Reference
Length291 cmReference
Height (steering wheel)139 cmReference
Height (hood)125 cmReference
Speeds
With 10-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
