Tractor · 1999Unverified

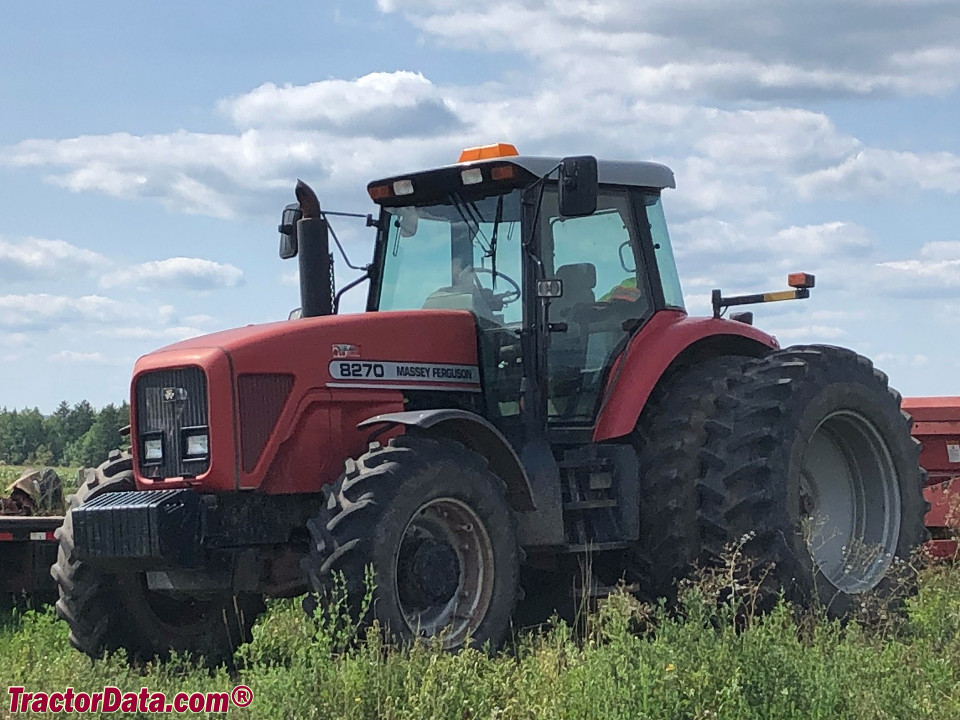

Massey Ferguson 8270
Massey Ferguson 8270 — Row-Crop tractor · 205 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
205 hp
Max power
161.6 kW
Weight
9795 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$118,100Reference
Four-wheel driveReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Sisu 8.4L 6-cyl dieselReference
Fuel tank454.2 LReference
Drawbar (tested)123.1 kWReference
Sisu 645Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity30.3 LReference
Max power161.6 kWReference
Power at rated engine speed153.2 kWReference
Max power123.1 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)161.6 kWReference
Typeclosed-center PFCReference
Pressure200.0 barReference
Valves4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear TypeIIIReference
Rear lift (at ends)10000 kgReference
Rear lift (at 24"/610mm)7257 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2090Reference
Power at rated PTO speed158.3 kWReference
Dimensions
Wheelbase307 cmReference
Weight9795 kgReference
Front tire16.9R-28Reference
Rear tire18.4R-42Reference
Ag front16.9R-28Reference
Ag rear18.4R-42Reference
Length515 cmReference
Height (cab)307 cmReference
Height (exhaust)312 cmReference
Operating weight9795 kgReference
Clearance (drawbar)43 cmReference
Massey Ferguson 8270 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 1 - May 1, 1998Link: OCED Tractor Test 1770 fileReference
PTO performanceReference
Fuel use46.9 l/hourReference
Fuel use49.6 l/hourReference
Fuel use48.8 l/hourReference
Drawbar performanceReference
Fuel use50.0 l/hourReference
Gear 10 used for power test.Reference
Max pull9419 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
