Tractor · 1958Unverified

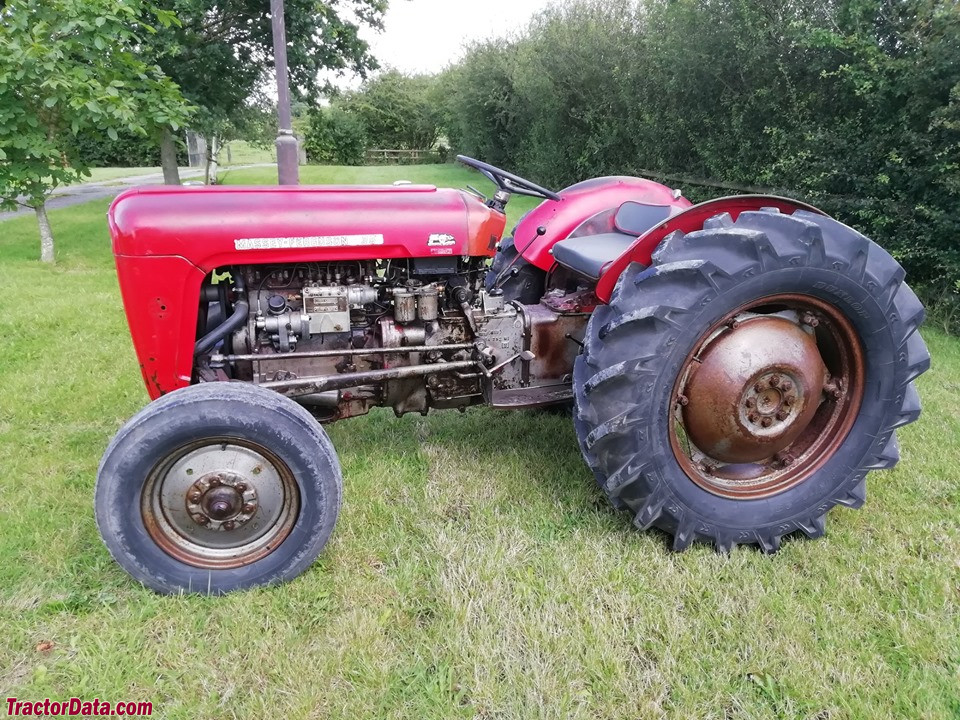

Massey Ferguson 835
Massey Ferguson 835 — Utility tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1480 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
2.3L 4-cyl dieselReference
Fuel tank40.9 LReference
Engine24.6 kWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke84 x 102 mmReference
Power24.6 kWReference
Compression20:1Reference
Rated RPM1800Reference
Firing order1-3-4-2Reference
Oil capacity6.8 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase183 cmReference
Weight1480 kgReference
Front tire4x19Reference
Rear tire11x28Reference
Ag front4x19Reference
Ag rear11x28Reference
Ag rear10x28Reference
Length296 cmReference
Width162 cmReference
Height136 cmReference
Ground clearance32 cmReference
Front tread121 to 203 cmReference
Rear tread121 to 193 cmReference
Speeds
With 10x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
