Tractor · 2004Unverified

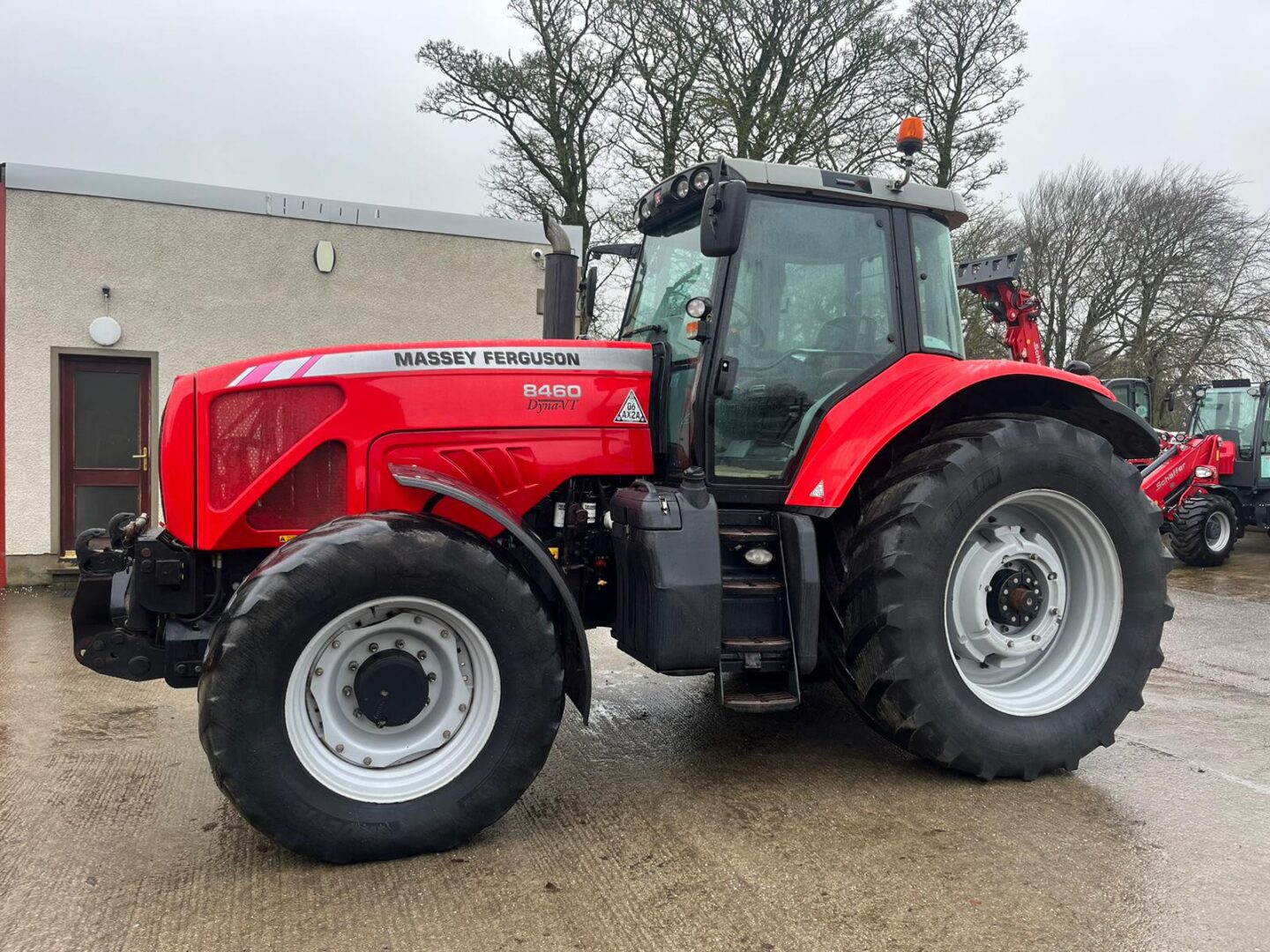

Massey Ferguson 8460

Name: Massey Ferguson 8460
Brand: Massey Ferguson

Massey Ferguson 8460 — Row-Crop tractor · 206 hp. Reference specifications; pending source verification.

The Massey Ferguson 8460 is a tractor with a rated power output of approximately 206 horsepower, positioning it at the higher end of its class. It was manufactured from 2004 to 2007. The 8460 features a 6-cylinder turbocharged, intercooled diesel engine with liquid cooling, paired with four-wheel drive and a continuously variable transmission. Its operating weight ranges from 19136 to 19910 pounds, making it suitable for operations covering 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

206 hp

Max power

174.1 kW

Weight

19136 to 19910 pounds

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

206 hp

Recorded weight

8680 kg

Transmissions

42-speed power shift

Production years

2004-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in GermanyReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

DT200Asimilar AGCO modelReference

Engine

Sisu 7.4L 6-cyl dieselReference

Fuel tank599.9 LReference

Engine175.2 kWReference

Drawbar (tested)130.7 kWReference

SisuReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

Power175.2 kWReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power174.1 kWReference

Power at rated engine speed153.4 kWReference

Max power130.7 kWReference

Transmission

42-speed power shiftReference

continuously variable transmissionReference

TransmissionDynaStepReference

Typepower shiftReference

Gears42 forward and 36 reverseReference

The Dyna-Step transmission is mechanically the same as the CVT, but the operator shifts through set gears as with a power shift. There are 21 forward gear shifts in two ranges.Reference

TransmissionDyna-VTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)149.1 kWReference

PTO (tested)174.1 kWReference

Typeclosed center PFCReference

Pressure200.0 barReference

Valves4 or 5Reference

Total flow147.6 lpmReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)6531 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540E/1000Reference

Power at rated PTO speed172.3 kWReference

Dimensions

Wheelbase307 cmReference

Weight19136 to 19910 poundsReference

Front tire16.9R30Reference

Rear tire18.4R46Reference

Ag front16.9R30Reference

Ag rear18.4R46Reference

Length523 cmReference

Height309 cmReference

Shipping weight8680 kgReference

Operating weight9031 kgReference

Massey Ferguson 8460 attachments

front-end loaderReference

Test results

Diesel Dyna Step 4WDMarch 1 - May 1, 2005Link: OCED Tractor Test 2322 fileReference

PTO performanceReference

Fuel use47.7 l/hourReference

Fuel use46.2 l/hourReference

Fuel use48.1 l/hourReference

Drawbar performanceReference

Fuel use45.8 l/hourReference

Max pull9013 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
