Tractor · 2009Unverified

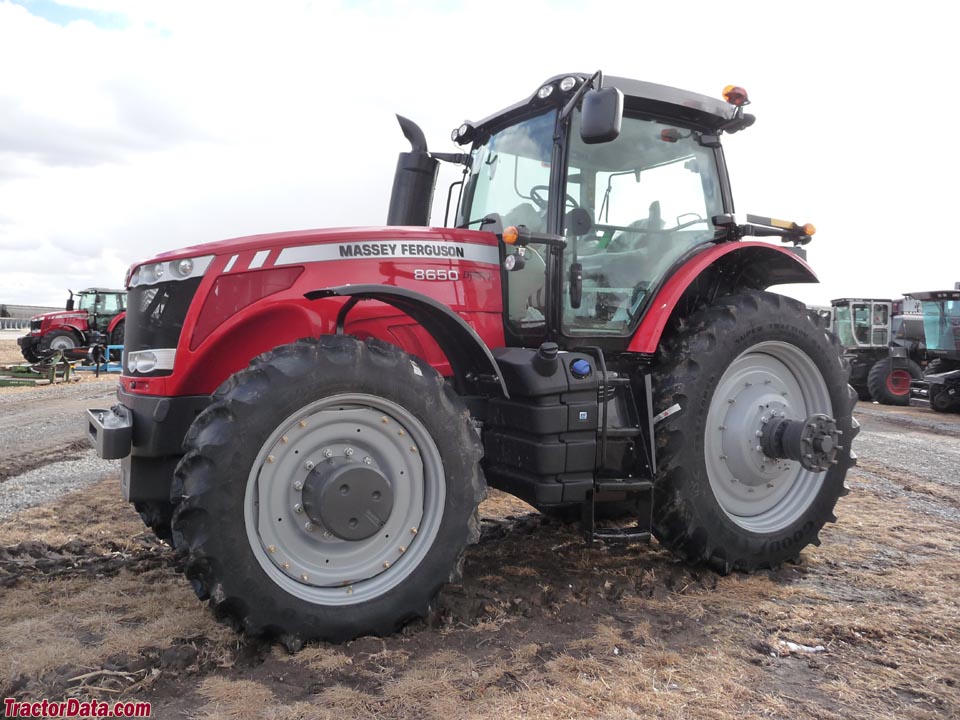

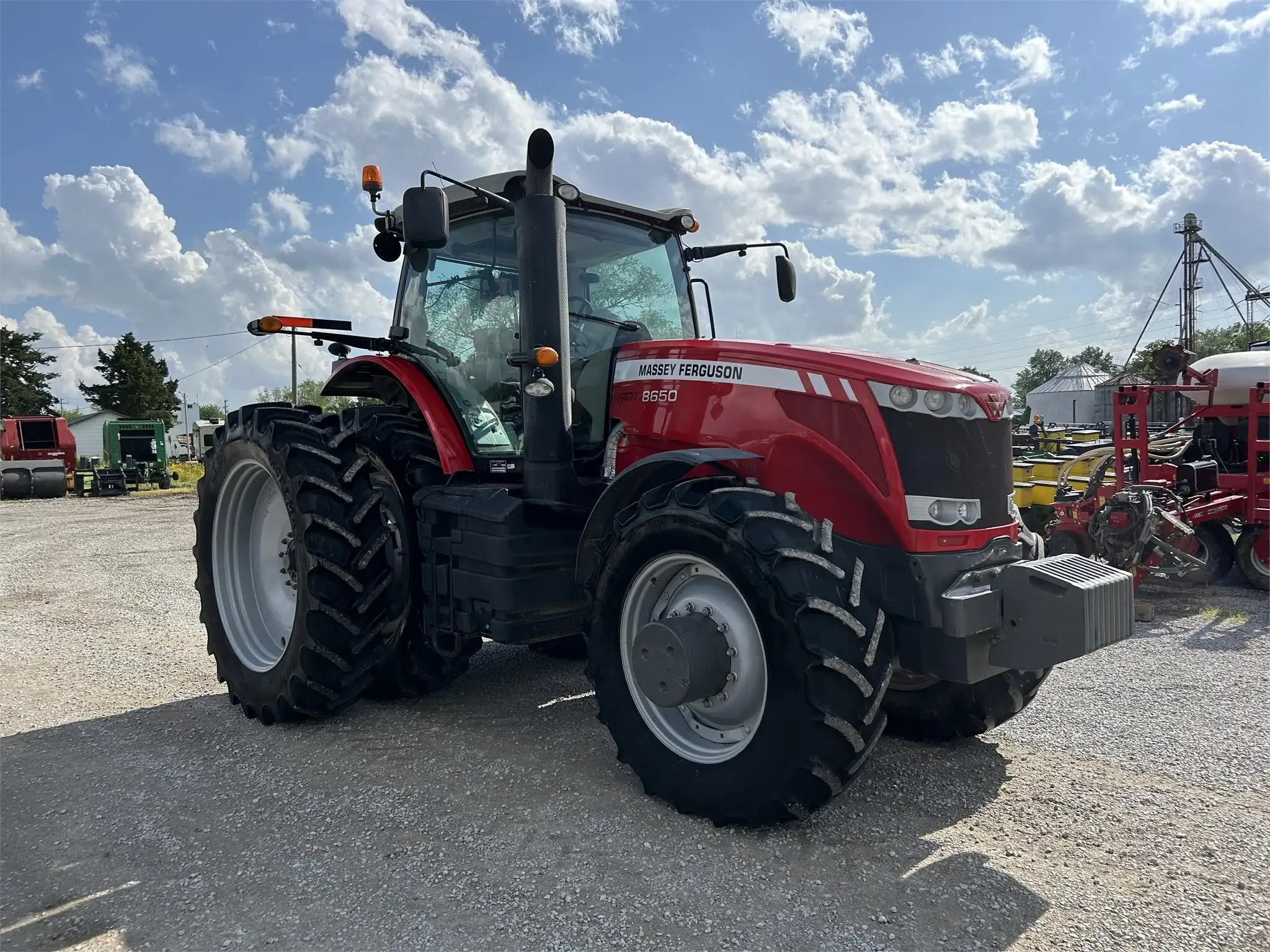

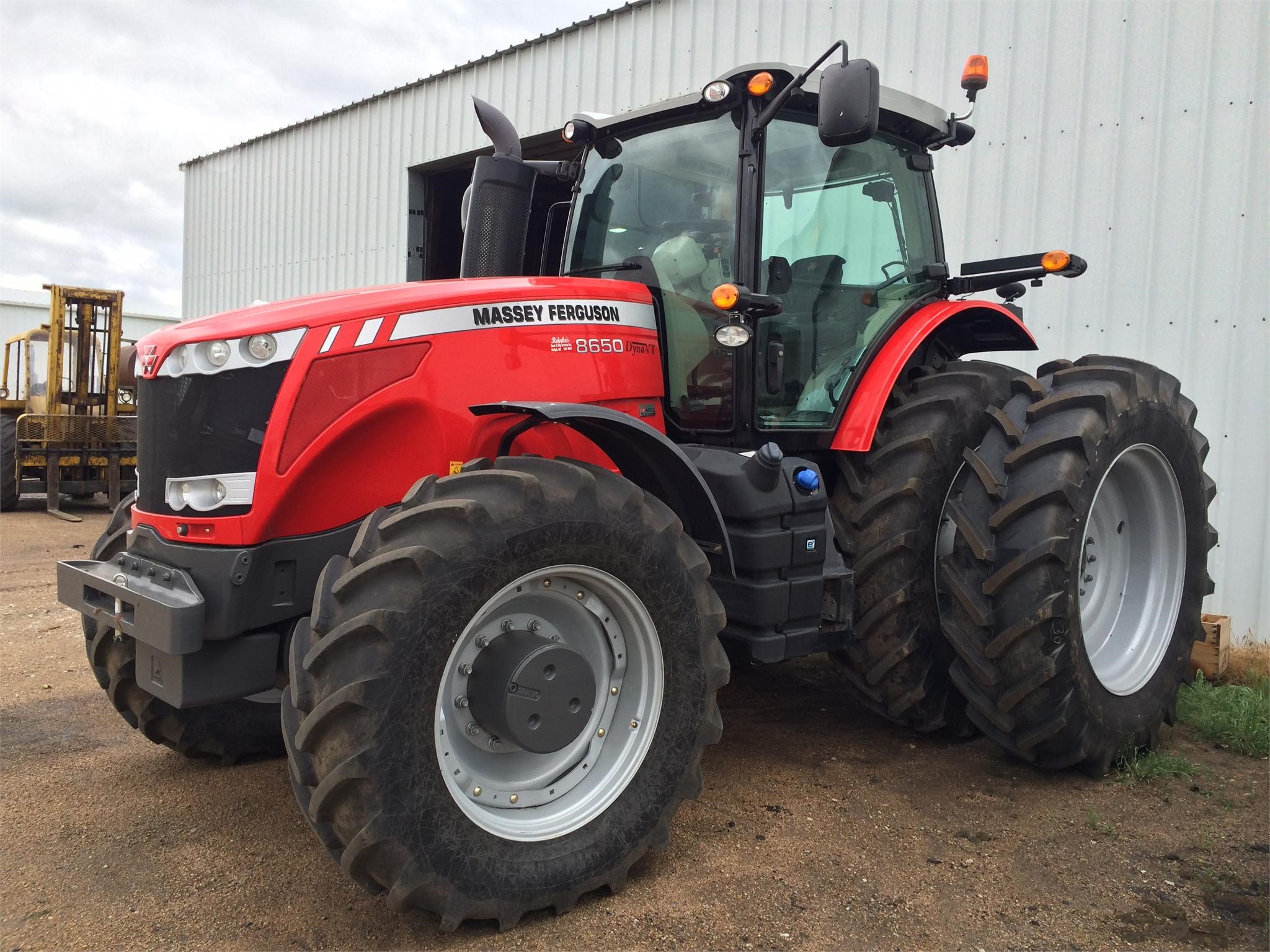

Massey Ferguson 8650
Massey Ferguson 8650 — Model year 2009-20102011-2013 · 270 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
270 hp
Max power
180.7 kW
Weight
10999 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price was $185,670 in 2009Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.Reference
Engine
AGCO SISU POWER 8.4L 6-cyl dieselReference
Fuel tank590.1 LReference
Fuel tank690.0 LReference
Exhaust fluid (DEF)30.3 LReference
Engine179.0 kWReference
Engine (max)201.3 kWReference
Drawbar (tested)134.3 kWReference
AGCO SISU POWER 84CTAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
The engine uses AGCO's e3 selective catalytic reduction (SCR) system to reduce nitrogen oxides (NOx). The system uses a diesel exhaust fluid that is injected into the exhaust gas. Engine optionally available with exhaust gas recirculation instead of SCR.Reference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
EmissionsTier IIIReference
Emission controlselective catalytic reduction (SCR)Reference
Emission controlintegrated exhausted gas recirculation optionalReference
Power179.0 kWReference
Maximum Power201.3 kWReference
Fuel systemelectronic high pressure common railReference
Pre-heatingthermostartReference
Compression16.7:1Reference
Rated RPM2200Reference
Torque1185.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power180.7 kWReference
Power at rated engine speed158.6 kWReference
Max power134.3 kWReference
Max power186.4 kWReference
Power at rated engine speed161.2 kWReference
Max power130.6 kWReference
Transmission
continuously-variable transmission (CVT)Reference
TransmissionDyna-VTReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)152.9 kWReference
PTO (tested)186.4 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow99.9 lpmReference
Total flow174.9 lpmReference
Rear TypeIII, IVReference
Rear lift (at ends)12002 kgReference
Rear lift (at 24"/610mm)9678 kgReference
Front HitchIIIReference
Front lift (at ends)4998 kgReference
DrawbarCat. 3Reference
DrawbarCat. 3 Heavy Duty (optional)Reference
DrawbarCat IV (optional)Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000E/1000 (1.75)Reference
Rear PTO Type540E/1000 (1.375)Reference
Engine RPM1000@1970Reference
Engine RPM1000E@1605Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed173.7 kWReference
Power at rated PTO speed178.2 kWReference
Dimensions
Wheelbase310 cmReference
Weight10999 kgReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Length566 cmReference
Height (cab)338 cmReference
Shipping weight10999 kgReference
Max weight17640 kgReference
Front axle4WDReference
Front axleQuadlink suspendedReference
Bar rear axle109 by 2667 mmReference
Bar rear axle109 by 2997 mmReference
Front tread154 to 225 cmReference
Rear tread147 to 12 cmReference
Rear tread148 to 303 cmReference
Massey Ferguson 8650 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery CCA775Reference
Battery volts12Reference
Test results
OECD 2496: diesel SCR Dyna-VT 4WDReference
OECD 2557: diesel IEGR Dyna-VT 4WDReference
Diesel SCR Dyna-VT 4WDOctober 2008 - February 2009, Link: OCED Tractor Test 2496 fileReference
PTO performanceReference
Fuel use45.8 l/hourReference
Fuel use43.9 l/hourReference
Drawbar performanceReference
Pull at 7.6 KPHReference
Max pull12022 kgReference
Pull at 3.9 KPHReference
Diesel IEGR Dyna-VT 4WDOctober 2009 - March 2010, Link: OCED Tractor Test 2557 fileReference
Fuel use53.0 l/hourReference
Fuel use51.1 l/hourReference
Fuel use52.2 l/hourReference
Pull at 4.7 KPHReference
Max pull12142 kgReference
Pull at 7.5 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
