Tractor · 2009Unverified

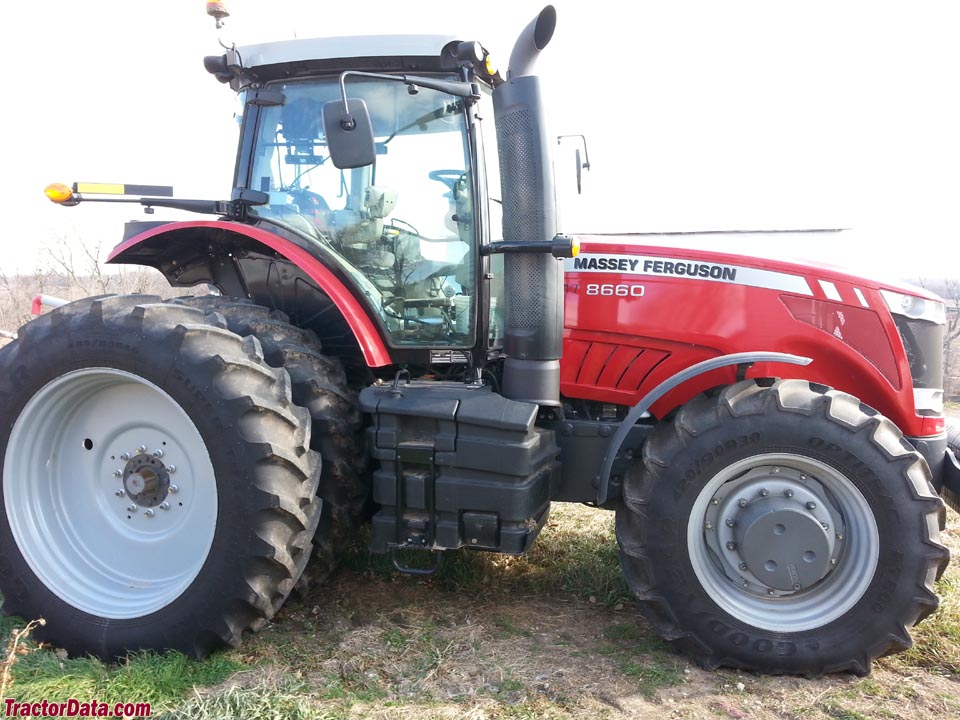

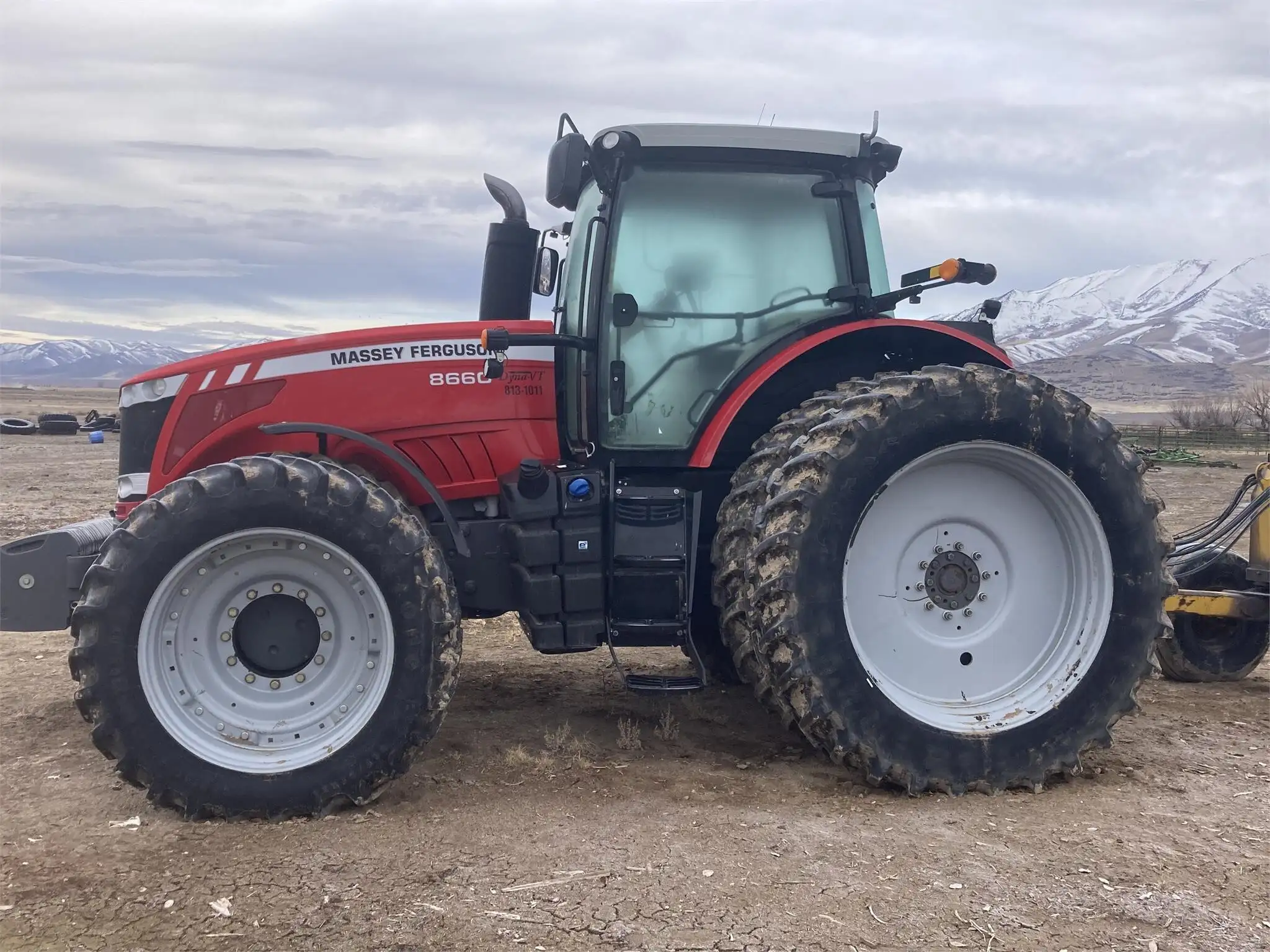

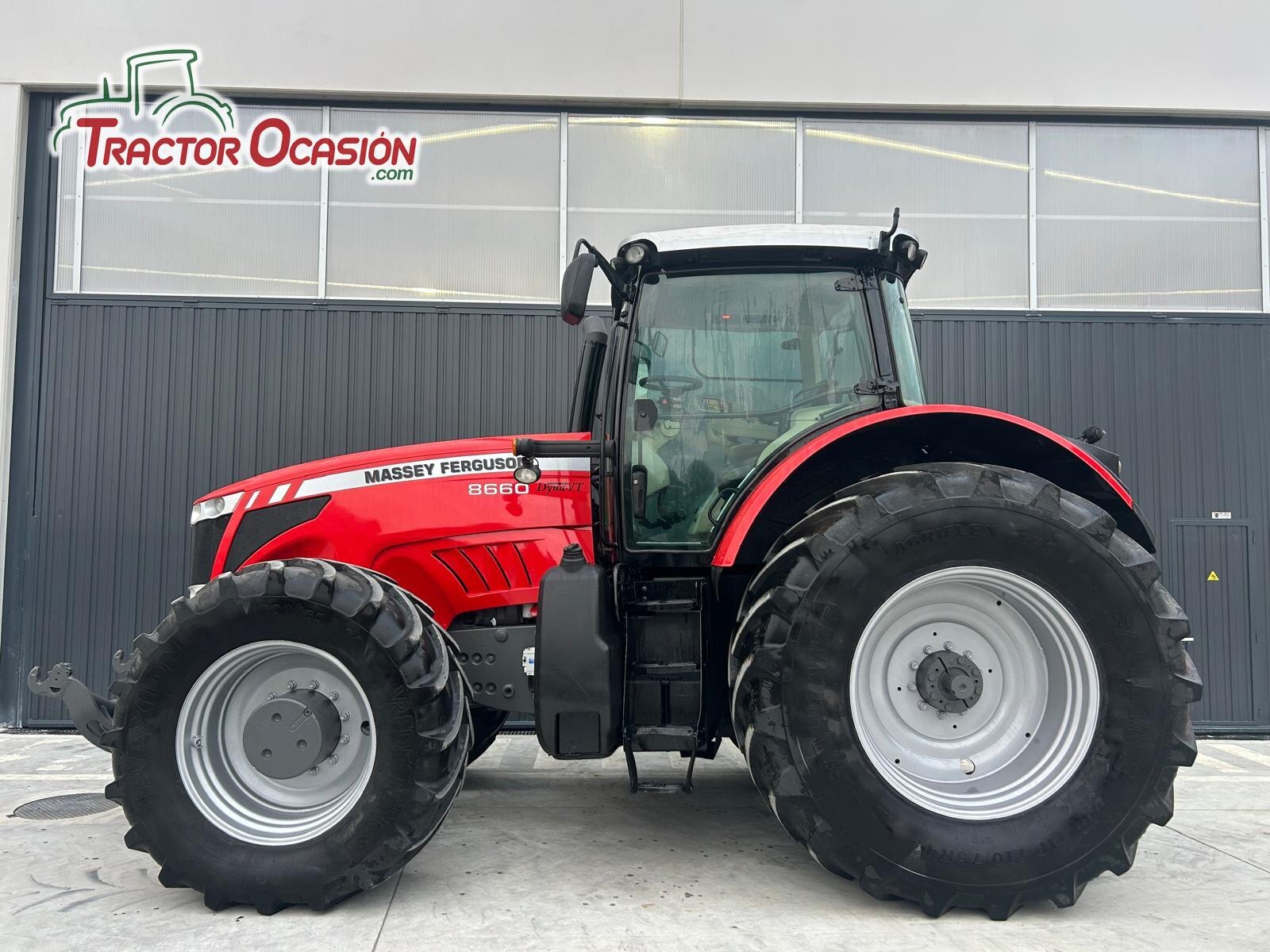

Massey Ferguson 8660

Name: Massey Ferguson 8660
Brand: Massey Ferguson

Massey Ferguson 8660 — Model year 2009-20102011-2013 · 295 hp. Reference specifications; pending source verification.

The Massey Ferguson 8660 is a tractor with a rated output of 295 horsepower, categorising it among the higher-powered machines in its class. This model was manufactured from 2009 to 2013. Power is provided by a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, driving through four-wheel drive with a continuously variable transmission. The listed weight of the tractor is 10999 kilograms.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

295 hp

Max power

198.6 kW

Weight

10999 kg

Catalogue coverage

Variants represented

Richest spec table

159 rows

Recorded power

295 hp

Recorded weight

10999 kg

Transmissions

continuously-variable transmission (CVT)

Production years

2009-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price was $196,119 in 2009Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control. Engine optionally available with exhaust gas recirculation instead of SCR.Reference

Engine

AGCO SISU POWER 8.4L 6-cyl dieselReference

Fuel tank590.1 LReference

Fuel tank690.0 LReference

Exhaust fluid (DEF)30.3 LReference

Engine197.6 kWReference

Engine (max)220.0 kWReference

Drawbar (tested)145.5 kWReference

AGCO SISU POWER 84CTAReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

The engine uses AGCO's e3 selective catalytic reduction (SCR) system to reduce nitrogen oxides (NOx). The system uses a diesel exhaust fluid that is injected into the exhaust gas.Reference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsTier IIIReference

Emission controlselective catalytic reduction (SCR)Reference

Emission controlintegrated exhausted gas recirculation optionalReference

Power197.6 kWReference

Maximum Power220.0 kWReference

Fuel systemelectronic high pressure common railReference

Pre-heatingthermostartReference

Compression16.7:1Reference

Rated RPM2200Reference

Torque1295.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Max power198.6 kWReference

Power at rated engine speed174.5 kWReference

Max power145.3 kWReference

Max power200.9 kWReference

Power at rated engine speed177.5 kWReference

Max power145.5 kWReference

Fuel TypedieselReference

No of Cylinders6 CylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceInterim Tier IV | selective catalytic reduction (SCR)Reference

Engine torque at rated speed404.6 kgReference

Bore and stroke4.37x5.71 inchesReference

Cooling systemliquid-cooled | electronic viscous fanReference

Transmission

continuously-variable transmission (CVT)Reference

TransmissionDyna-VTReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

forward and reverse optionsDyna-VT - infinite F and infinite RReference

Wheel Drive4 WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)167.8 kWReference

PTO (tested)200.9 kWReference

Typeclosed center load sensingReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow99.9 lpmReference

Total flow174.9 lpmReference

Rear TypeIII, IVReference

Rear lift (at ends)12002 kgReference

Rear lift (at 24"/610mm)9678 kgReference

Front HitchIIIReference

Front lift (at ends)4998 kgReference

DrawbarCat. 3Reference

DrawbarCat. 3 Heavy Duty (optional)Reference

DrawbarCat IV (optional)Reference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000E/1000 (1.75)Reference

Rear PTO Type540E/1000 (1.375)Reference

Engine RPM1000@1970Reference

Engine RPM1000E@1605Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed191.6 kWReference

Power at rated PTO speed191.0 kWReference

Dimensions

Wheelbase310 cmReference

Weight10999 kgReference

Front tire420/90R30Reference

Rear tire480/80R46Reference

Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference

Length566 cmReference

Height (cab)338 cmReference

Shipping weight10999 kgReference

Max weight17640 kgReference

Front axle4WDReference

Front axleQuadlink suspendedReference

Bar rear axle109 by 2667 mmReference

Bar rear axle109 by 2997 mmReference

Front tread154 to 225 cmReference

Rear tread147 to 12 cmReference

Rear tread148 to 303 cmReference

Massey Ferguson 8660 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Batteries2Reference

Battery CCA775Reference

Battery volts12Reference

Battery options2Reference

Total cold cranking amps775 CCAReference

Test results

OECD 2497: diesel SCR Dyna-VT 4WDReference

OECD 2560: diesel IEGR Dyna-VT 4WDReference

Diesel SCR Dyna-VT 4WDOctober 2008 - November 2008, Link: OCED Tractor Test 2497 fileReference

PTO performanceReference

Fuel use50.0 l/hourReference

Fuel use47.7 l/hourReference

Fuel use50.3 l/hourReference

Drawbar performanceReference

Fuel use46.6 l/hourReference

Pull at 8.7 KPHReference

Max pull12294 kgReference

Pull at 2.7 KPHReference

Diesel IEGR Dyna-VT 4WDOctober 2009 - March 2010, Link: OCED Tractor Test 2560 fileReference

Fuel use56.0 l/hourReference

Fuel use55.3 l/hourReference

Fuel use55.6 l/hourReference

Pull at 7.6 KPHReference

Max pull12233 kgReference

Pull at 4.1 KPHReference

General

Make & ModelMassey Ferguson (a part of AGCO)Reference

Air cleanerdual dry elementReference

Cruise controlAvailableReference

SCV controlJoystickReference

Drawbar categoryCat. 3, Cat. 3 HD, Cat IVReference

Rear Axle Type299.7 cmReference

Front Axle Type4WD | Quadlink suspendedReference

Country of manufacturerUSAReference

Capacities

Capacity512.6 ciReference

Diesel exhaust fluid (DEF) tank60.6 LReference

Hydraulics

Capacity Valves24 valveReference

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,901 psiReference

Remote Valves4 to 6 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Power

Rated Power265 hpReference

PTO

PTO Power225 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000/1,000E RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typePowerReference

Dimensions & weight

Height Over Cab338.1 cmReference

Overall Length566.9 cmReference

Overall Width255 cmReference

Overall weight10,999.6 kgReference

Wheels & tyres

Rear Wheel Type480/80R46 agsReference

Front Wheel Type420/90R30 agsReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
