Tractor · 2011Unverified

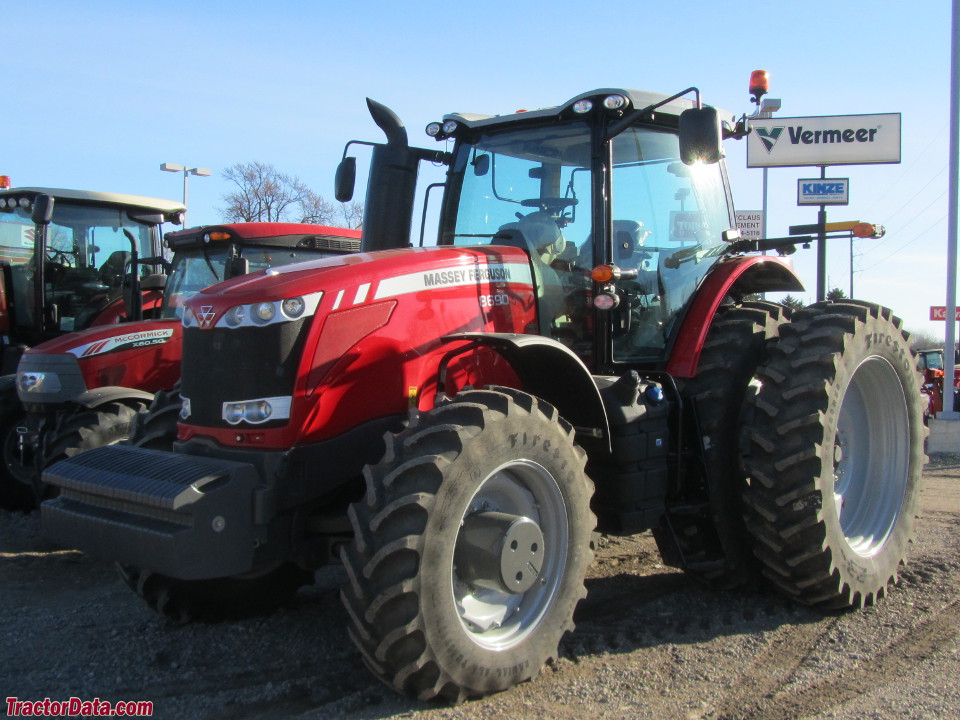

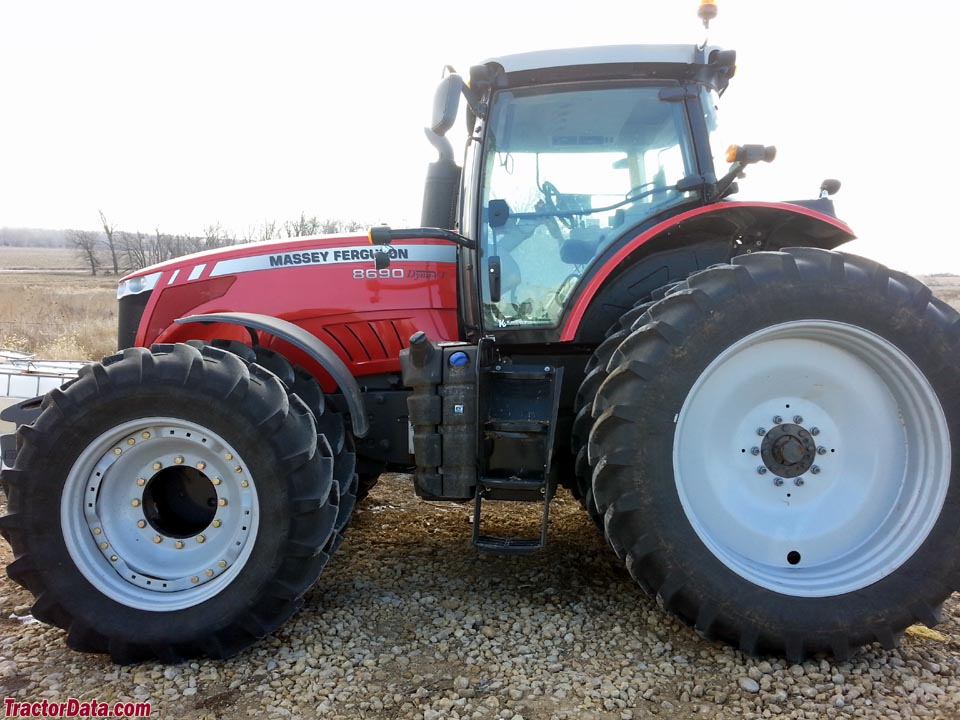

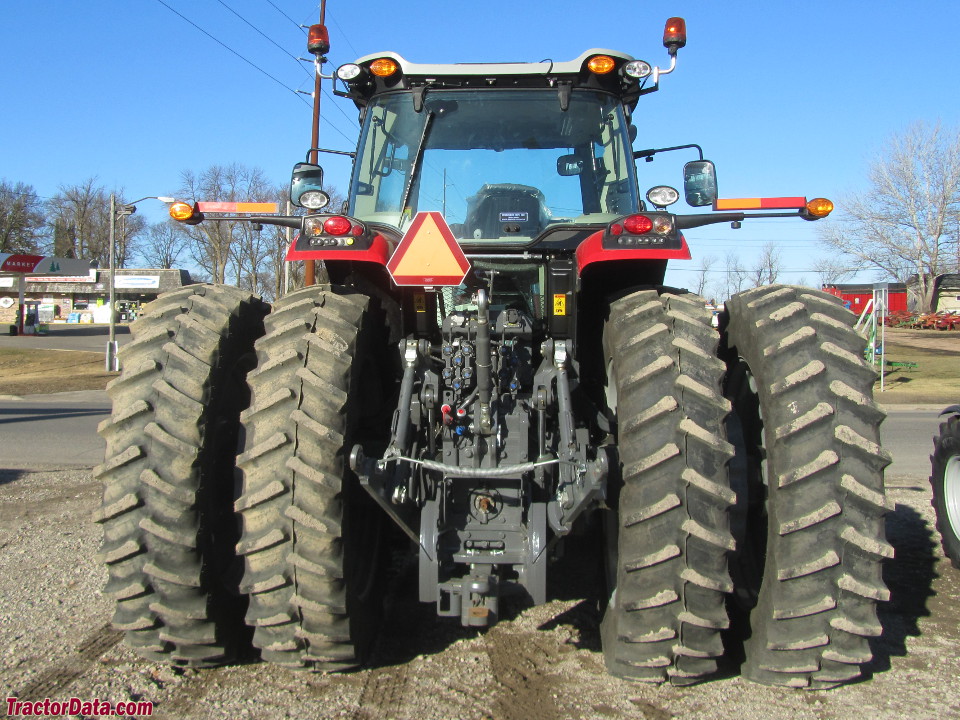

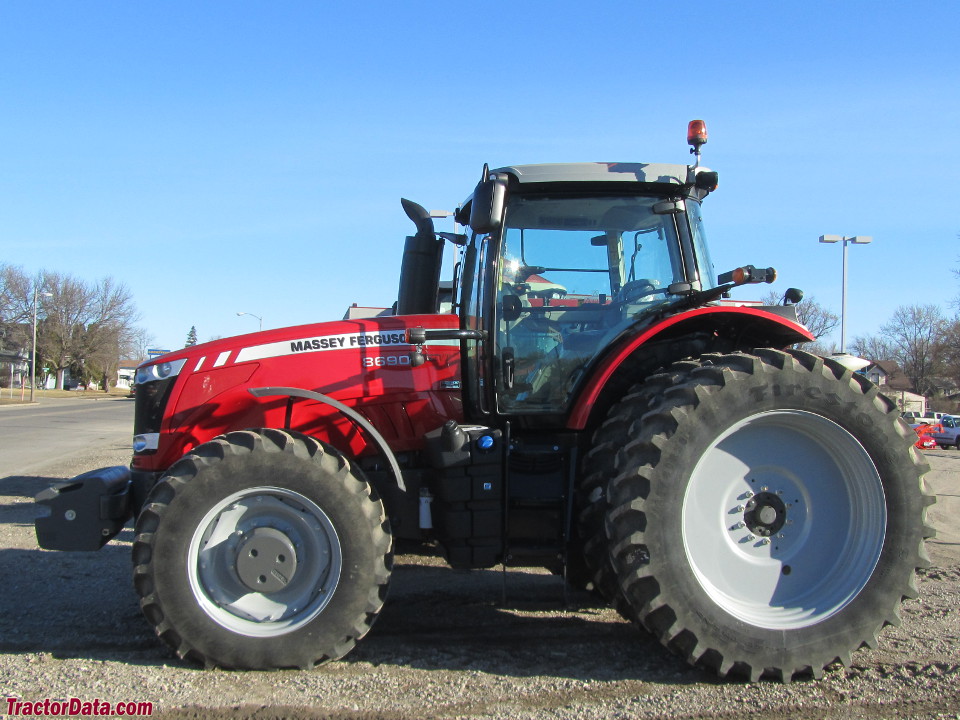

Massey Ferguson 8690
Massey Ferguson 8690 — Row-Crop tractor · 305 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
305 hp
Max power
248.5 kW
Weight
10092 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
FactoriesBeauvais, FranceReference
FactoriesJackson, Minnesota, USAReference
Original price was $315,965 in 2013Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespenumatic (optional)Reference
Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.Reference
Variants
MT685Dsimilar Challenger modelReference
Engine
AGCO POWER 8.4L 6-cyl dieselReference
Fuel tank632.1 LReference
Exhaust fluid (DEF)60.6 LReference
Engine253.5 kWReference
Drawbar (tested)183.2 kWReference
AGCO POWER 84 CTAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power253.5 kWReference
Maximum Power275.9 kWReference
Fuel systemcommon railReference
Cooling systemelectronic viscous fanReference
Air cleanerdual dry elementReference
Pre-heatinggrid heaterReference
Rated RPM2100Reference
Torque1540.4 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power248.5 kWReference
Power at rated engine speed227.7 kWReference
Max power183.2 kWReference
Transmission
continuously-variable transmission (CVT)Reference
TransmissionDyna-VTReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)216.3 kWReference
PTO (tested)248.5 kWReference
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow174.1 lpmReference
SCV flow99.9 lpmReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)9678 kgReference
Front lift4989 kgReference
Rear PTOindependentReference
Rear PTO Type1000E/1000Reference
Rear PTO Type540E/1000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Power at rated PTO speed246.8 kWReference
Dimensions
Wheelbase310 cmReference
Weight10092 kgReference
Front tire420/85R34Reference
Rear tire480/80R50Reference
Ag front420/85R34Reference
Ag rear480/80R50 (duals)Reference
Length566 cmReference
Width255 cmReference
Height (cab)338 cmReference
Shipping weight10092 kgReference
Bar rear axle109 by 2667 mmReference
Bar rear axle109 by 2997 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240 (dual 120A)Reference
Batteries2Reference
Battery CCA775Reference
Battery volts12Reference
Test results
Diesel Dyna-VT 4WDJanuary 2012 - July 2012, Link: OCED Tractor Test 2722 fileReference
PTO performanceReference
Fuel use66.6 l/hourReference
Fuel use63.6 l/hourReference
Drawbar performanceReference
Fuel use62.5 l/hourReference
Pull at 8.92 KPHReference
Max pull11417 kgReference
Pull at 5.26 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
