Tractor · 2014Unverified

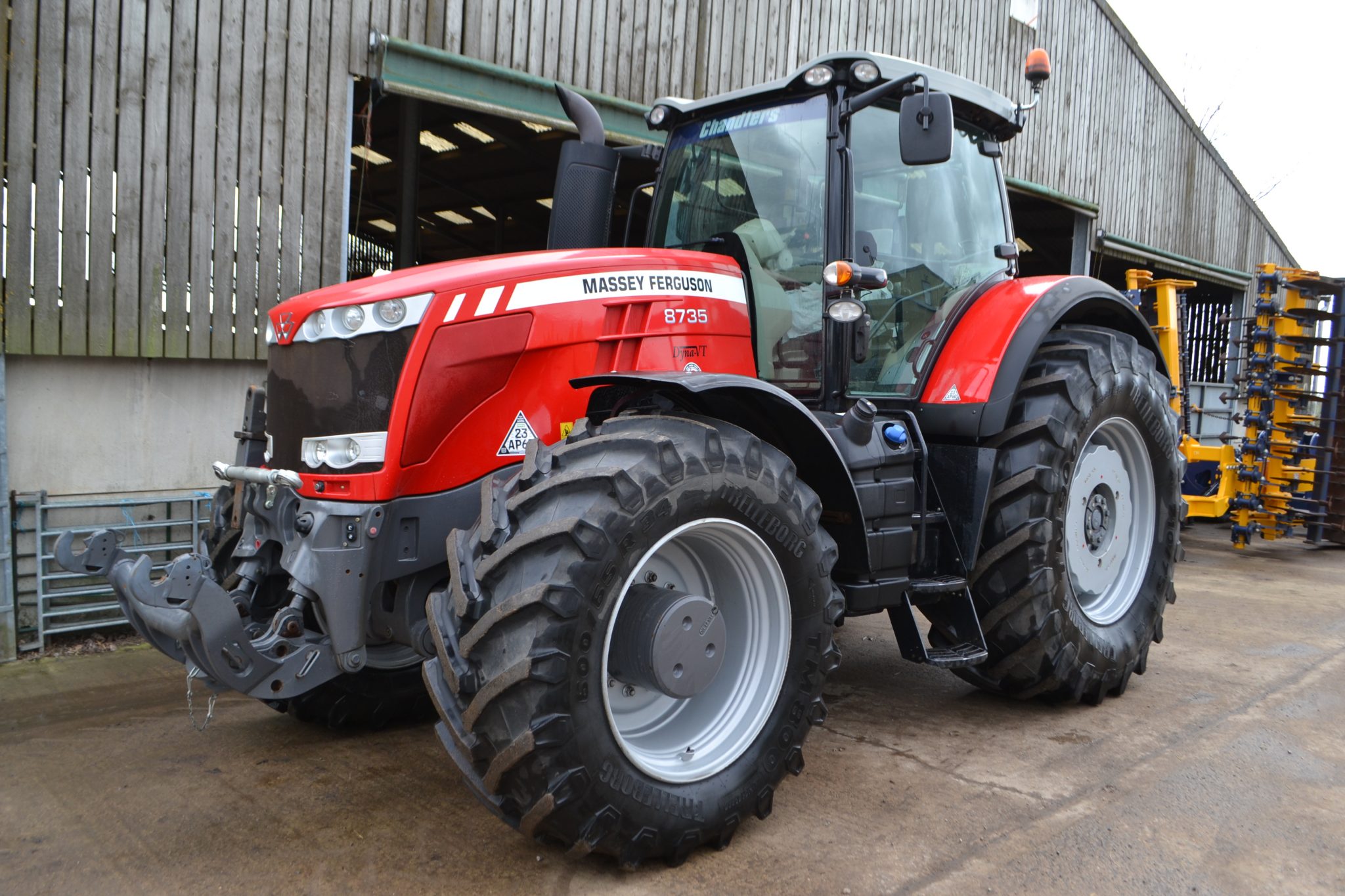

Massey Ferguson 8735

Name: Massey Ferguson 8735
Brand: Massey Ferguson

Massey Ferguson 8735 — Row-Crop tractor · 287 hp. Reference specifications; pending source verification.

The Massey Ferguson 8735 is a tractor model that boasts a rated power of 287 hp, placing it at the powerful end of its class. Manufactured from 2014 to 2017, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a continuously variable transmission. The model has an operating weight of 10800 kg and is suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

287 hp

Max power

234.4 kW

Weight

10800 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

287 hp

Recorded weight

10800 kg

Transmissions

continuously variable transmission (CVT)

Production years

2014-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Built in Jackson, Minnesota, USAReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning. Optional OptiRide Plus hydraulic cab suspension. AgCommand ready; AUTO-GUIDE 3000Reference

Variants

MT675Esimilar Challenger modelReference

Engine

AGCO POWER 8.4L 6-cyl dieselReference

Fuel tank628.3 LReference

Exhaust fluid (DEF)59.8 LReference

Engine238.6 kWReference

Drawbar (tested)192.5 kWReference

AGCO POWERReference

turbocharged with air-to-air intercooler dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power238.6 kWReference

Maximum Power261.0 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power234.4 kWReference

Power at rated engine speed214.0 kWReference

Max power192.5 kWReference

Transmission

continuously variable transmission (CVT)Reference

TransmissionDyna-VTReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)205.1 kWReference

PTO (tested)234.4 kWReference

Typeclosed center load sensing (CCLS)Reference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow204.4 lpmReference

Rear TypeIII/IVNReference

Rear lift (at ends)11999 kgReference

DrawbarCat. 3Reference

DrawbarCat 3 Heavy Duty (optional)Reference

DrawbarCat 4 (optional)Reference

Rear PTOindependentReference

Rear PTO Type1000/1000E (1.75)Reference

Power at rated PTO speed232.9 kWReference

Dimensions

Wheelbase309 cmReference

Weight10800 kgReference

Length555 cmReference

Height (cab)358 cmReference

Shipping weight10800 kgReference

Bar rear axle109 by 2667 mmReference

Bar rear axle109 by 2997 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240 (twin 120A)Reference

Charging volts12Reference

Battery volts12Reference

Test results

Diesel Dyna-VT 4WDJanuary 2015 - April 2015, Link: OCED Tractor Test 2909 fileReference

PTO performanceReference

Fuel use64.3 l/hourReference

Fuel use61.7 l/hourReference

Fuel use64.7 l/hourReference

Drawbar performanceReference

Pull at 10.42KPHReference

Max pull10094 kgReference

Pull at 4.09KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
