Tractor · 2018Unverified

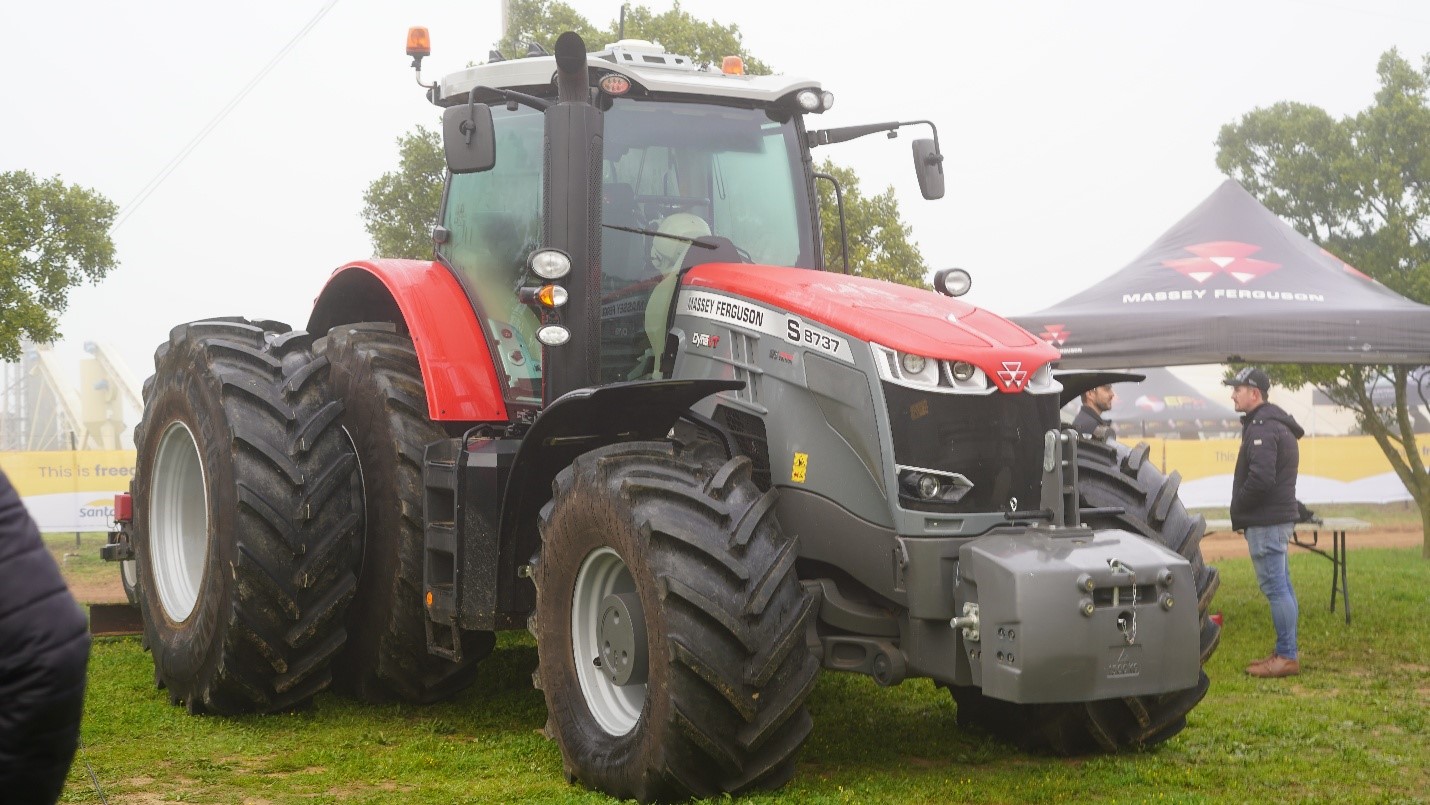

Massey Ferguson 8737S

Name: Massey Ferguson 8737S
Brand: Massey Ferguson

Massey Ferguson 8737S — Row-Crop tractor · 305 hp. Reference specifications; pending source verification.

The Massey Ferguson 8737S is a high-powered tractor with a rating of 305 hp. It was manufactured from 2018 to 2024. This model features a 6-cylinder turbocharged diesel liquid-cooled engine, transmitting power through a four-wheel drive system. It has a listed weight of 10800 kg and is suited for large-scale operations covering areas of approximately 1500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

305 hp

Max power

243.4 kW

Weight

10800 kg

Catalogue coverage

Variants represented

Richest spec table

83 rows

Recorded power

305 hp

Recorded weight

10800 kg

Production years

2018-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

FactoriesJackson, Minnesota, USAReference

FactoriesBeauvais, FranceReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 8.4L 6-cyl dieselReference

Fuel tank629.8 LReference

Exhaust fluid (DEF)60.0 LReference

Engine275.9 kWReference

Drawbar (tested)201.2 kWReference

AGCO PowerReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsStage IVReference

Emission controlselective-catalytic reduction (SCR)Reference

Power275.9 kWReference

Rated RPM1950Reference

Torque1540.4 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil change500 hReference

Max power243.4 kWReference

Power at rated engine speed227.3 kWReference

Max power201.2 kWReference

Transmission

continuously-variable transmissionReference

TransmissionDyna-VTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)238.6 kWReference

PTO (tested)243.4 kWReference

Typeclosed-center load-sensingReference

Pressure200.0 barReference

Rear valves6Reference

Front valves2Reference

Pump flow205.1 lpmReference

Rear TypeIIIReference

Rear TypeIVReference

Rear lift (at ends)11999 kgReference

Front HitchIIIReference

Front lift (at ends)5000 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540E@1577Reference

Engine RPM1000E@1605Reference

Engine RPM1000@1970Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@2036Reference

Power at rated PTO speed234.7 kWReference

Dimensions

Wheelbase310 cmReference

Weight10800 kgReference

Front tire620/75R30Reference

Rear tire650/85R42Reference

Standard tires (ag)Front: 620/75R30. Rear: 650/85R42Reference

Standard tires (ag)Front: 620/75R30. Rear: 710/85R38Reference

Standard tires (ag)Front: 600/65R34. Rear: 710/75R42Reference

Standard tires (ag)Front: 650/60R34. Rear: 900/60R42Reference

Length555 cmReference

Height (cab)351 cmReference

Max weight18000 kgReference

Front axleQuadlink suspensionReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Test results

Diesel Dyna-VT 4WDJanuary 2015 - April 2015, Link: OCED Tractor Test 2910 fileReference

PTO performanceReference

Fuel use66.2 l/hourReference

Fuel use65.9 l/hourReference

Drawbar performanceReference

Pull at 10.39KPHReference

Max pull9922 kgReference

Pull at 2.55KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
