Tractor · 2018Unverified

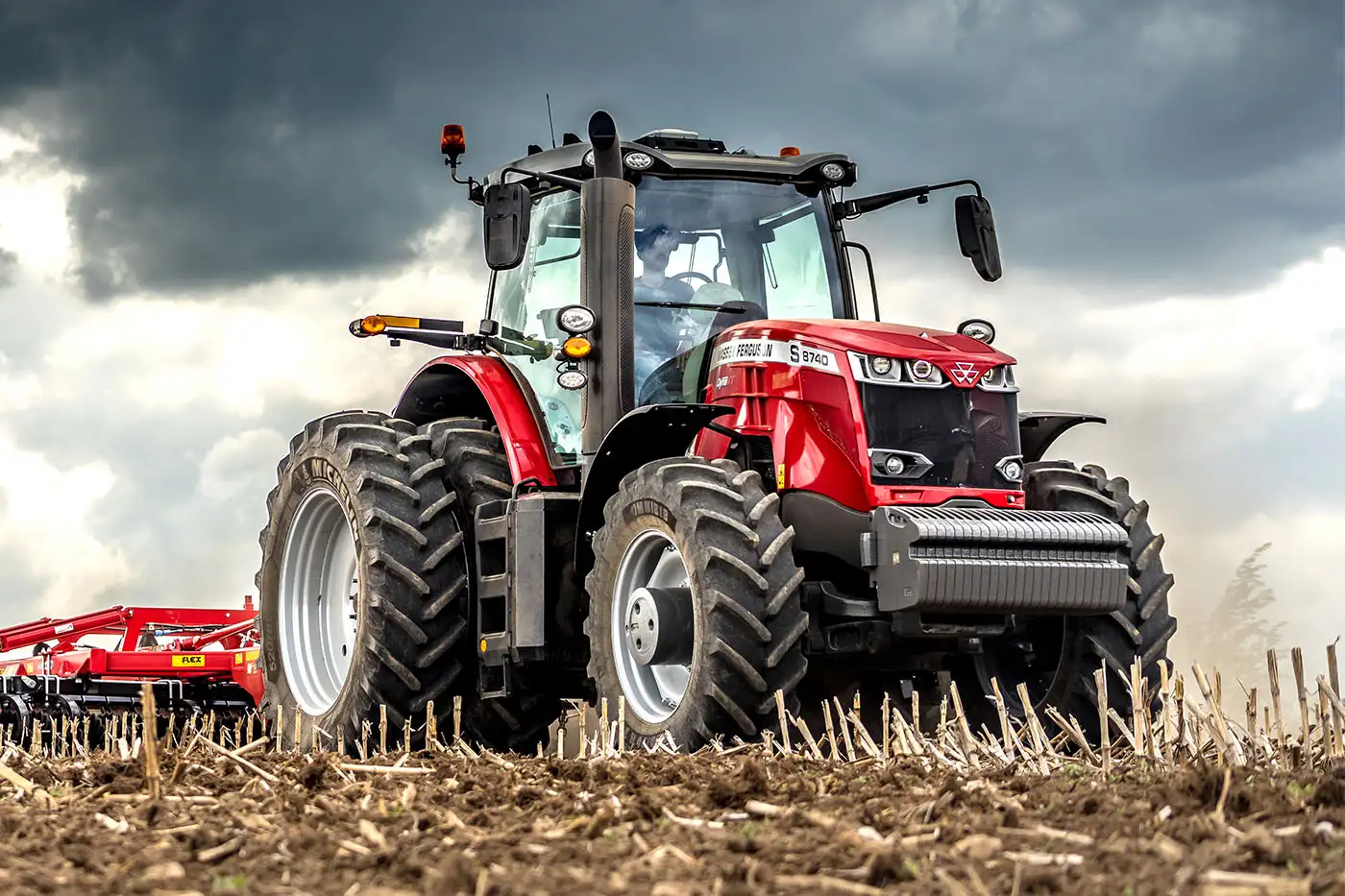

Massey Ferguson 8740S
Massey Ferguson 8740S — Row-Crop tractor · 355 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
355 hp
Weight
10800 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
FactoriesJackson, Minnesota, USAReference
FactoriesBeauvais, FranceReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 8.4L 6-cyl dieselReference
Fuel tank629.8 LReference
Exhaust fluid (DEF)60.0 LReference
Engine298.3 kWReference
AGCO PowerReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
EmissionsStage IVReference
Emission controlselective-catalytic reduction (SCR)Reference
Power298.3 kWReference
Rated RPM1950Reference
Torque1540.4 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil change500 hReference
Transmission
continuously-variable transmissionReference
TransmissionDyna-VTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)264.7 kWReference
Typeclosed-center load-sensingReference
Pressure200.0 barReference
Rear valves6Reference
Front valves2Reference
Pump flow205.1 lpmReference
Rear TypeIIIReference
Rear TypeIVReference
Rear lift (at ends)11999 kgReference
Front HitchIIIReference
Front lift (at ends)5000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540E@1577Reference
Engine RPM1000E@1605Reference
Engine RPM1000@1970Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@2036Reference
Dimensions
Wheelbase310 cmReference
Weight10800 kgReference
Front tire620/75R30Reference
Rear tire650/85R42Reference
Standard tires (ag)Front: 620/75R30. Rear: 650/85R42Reference
Standard tires (ag)Front: 620/75R30. Rear: 710/85R38Reference
Standard tires (ag)Front: 600/65R34. Rear: 710/75R42Reference
Standard tires (ag)Front: 650/60R34. Rear: 900/60R42Reference
Length555 cmReference
Height (cab)351 cmReference
Max weight18000 kgReference
Front axleQuadlink suspensionReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
