Tractor · 2020Unverified

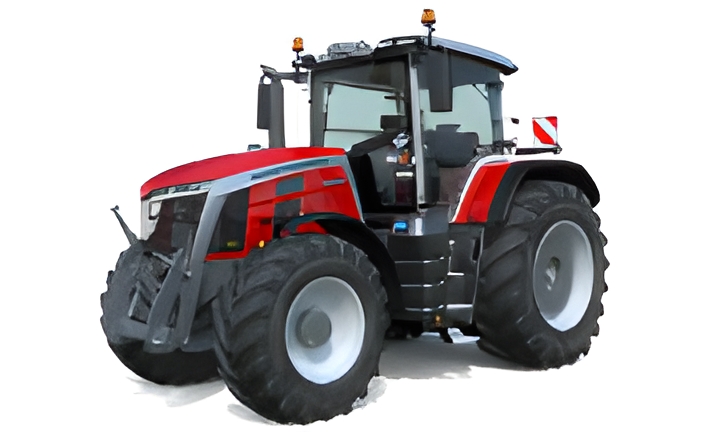

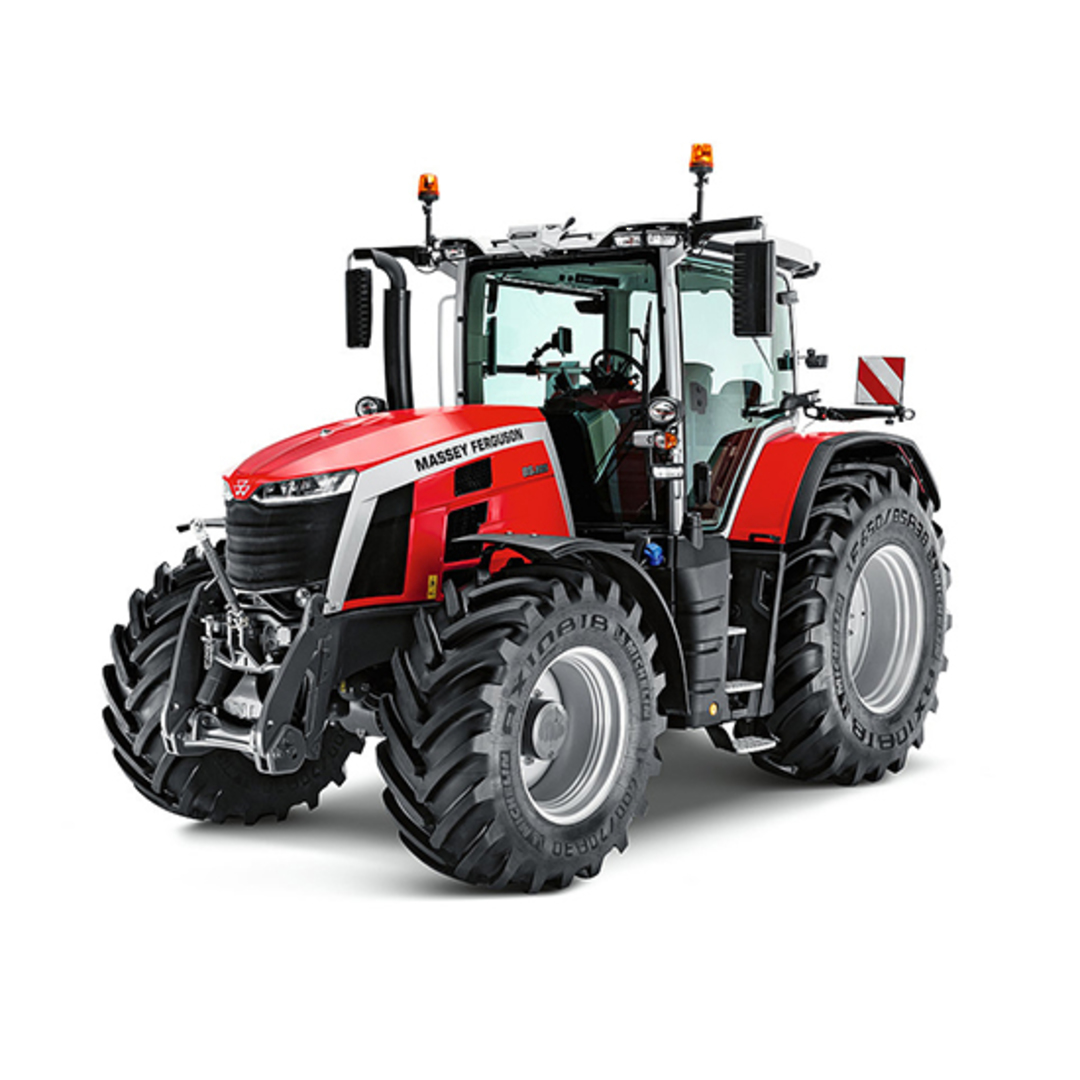

Massey Ferguson 8S.205
Massey Ferguson 8S.205 — 8S Series · 184 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
184 hp
Weight
19180 to 22046 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockautomatic front and rearReference
Power steeringReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 7.4L 6-cyl dieselReference
Fuel tank459.9 LReference
Fuel tank499.6 LReference
Exhaust fluid (DEF)43.1 LReference
Engine151.0 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsStage 5Reference
Power151.0 kWReference
Maximum Power165.5 kWReference
Fuel systemcommon railReference
Rated RPM1850Reference
Torque950.6 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
28-speed seven-speed power shiftReference
continuously-variable transmissionReference
TransmissionDyna-7Reference
Typeseven-speed power shiftReference
Gears28 forward and reverseReference
Seven power shift gears (A-G) in four ranges (1-4).Reference
TransmissionDyna E-PowerReference
Seven power shift gears in four ranges with dual clutches.Reference
TransmissionDyna-VTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)137.0 kWReference
Typeclosed center load-sensingReference
Pressure200.0 barReference
Rear valves5Reference
Front valves2Reference
Pump flow149.9 lpmReference
Pump flow205.1 lpmReference
Rear TypeIIIReference
Controlposition and draft controlReference
Rear lift (at ends)10000 kgReference
Front lift4799 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@1867Reference
Engine RPM540E@1499Reference
Engine RPM1000@1903Reference
Engine RPM1000E@1528Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@1920Reference
Dimensions
Wheelbase305 cmReference
Weight19180 to 22046 poundsReference
Front tire540/65R30Reference
Rear tire650/65R42Reference
Standard tires (ag)Front: 540/65R30. Rear: 650/65R42Reference
Optional tires (ag)Front: 600/70R30. Rear: 650/75R42Reference
Optional tires (ag)Front: 720/55R30. Rear: 900/50R42Reference
Length537 cmReference
Height (cab)339 cmReference
Height (cab)341 cmReference
Shipping8700 kgReference
Operating10000 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity13700 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
