Tractor · 1958Unverified

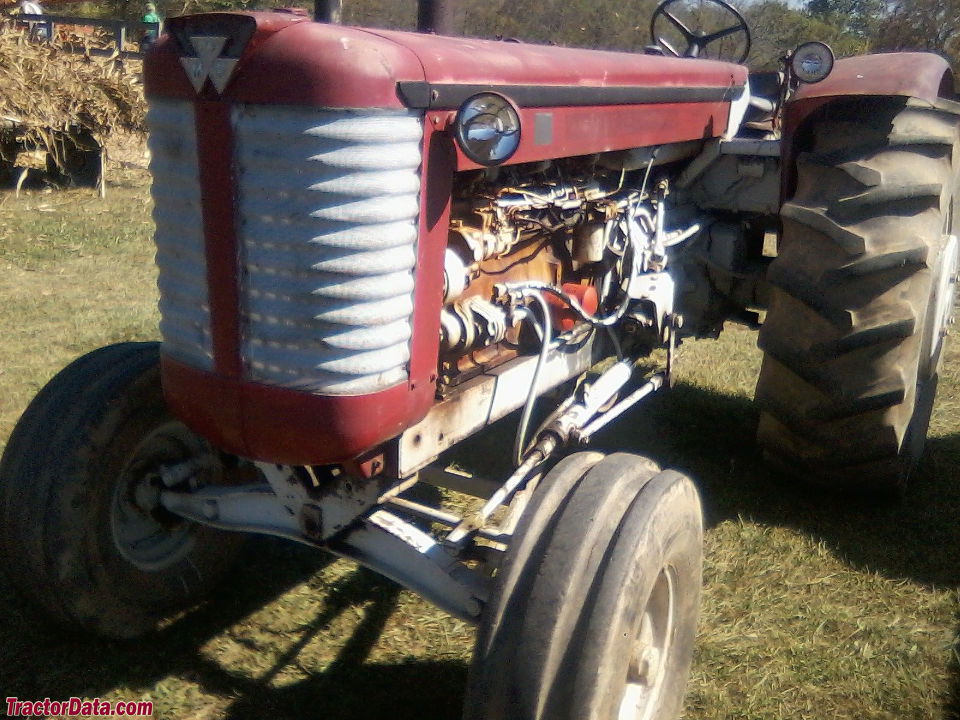

Massey Ferguson 95

Name: Massey Ferguson 95
Brand: Massey Ferguson

Massey Ferguson 95 — Standard-tread tractor · 63 hp. Reference specifications; pending source verification.

The Massey Ferguson 95 is a compact tractor with a rated output of 63 hp, produced from 1958 to 1961. It features a 6-cylinder diesel liquid-cooled engine, paired with a 5-speed gearbox and two-wheel drive. The listed weight of the tractor is 3356 kg, with a capacity for work on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

63 hp

Weight

3356 kg

Catalogue coverage

Variants represented

Richest spec table

83 rows

Recorded power

63 hp

Recorded weight

3356 kg

Transmissions

5-speed gear

Production years

1958-1961

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerMinneapolis-MolineReference

Standard-tread tractorReference

Built in Minneapolis, Minnesota, USAReference

Two-wheel driveReference

Open operator station.Reference

Variants

GBsimilar Minneapolis-Moline modelReference

Engine

Minneapolis-Moline 7.0L 6-cyl dieselReference

Belt (claimed)47.0 kWReference

Minneapolis-MolineReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.0 LReference

Bore/Stroke108 x 127 mmReference

Air cleaneroil bathReference

Compression14.9:1Reference

Rated RPM1300Reference

StarterelectricReference

Starter volts12Reference

Oil capacity13.2 LReference

Coolant capacity45.4 LReference

Intake valve clearance0.254 mmReference

Exhaust valve clearance0.457 mmReference

Fuel TypeDieselReference

No of Cylinders6-cylinderReference

Rated engine speed2,000Reference

Engine torque at rated speed118.1 kgReference

Bore and stroke4.50x4.10 inchesReference

Compression ratio18:1Reference

Cooling systemliquid-cooledReference

Transmission

5-speed gearReference

TypegearReference

Gears5 forward and 1 reverseReference

Oil capacity49.2 LReference

forward and reverse options8 forward and 2 reverseReference

Capacities

Fuel109.8 LReference

Steering0.9 LReference

Fuel tank140.1 LReference

PTO & Hydraulics

Hydraulic system6.6 LReference

Typeopen centerReference

Capacity6.6 LReference

Steering cap.0.9 LReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase244 cmReference

Weight3356 kgReference

Front tire7.50-18Reference

Rear tire15-34Reference

Ag front7.50-18Reference

Ag rear15-34Reference

Length379 cmReference

Width205 cmReference

Height184 cmReference

Clearance (front axle)37 cmReference

Clearance (rear axle)39 cmReference

Front tread137 cmReference

Rear tread162 cmReference

95 Serial Numbers

195815600001 (diesel)Reference

195915600451 (diesel)Reference

Final15601100 (diesel)Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemgeneratorReference

Charging amps25Reference

Batteries3Reference

Battery volts12Reference

Speeds

With 15-34 rear tires.Reference

General

Make & ModelMassey FergusonReference

Country of manufacturerOption 1: Row-Crop tractor\\nOption 2: São Paulo, BrazilReference

Power

Rated Power91 hpReference

Steering & brakes

Brakesmechanical discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Maximum operating pressure2,500 psiReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,439.9 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Height232.9 cmReference

Overall Length382 cmReference

Overall Width209 cmReference

Overall weight3,716 kgReference

Wheels & tyres

Rear wheel tread range18.4Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differential4WDReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
